TE31L-MBFA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

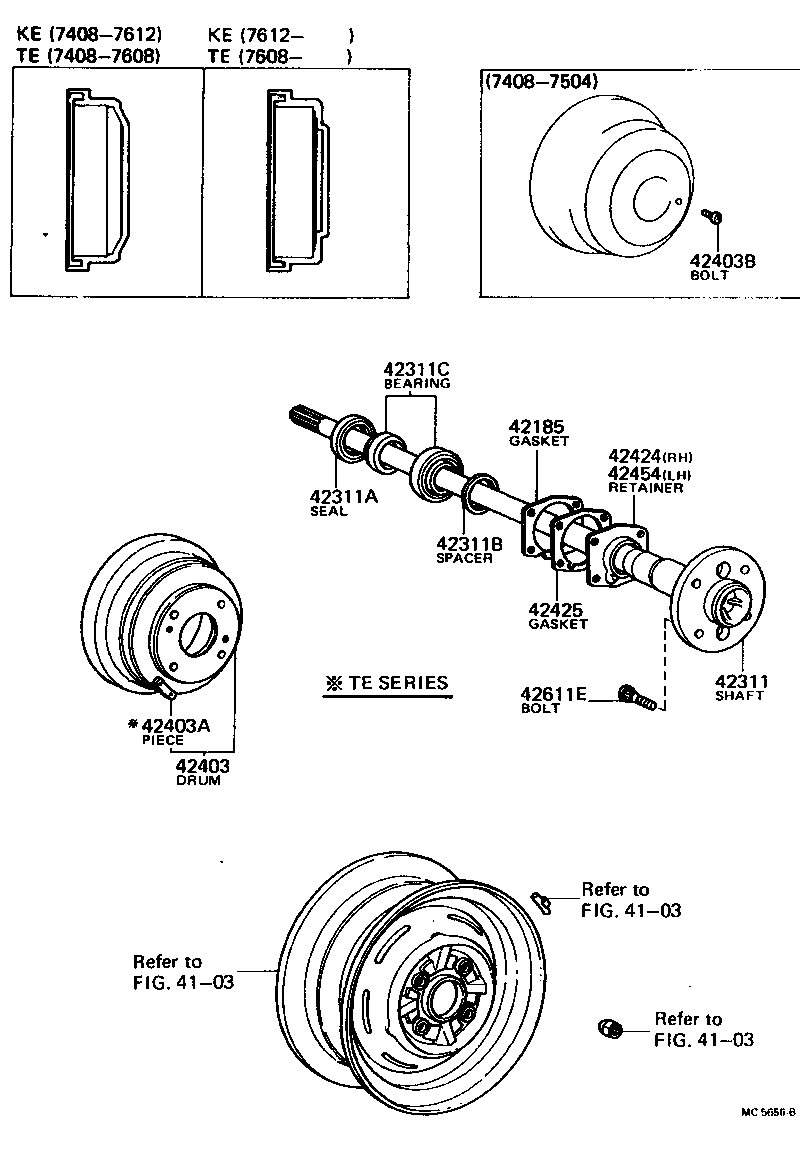

Click highlighted areas on diagram

diagram 4103 4103 4103 42185 42311 42311A 42311B 42311C 42403 42403A 42403B 42424 42425 42454 42611E
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42185-12010

KE3#,50,TE51..DLX,SPL,STD

T=0.3

 2
42185-12010

KE3#,50,TE31,37,51..DLX,SPL,STD

T=0.3

 2
42185-13010

TE3#..DLX,SPL,STD

T=0.3

 2
42185-22010

KE3#,50,TE31,37,51..DLX,SPL,STD

T=0.6

 2
42185-13020

TE31,38,51..DLX,SPL

T=0.6

 2
42185-13020

TE3#..DLX,SPL,STD

T=0.6

 2
42185-12010

KE30,50

T=0.3

 2
42185-22010

KE3#,50,TE51..DLX,SPL,STD

T=0.6

 2
42185-13010

TE31,38,51..DLX,SPL

T=0.3

 2
42185-22010

KE30,50

T=0.6

 2
42311 - SHAFT, REAR AXLE
42311-12120

TE31,38,51..DLX,SPL

 2
42311-12051

KE30,50

 2
42311-12050

KE3#,50

 2
42311-20042

TE3#,51..DLX,SPL,STD

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-42055

KE3#,50,TE3#,51..DLX,SPL,STD

 2
42311B - SPACER (FOR REAR AXLE SHAFT BEARING)
90560-30152

KE3#,50,TE3#,51..DLX,SPL,STD

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
04421-12010

KE30,50

 2
04421-12010

KE3#,50,TE51..DLX,SPL,STD

 2
04421-13010

TE3#..DLX,SPL,STD

 2
04421-13010

TE31,38,51..DLX,SPL

 2
04421-12010

KE3#,50,TE31,37,51..DLX,SPL,STD

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-20040

TE3#,51

 2
42431-12040

TE3#,51

 2
42431-12021

KE3#,50

 2
42431-12050

KE3#,50

 2
42431-14060

TE3#,51

 2
42431-22050

TE3#,51

 2
42431-12060

TE3#,51

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01143

TE3#,51

40G.

 2
90937-01144

TE3#,51

50G.

 2
90937-01145

TE3#,51

10G,60G.

 2
90937-01141

TE3#,51

20G.

 2
90937-01121

TE3#,51

50G,50G.

 2
90937-01122

TE3#,51

60G,60G.

 2
90937-01142

TE3#,51

30G.

 2
90937-01120

TE3#,51

40G,40G.

 2
90937-01117

TE3#,51

10G,10G.

 2
90937-01118

TE3#,51

20G,20G.

 2
90937-01196

TE3#,51

50G,50G.

 2
90937-01195

TE3#,51

40G,40G.

 2
90937-01197

TE3#,51

60G,60G.

 2
90937-01119

TE3#,51

30G,30G.

 2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10007

TE3#

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-20010

KE3#,50,TE3#,51..DLX,SPL,STD

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-20010

KE3#,50,TE31,37,51..DLX,SPL,STD

 2
42425-20010

KE3#,50,TE51..DLX,SPL,STD

 2
42425-20010

KE30,50

 2
42425-13010

TE3#..DLX,SPL,STD

 2
42425-13010

TE31,38,51..DLX,SPL

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-20010

KE3#,50,TE3#,51..DLX,SPL,STD

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02032

KE3#,50,TE3#,51..DLX,SPL,STD

12-1.5PX38-25.5

 8
90942-02035

KE3#,50,TE3#,51

12-1.5PX36-23.5

 8
Linked diagrams
4103
