TE31L-MBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
2TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7701-7908)TE3#,51

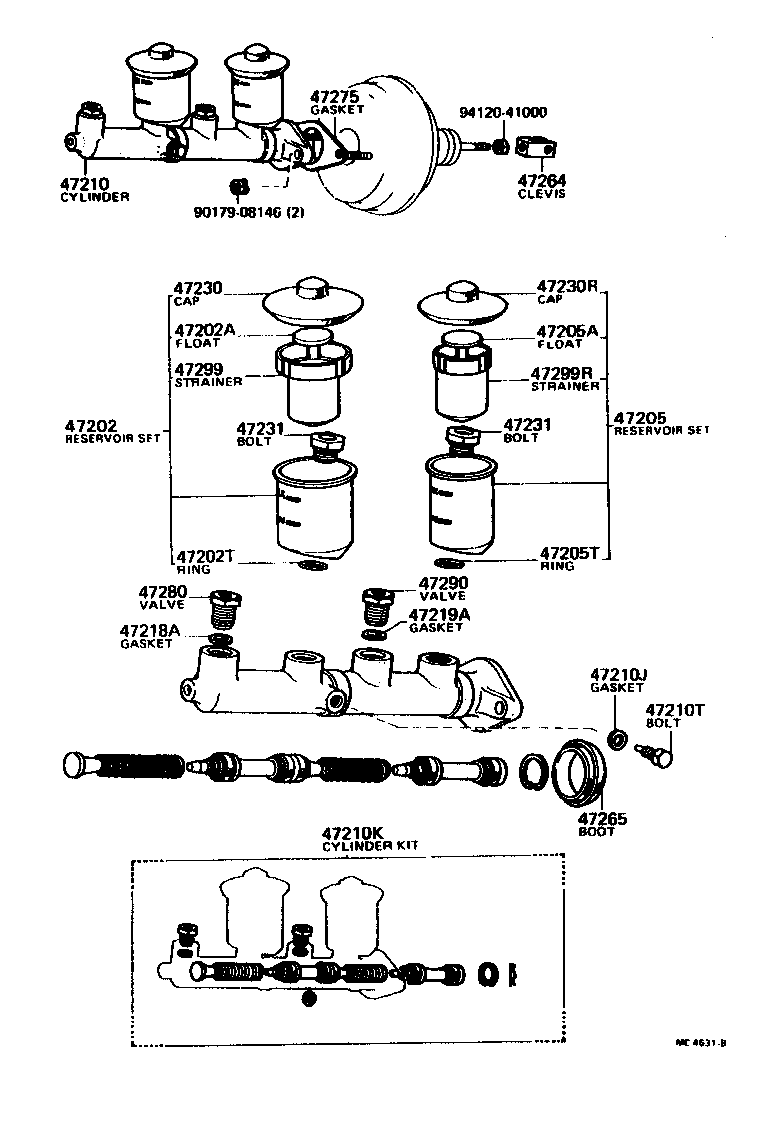

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12011 |
KE3#,50 |
1 | ||
| 47202-20150 |
TE3#,51 |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) | ||||
| 90562-18151 |
TE3#,51 |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20160 |
TE3#,51 |
1 | ||
| 47202-20121 |
KE3#,50 |
1 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47205T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2) | ||||
| 90562-18151 |
TE3#,51 |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-12080 |
TE3# |
1 | ||
| 47201-12200 |
TE3#,51 |
1 | ||
| 47201-12172 |
TE3#,51 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KE3#,50,TE3#,51 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-12050 |
TE3#,51 |
1 | ||
| 04493-12051 |
TE3#,51 |
1 | ||
| 04493-12041 |
KE3#,50 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
KE30,50,TE3#,51 |
1 | ||
| 90109-06011 |
KE3#,50,TE3#,51 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
KE3#,50,TE3#,51 |
1 | ||
| 90430-16242 |
KE3#,TE3#,51 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KE3#,50,TE3#,51 |
1 | ||
| 90430-16242 |
KE3#,TE3#,51 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20030 |
KE3#,50,TE3#,51 |
1 | ||
| 47230-20030 |
TE3#,51 |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
KE3#,50,TE3#,51 |
1 | ||
| 47230-20040 |
TE3#,51 |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-20010 |
TE3#,51 |
2 | ||
| 47231-30010 |
KE3#,50 |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-20010 |
TE3#,51 |
2 | ||
| 47231-30010 |
KE3#,50 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
KE3#,50,TE3#,51 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KE3#,50,TE3#,51 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-22010 |
TE3# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-20020 |
KE3#,TE3#,51 |
1 | ||
| 47280-14010 |
TE3#,51 |
1 | ||
| 47280-30030 |
KE3#,50 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
KE3#,50 |
1 | ||
| 47280-20020 |
KE3#,TE3#,51 |
1 | ||
| 47280-14010 |
TE3#,51 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
