TE31L-MBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

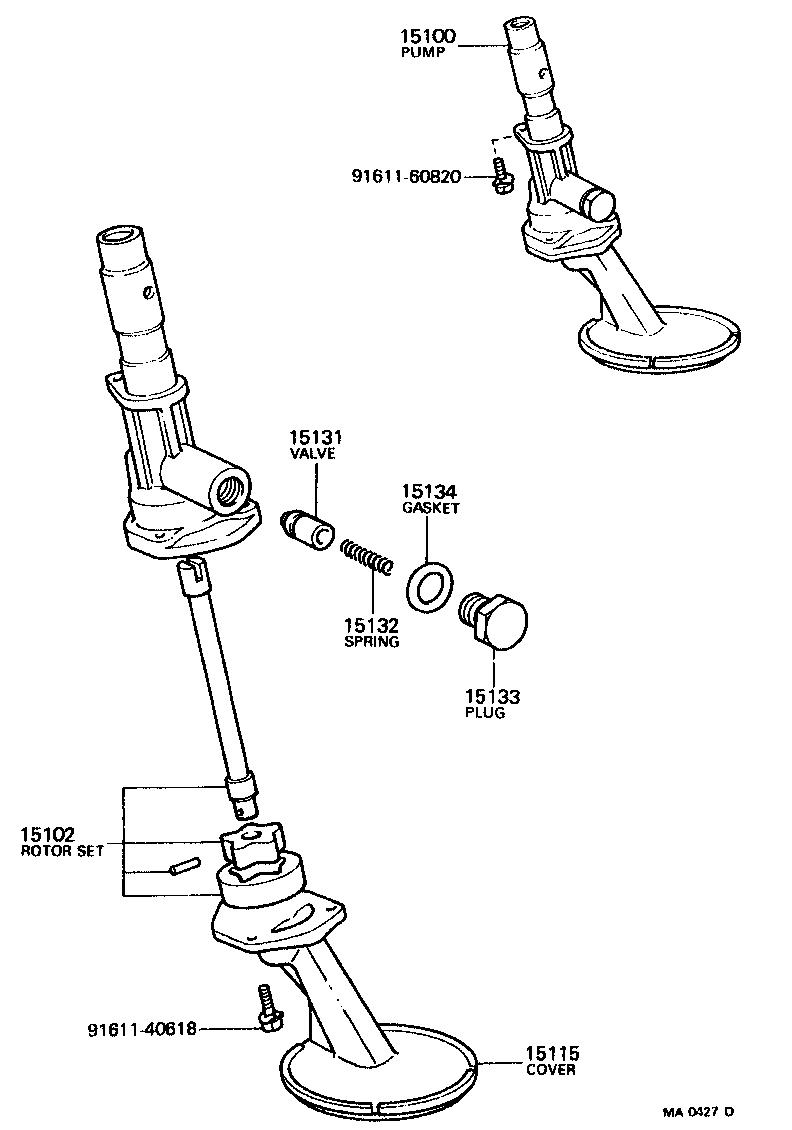

Click highlighted areas on diagram

diagram 15100 15102 15115 15131 15132 15133 15134 9161140618 9161160820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-25020

2TC..TE3#,51

 1
15102 - ROTOR SET, OIL PUMP
15102-25010

2TC..TE3#,51

 1
15115 - COVER, OIL PUMP
15012-25020

2TC..TE3#,51

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

2TC..TE3#,51

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

2TC..TE3#,51

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

2TC..TE3#,51

 1
15133-41030

2TC..TE3#,51

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

2TC..TE3#,51

 1
Common parts
91611-40618
91611-60820
