TE31L-KRK (1977)

Toyota Corolla

Production Aug 1977 - May 1978
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

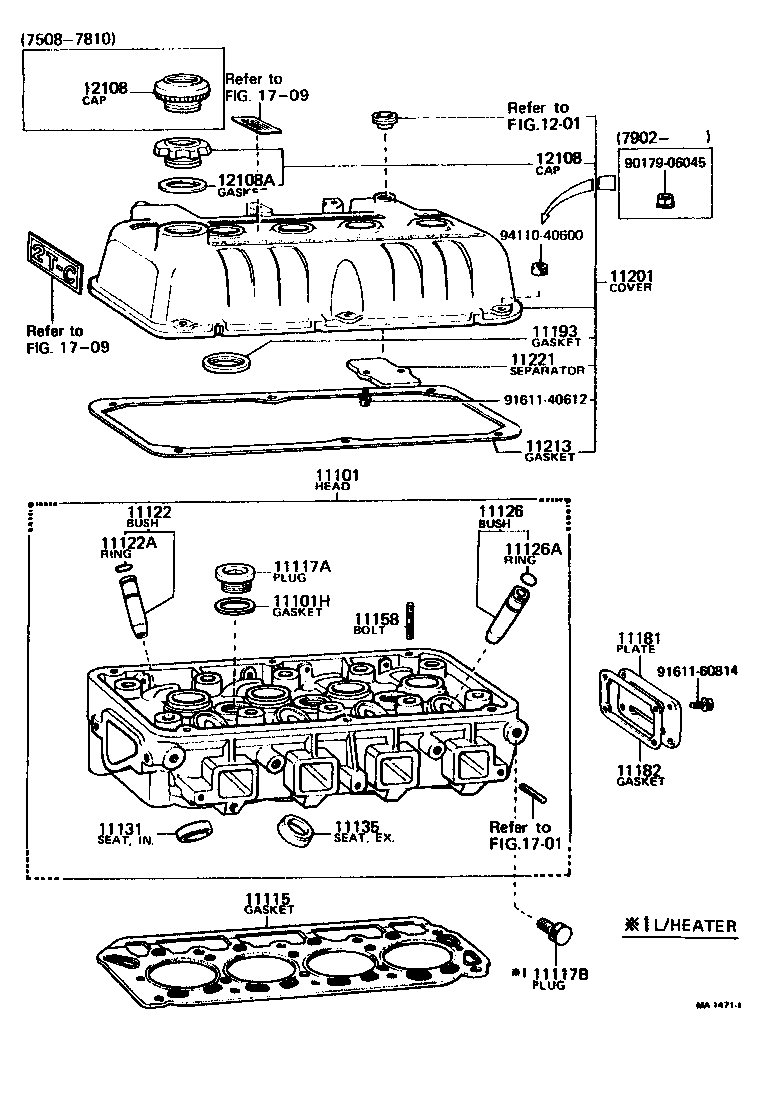

Click highlighted areas on diagram

diagram 11101 11101H 11115 11117A 11117B 11122 11122A 11126 11126A 11131 11135 11158 11181 11182 11193 11201 11213 11221 1201 12108 12108 12108A 1701 1709 1709 9017906045 9161140612 9161160814 9411040600
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29135

2TC..TE3#

 1
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-24246

2TC..TE3#,51

OD=34,ID=24.5

 3
11115 - GASKET, CYLINDER HEAD
11115-26021

2TC..TE3#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-24090

2TC..TE3#,51

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53007

2TC..TE3#,51

L/HEATER

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-25021

2TC..TE3#,51

STD

 4
11123-25021

2TC..TE3#,51

O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

2TC..TE3#,51

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-25021

2TC..TE3#,51

STD

 4
11127-25021

2TC..TE3#,51

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

2TC..TE3#,51

 4
11131 - SEAT, INTAKE VALVE
11131-25010

2TC..TE3#,51

STD

 4
11132-25010

2TC..TE3#,51

O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-25011

2TC..TE3#,51

STD

 4
11136-25011

2TC..TE3#,51

O/S 0.03

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-40618

2TC..TE3#,51

L=27,S=9&9

 6
11181 - PLATE, CYLINDER HEAD, REAR
11181-25010

2TC..TE3#,51

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-25010

2TC..TE3#,51

 1
11193 - GASKET, SPARK PLUG TUBE
11193-25011

2TC..TE3#,51

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29037

2TC..TE3#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-25010

2TC..TE3#,51

 1
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-25010

2TC..TE3#,51

 2
12108 - CAP SUB-ASSY, OIL FILLER
12181-12903

2TC..TE3#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12903

2TC..TE3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2TC..TE3#

 1
Common parts
90179-06045
91611-40612
91611-60814
94110-40600
Linked diagrams
1201
1701
1709
