TE31L-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

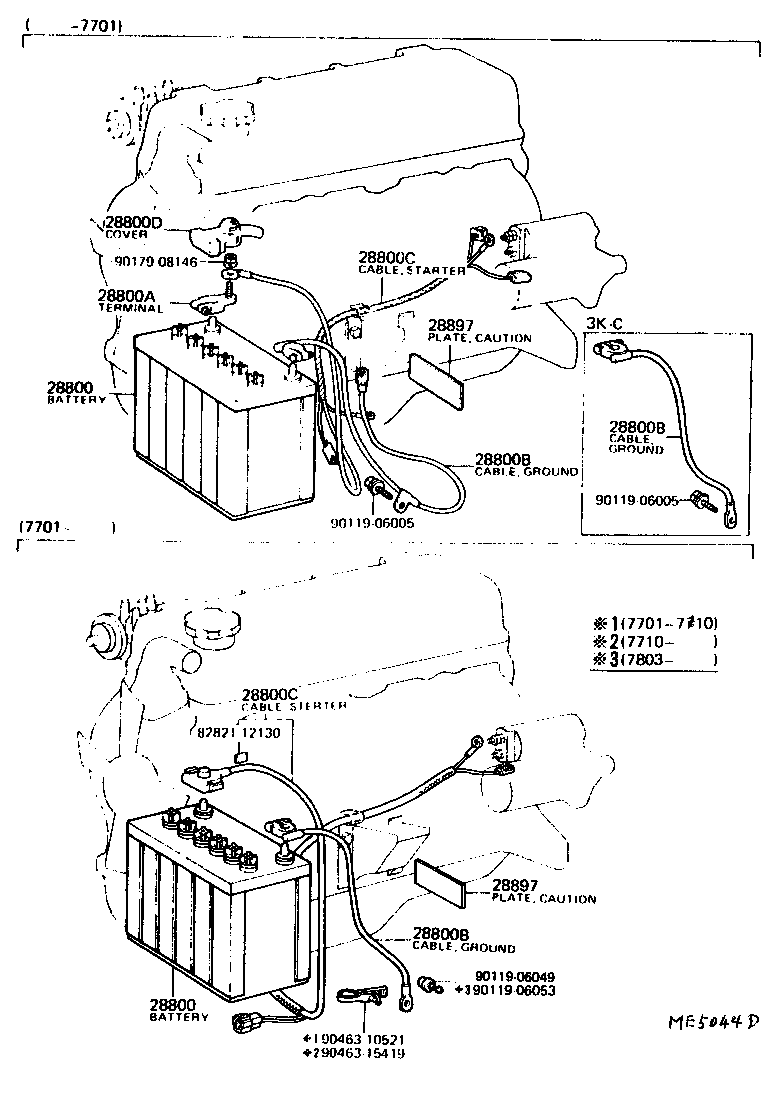

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800B 28800B 28800B 28800C 28800C 28800D 28897 28897 8282112130 9011906005 9011906005 9011906049 9011906053 9017908146 9046310521 9046315419
Part # Description Qty Price
28800 - BATTERY
28800-31031

2TC..TE3#,51

32C24L,N40L

 1
28800-30131

3KC,2TC..KE3#,50,TE3#,51

55D26R,N50ZL

 1
28800-26010

2TC..TE3#,51

N50L

 1
28800-31031

2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD)

32C24L,N40L

 1
28800 - BATTERY
28800-31031

2TC..TE3#,51

32C24L,N40L

 1
28800-30131

3KC,2TC..KE3#,50,TE3#,51

55D26R,N50ZL

 1
28800-26010

2TC..TE3#,51

N50L

 1
28800-31031

2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD)

32C24L,N40L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05009

3KC,2TC..KE3#,TE3#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02098

2TC..TE3#,51

 1
90982-02098

2TC..TE3#,51

 1
28800B - CABLE, BATTERY TO GROUND
90982-02098

2TC..TE3#,51

 1
90982-02098

2TC..TE3#,51

 1
28800B - CABLE, BATTERY TO GROUND
90982-02098

2TC..TE3#,51

 1
90982-02098

2TC..TE3#,51

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-12060

2TC..TE3#,51

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-12060

2TC..TE3#,51

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12030

3KC,2TC..KE3#,TE3#

 1
28897 - PLATE, BATTERY CAUTION
28897-38010

3KC,2TC..KE30,50,TE3#,51..CND

FOR N50ZL,CANADA PACK

 1
28897 - PLATE, BATTERY CAUTION
28897-38010

3KC,2TC..KE30,50,TE3#,51..CND

FOR N50ZL,CANADA PACK

 1
Common parts
82821-12130
90119-06005
90119-06049
90119-06053
90179-08146
90463-10521
90463-15419
