TE31L-KDFK (1977)
Toyota Corolla
Production
Aug 1977
-
Aug 1979
Engine
2TC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)4D

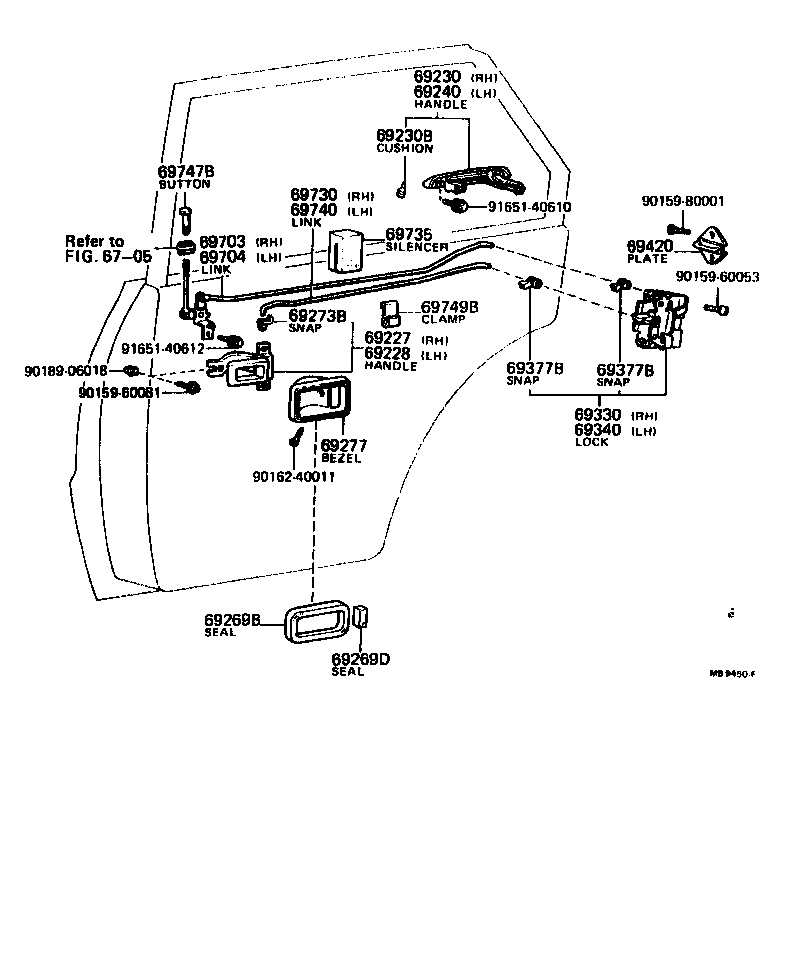

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69207-10010 |
KE30,TE31,38..4D |
1 | ||
| 69205-1204004 |
KE30,TE31,38..4D BLUE,BLUE |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69208-10010 |
KE30,TE31,38..4D |
1 | ||
| 69206-1204004 |
KE30,TE31,38..4D BLUE,BLUE |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12030 |
KE30,TE31,38..4D |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
KE30,TE31,38..4D |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12030 |
KE30,TE31,38..4D |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69276-10012 |
KE30,TE31,38..4D |
2 | ||
| 69276-1001204 |
KE30,TE31,38..4D BLUE,BLUE |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-12040 |
KE30,TE31,38..4D |
1 | ||
| 69330-20040 |
KE30,TE31,38..4D |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-20040 |
KE30,TE31,38..4D |
1 | ||
| 69340-12040 |
KE30,TE31,38..4D |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
KE30,TE31,38..4D |
4 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69377-30020 |
KE30,TE31,38..4D |
4 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20050 |
KE30,TE31,38..4D |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69730-12030 |
KE30,TE31,38..4D |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69740-12030 |
KE30,TE31,38..4D |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-12010 |
KE30,TE31,38..4D |
1 | ||
| 69735 - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-12011 |
KE30,TE31,38..4D |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-12020 |
KE30,TE31,38..4D |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69747-30012 |
KE30,TE31,38..4D |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12010 |
KE30,TE31,38..4D |
2 | ||
| Common parts | ||||
| 90159-60053 | ||||
| 90159-60081 | ||||
| 90159-80001 | ||||
| 90162-40011 | ||||
| 90189-06018 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 6705 | ||||
