TE31L-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)KE30,TE31..4D

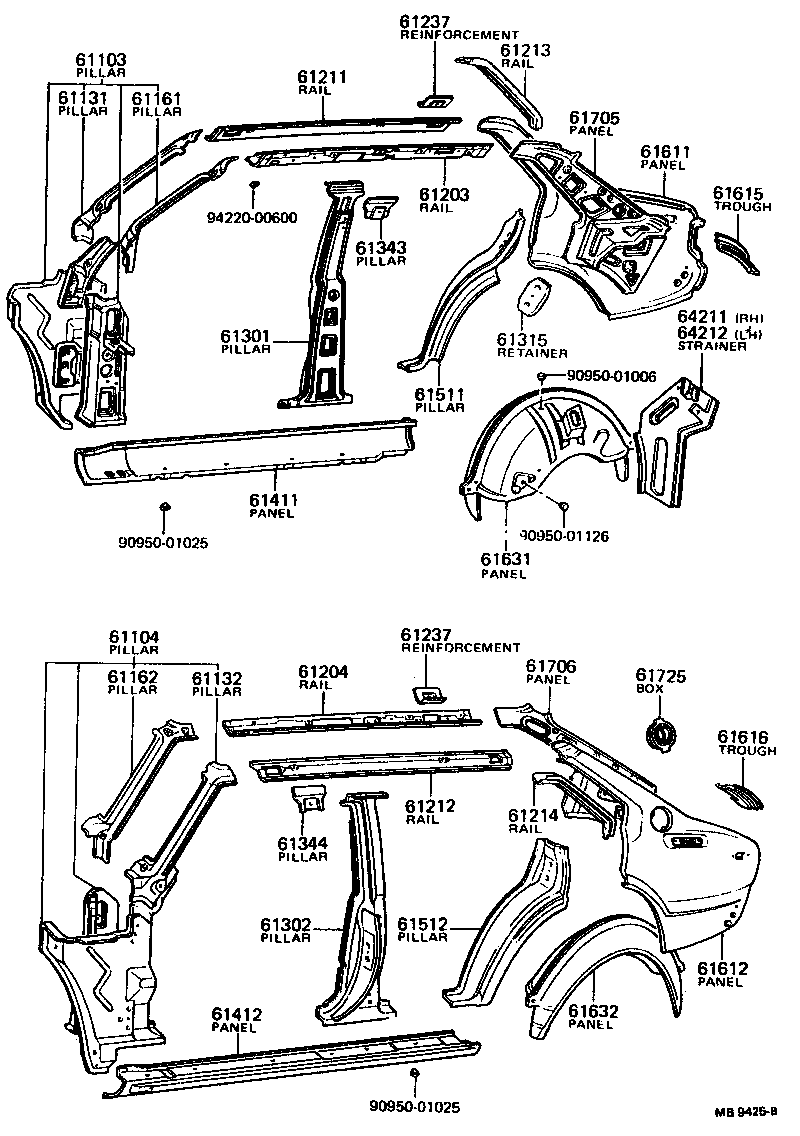

Click highlighted areas on diagram

diagram 61103 61104 61131 61132 61161 61162 61203 61204 61211 61212 61213 61214 61237 61237 61301 61302 61315 61343 61344 61411 61412 61511 61512 61611 61612 61615 61616 61631 61632 61705 61706 61725 64211 64212 9095001006 9095001025 9095001025 9095001126 9422000600
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-12110

KE30,TE31,38

 1
61103-12180

KE30,TE31,38

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61104-12190

KE30,TE31,38

 1
61022-12130

KE30,TE31,38

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-12070

KE30,TE31,38

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-12070

KE30,TE31,38

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-12050

KE30,TE31,38

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-12050

KE30,TE31,38

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61231-12090

KE30,TE31..4D

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61232-12090

KE30,TE31..4D

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-12070

KE30,TE31..4D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-12070

KE30,TE31..4D

 1
61213 - RAIL, ROOF SIDE, OUTER REAR RH
61531-12010

KE30,TE31..4D

 1
61214 - RAIL, ROOF SIDE, OUTER REAR LH
61532-12010

KE30,TE31..4D

 1
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
61237-12051

KE30,TE31..4D

RH.

 1
61238-12041

KE30,TE31..4D

LH.

 1
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
61237-12051

KE30,TE31..4D

RH.

 1
61238-12041

KE30,TE31..4D

LH.

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-12030

KE30,TE31,38..4D

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-12050

KE30,TE31,38..4D

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-20010

KE30,TE31,38

 2
61343 - PILLAR, CENTER BODY, INNER UPPER RH
61341-12030

KE30,TE31..4D

 1
61344 - PILLAR, CENTER BODY, INNER UPPER LH
61342-12030

KE30,TE31..4D

 1
61411 - PANEL, ROCKER, OUTER RH
61411-12902

KE30,TE31,38..4D

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12902

KE30,TE31,38..4D

 1
61511 - PILLAR, QUARTER LOCK, RH
61511-12030

KE30,TE31,38..4D

 1
61512 - PILLAR, QUARTER LOCK, LH
61512-12030

KE30,TE31,38..4D

 1
61611 - PANEL, QUARTER, RH
61611-12150

KE30,TE31..4D

 1
61612 - PANEL, QUARTER, LH
61612-12150

KE30,TE31..4D

 1
61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-12010

KE30,TE31

 1
61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-12010

KE30,TE31

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-12900

KE3#,TE31,37..DLX,STD

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61632-12900

KE3#,TE31,37..DLX,STD

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-12140

KE30,TE31..4D

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-12140

KE30,TE31..4D

 1
61725 - BOX, FUEL INLET
61725-12060

KE30,TE31

 1
64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH
64211-12010

KE3#,TE31,37,51..CP,HT,SED

 1
64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH
64212-12010

KE3#,TE31,37,51..CP,HT,SED

 1
Common parts
90950-01006
90950-01025
90950-01126
94220-00600
