TE31L-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7908)TE3#,51..MTM

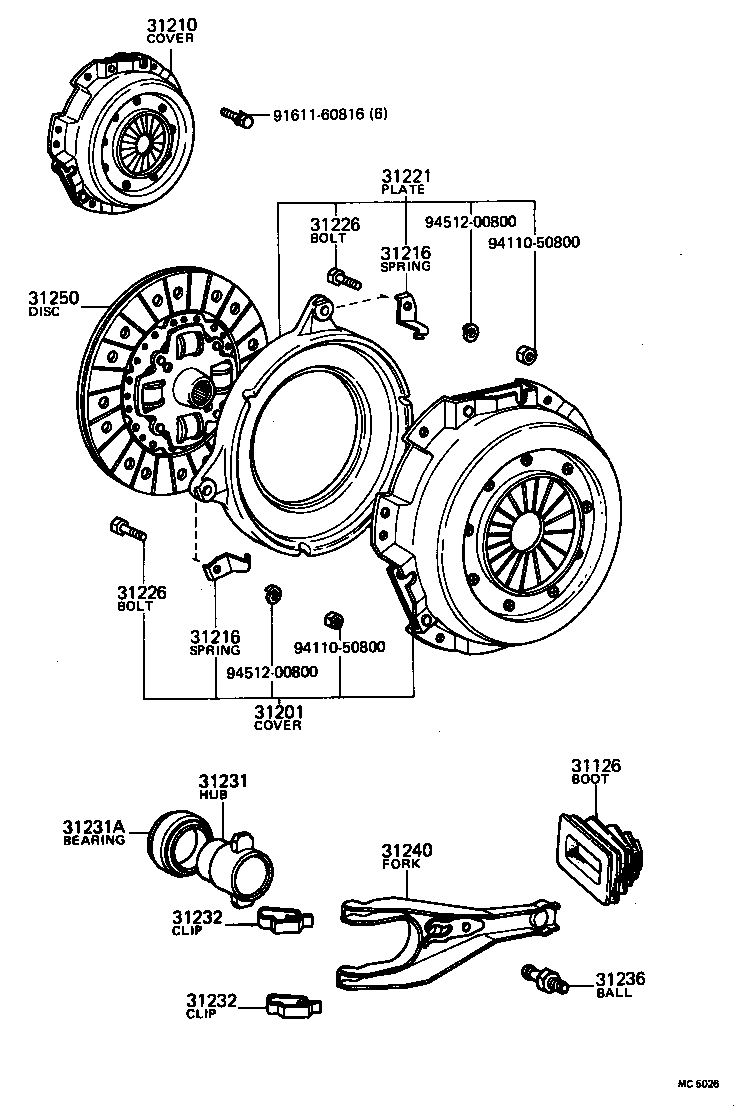

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31232 31236 31240 31250 9161160816 9411050800 9411050800 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20040

TE3#,51..MTM

 1
31126-22040

TE3#,51..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29057

TE3#,51..MTM

 1
31201-29056

TE3#,51..MTM

 1
31201-29058

TE3#,51..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-14013

TE3#,51..MTM

 1
31210-14012

TE3#,51..MTM

 1
31210-14080

TE3#,51..MTM

 1
31216 - SPRING, CLUTCH RETRACTING
31216-20020

TE3#,51..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-20020

TE3#,51..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-19015

TE3#,51..MTM

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

TE3#,51..MTM

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

TE3#,51..MTM

 3
31231 - HUB, CLUTCH RELEASE BEARING
31231-14030

TE3#,51..MTM

 1
31231-14011

TE3#,51..MTM

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-38084

TE3#,51..MTM

 1
90363-40001

TE3#,51..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

TE3#,51..MTM

 2
31232-22010

TE3#,51..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

TE3#,51..MTM

 2
31232-22010

TE3#,51..MTM

 2
31236 - BALL, RELEASE FORK
31236-20020

TE3#,51..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20040

TE3#,51..MTM

 1
31204-22030

TE3#,51..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-14010

TE3#,51..MTM

 1
31250-14090

TE3#,51..MTM

 1
Common parts
91611-60816
94110-50800
94512-00800
