TE31L-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

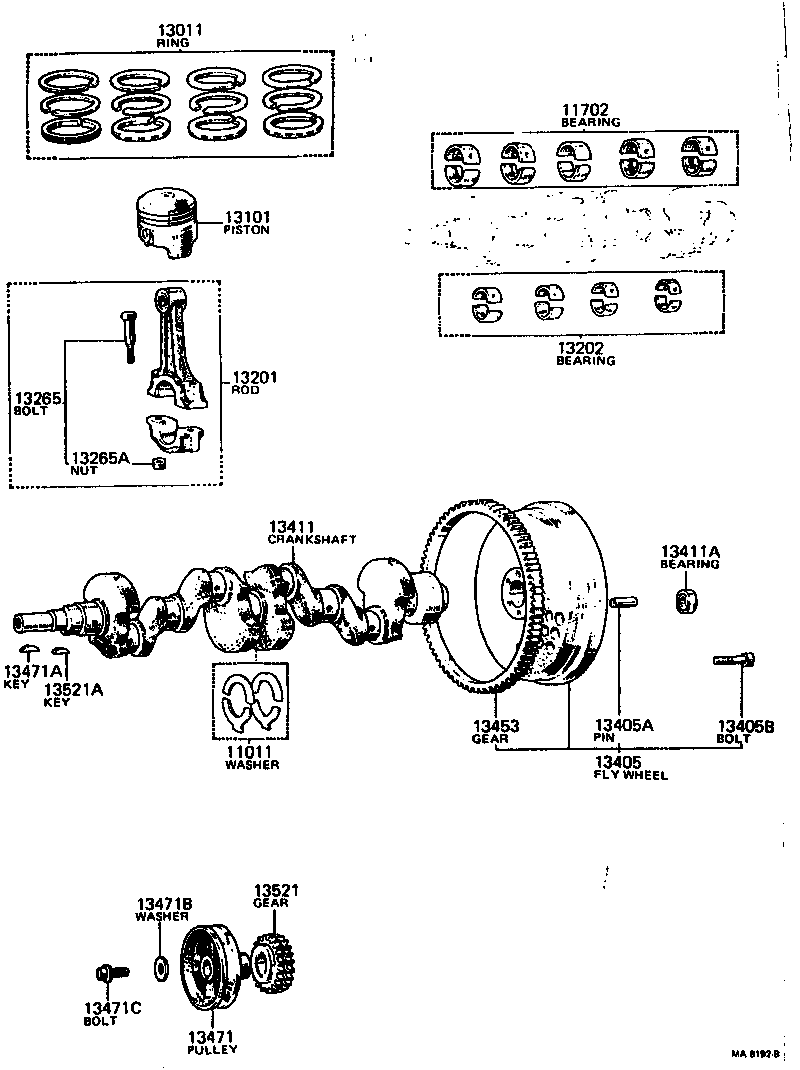

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13471 13471A 13471B 13471C 13521 13521A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

2TC..TE3#,51

STD,STD

 1
11012-25010

2TC..TE3#,51

O/S 0.125

 1
11013-25010

2TC..TE3#,51

O/S 0.25

 1
11702 - BEARING SET, CRANKSHAFT
11703-25013

2TC..TE3#,51

U/S 0.05

 1
11706-25013

2TC..TE3#

U/S 0.75

 1
11705-25013

2TC..TE3#,51

U/S 0.50

 1
11704-25013

2TC..TE3#,51

U/S 0.25

 1
11702-25013

2TC..TE3#,51

STD

 1
13011 - RING SET, PISTON
13015-26041

2TC..TE3#

O/S 1.00

 1
13011-26041

2TC..TE3#

STD

 1
13014-26041

2TC..TE3#

O/S 0.75

 1
13012-26041

2TC..TE3#

O/S 0.25

 1
13014-28011

2TC..TE3#,51

O/S 0.75

 1
13011-28011

2TC..TE3#,51

STD

 1
13013-28030

2TC..TE3#,51

O/S 0.50

 1
13015-28011

2TC..TE3#,51

O/S 1.00

 1
13013-28011

2TC..TE3#,51

O/S 0.50

 1
13011-28030

2TC..TE3#,51

STD

 1
13015-28030

2TC..TE3#,51

O/S 1.00

 1
13013-26041

2TC..TE3#

O/S 0.50

 1
13014-28030

2TC..TE3#,51

O/S 0.75

 1
13101 - PISTON SUB-ASSY, W/PIN
13105-26020

2TC..TE3#

O/S 1.00

 4
13101-26020

2TC..TE3#

STD

 4
13103-26020

2TC..TE3#

O/S 0.50

 4
13105-26030

2TC..TE3#,51

O/S 1.00

 4
13104-26030

2TC..TE3#,51

O/S 0.75

 4
13101-26030

2TC..TE3#,51

STD

 4
13103-26031

2TC..TE3#,51

O/S 0.50

 4
13103-26030

2TC..TE3#,51

O/S 0.50

 4
13104-26031

2TC..TE3#,51

O/S 0.75

 4
13105-26031

2TC..TE3#,51

O/S 1.00

 4
13101-26031

2TC..TE3#,51

STD

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-25010

2TC..TE3#,51

 4
13202 - BEARING SET, CONNECTING ROD
13203-25010

2TC..TE3#,51

U/S 0.05

 1
13206-25010

2TC..TE3#

U/S 0.75

 1
13205-25010

2TC..TE3#,51

U/S 0.50

 1
13204-25010

2TC..TE3#,51

U/S 0.25

 1
13202-25010

2TC..TE3#,51

STD

 1
13265 - BOLT, CONNECTING ROD
13265-29025

2TC..TE3#,51

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2TC..TE3#,51

 8
13405 - FLYWHEEL SUB-ASSY
13405-29036

2TC..TE3#..MTM

N=115

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2TC..TE3#,51..MTM

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

2TC..TE3#,51..MTM

 6
13411 - CRANKSHAFT
13411-25012

2TC..TE3#,51

 1
13411-25010

2TC..TE3#,51

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97123-06001

2TC..TE3#,51..MTM

6001 ZZ C3

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

2TC..TE3#,51..MTM

N=115

 1
13471 - PULLEY, CRANKSHAFT
13471-25021

2TC..TE3#,51

 1
13471-27020

2TC..TE3#,51

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2TC..TE3#,51

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13003

2TC..TE3#,51

 1
90209-13059

2TC..TE3#,51

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12057

2TC..TE3#

 1
90105-12050

2TC..TE3#,51

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

2TC..TE3#,51

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2TC..TE3#,51

 1
