TE31L-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

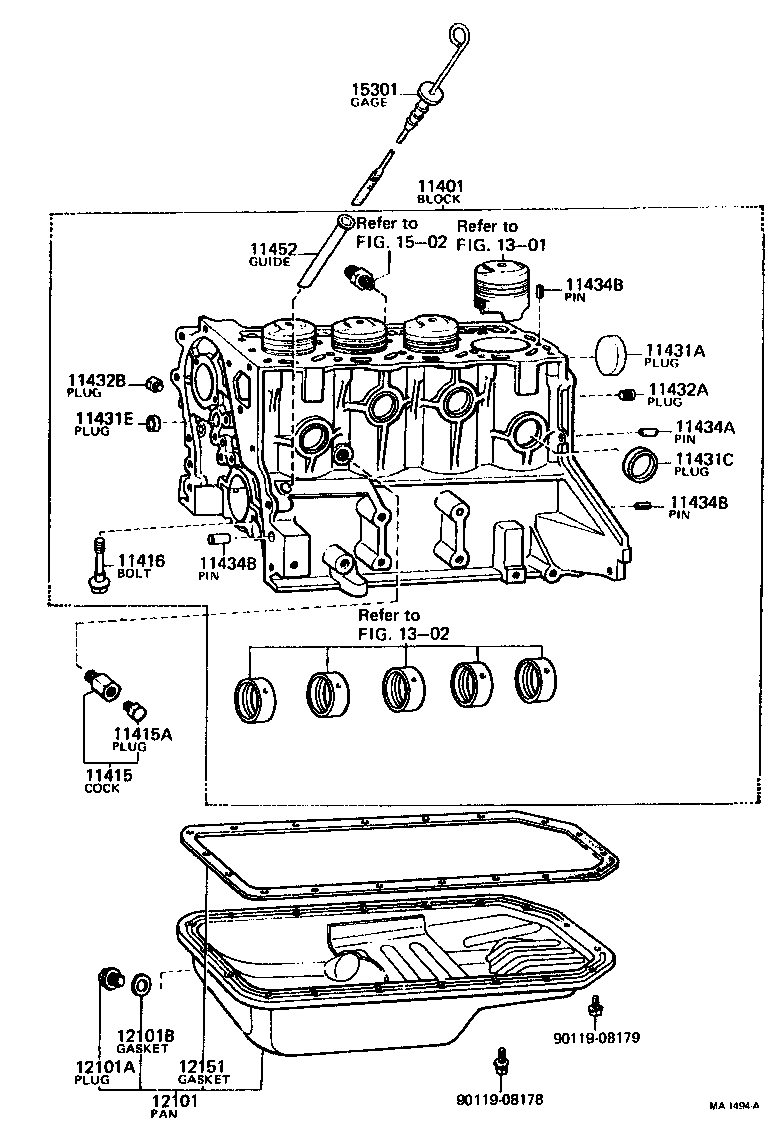

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431C 11431E 11432A 11432B 11434A 11434B 11434B 11434B 11452 12101 12101A 12101B 12151 1301 1302 1502 15301 9011908178 9011908179
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29086

2TC..TE3#

 1
11401-29215

2TC..TE3#,51..CND

 1
11401-29216

2TC..TE3#,51

 1
11401-29216

2TC..TE3#,51..CND

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

2TC..TE3#,51

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

2TC..TE3#,51

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

2TC..TE3#,51

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-50015

2TC..TE3#

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-35014

2TC..TE3#

OD=35

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-01800

2TC..TE3#,51

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

2TC..TE3#,51

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

2TC..TE3#,51

L=18,OD=10

 1
90345-51005

2TC..TE3#,51

L=18,OD=10

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10113

2TC..TE3#,51

L=22,OD=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2TC..TE3#,51

L=18,OD=8,L=18,OD=8

 6
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2TC..TE3#,51

L=18,OD=8,L=18,OD=8

 6
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-08120

2TC..TE3#,51

L=18,OD=8,L=18,OD=8

 6
11452 - GUIDE, OIL LEVEL GAGE
11452-40010

2TC..TE3#,51

 1
12101 - PAN SUB-ASSY, OIL
12101-29055

2TC..TE3#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

2TC..TE3#,51

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

2TC..TE3#,51

 1
12151 - GASKET, OIL PAN
12151-25010

2TC..TE3#,51

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-25011

2TC..TE3#,51

 1
15301-28011

2TC..TE3#,51

 1
Common parts
90119-08178
90119-08179
Linked diagrams
1301
1302
1502
