TE31L-KDFA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7512-7908)2TC

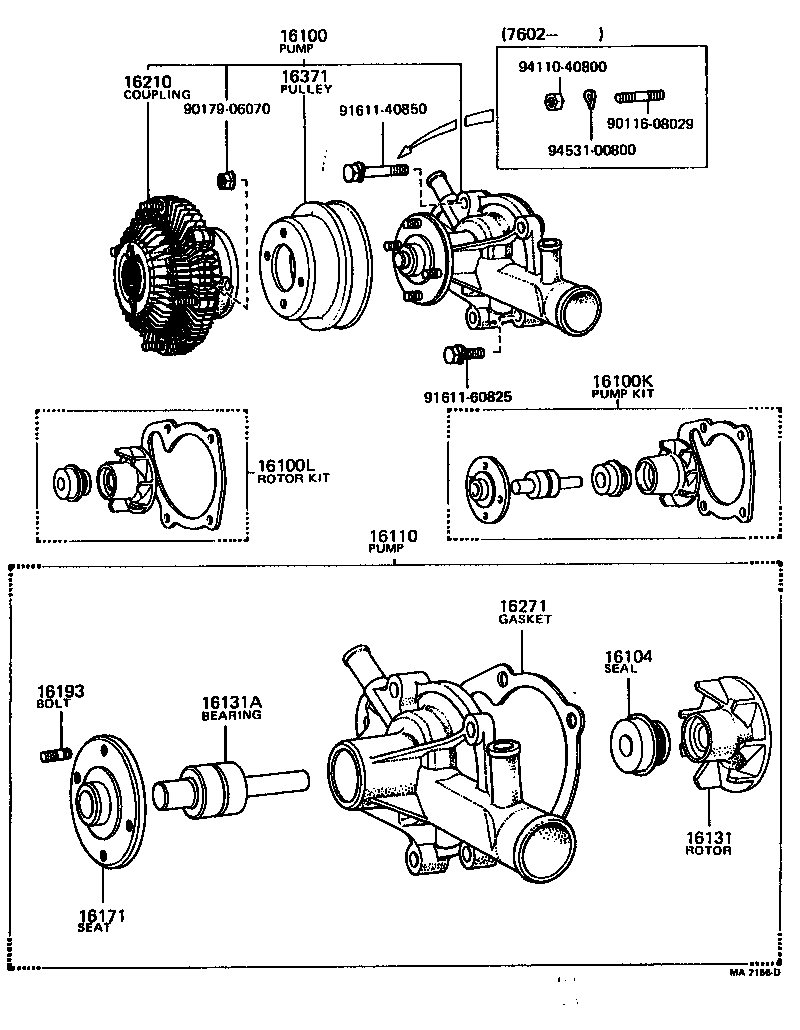

Click highlighted areas on diagram

diagram 16100 16100K 16100L 16104 16110 16131 16131A 16171 16193 16210 16271 16371 9011608029 9017906070 9161140850 9161160825 9411040800 9453100800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-25012

2TC..TE3#

 1
16100-26021

2TC..TE3#,51

 1
16100-28020

2TC..TE3#,51

 1
16100-26023

2TC..TE3#,51

 1
16100-26022

2TC..TE3#,51

 1
16100-26020

2TC..TE3#,51

 1
16100K - PUMP KIT, WATER
04161-28010

2TC..TE3#,51

 1
16100L - ROTOR KIT, WATER PUMP
04162-25011

2TC..TE3#

 1
04162-28010

2TC..TE3#,51

 1
04162-25012

2TC..TE3#,51

 1
16104 - SEAL SET, WATER PUMP
16104-41110

2TC..TE3#,51

 1
16104-22010

2TC..TE3#

 1
16104-41110

2TC..TE3#,51

 1
16104-22010

2TC..TE3#

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-26021

2TC..TE3#,51

 1
16110-26020

2TC..TE3#,51

 1
16110-28010

2TC..TE3#,51

 1
16131 - ROTOR, WATER PUMP
16131-25012

2TC..TE3#,51

 1
16131-26010

2TC..TE3#,51

 1
16131-25011

2TC..TE3#

 1
16131A - BEARING, WATER PUMP
90369-30035

2TC..TE3#

 1
90369-30063

2TC..TE3#,51

 1
16140-38011

2TC..TE3#,51

WPB16101ARS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-31030

2TC..TE3#

 1
16171-26021

2TC..TE3#,51

 1
16171-38021

2TC..TE3#,51

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90116-06008

2TC..TE3#,51

 4
16193-33030

2TC..TE3#,51

 4
16210 - COUPLING ASSY, FLUID
16210-26021

2TC..TE3#,51

 1
16210-28020

2TC..TE3#,51

 1
16210-26020

2TC..TE3#,51

 1
16271 - GASKET, WATER PUMP
16129-25011

2TC..TE3#,51

 1
16129-25010

2TC..TE3#,51

 1
16371 - PULLEY, FAN
16371-25020

2TC..TE3#

W/COOLER

 1
16173-28010

2TC..TE3#,51

 1
16173-26021

2TC..TE3#,51

 1
16173-26020

2TC..TE3#,51

 1
16371-25010

2TC..TE3#

 1
Common parts
90116-08029
90179-06070
91611-40850
91611-60825
94110-40800
94531-00800

(7408-7512)2TC

Click highlighted areas on diagram

diagram 16100 16100L 16104 16131 16131A 16171 16271 16371 9161140830
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-25012

2TC..TE3#

 1
16100-26021

2TC..TE3#,51

 1
16100-28020

2TC..TE3#,51

 1
16100-26023

2TC..TE3#,51

 1
16100-26022

2TC..TE3#,51

 1
16100-26020

2TC..TE3#,51

 1
16100L - ROTOR KIT, WATER PUMP
04162-25011

2TC..TE3#

 1
04162-28010

2TC..TE3#,51

 1
04162-25012

2TC..TE3#,51

 1
16104 - SEAL SET, WATER PUMP
16104-41110

2TC..TE3#,51

 1
16104-22010

2TC..TE3#

 1
16104-41110

2TC..TE3#,51

 1
16104-22010

2TC..TE3#

 1
16131 - ROTOR, WATER PUMP
16131-25012

2TC..TE3#,51

 1
16131-26010

2TC..TE3#,51

 1
16131-25011

2TC..TE3#

 1
16131A - BEARING, WATER PUMP
90369-30035

2TC..TE3#

 1
90369-30063

2TC..TE3#,51

 1
16140-38011

2TC..TE3#,51

WPB16101ARS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-31030

2TC..TE3#

 1
16171-26021

2TC..TE3#,51

 1
16171-38021

2TC..TE3#,51

 1
16271 - GASKET, WATER PUMP
16129-25011

2TC..TE3#,51

 1
16129-25010

2TC..TE3#,51

 1
16371 - PULLEY, FAN
16371-25020

2TC..TE3#

W/COOLER

 1
16173-28010

2TC..TE3#,51

 1
16173-26021

2TC..TE3#,51

 1
16173-26020

2TC..TE3#,51

 1
16371-25010

2TC..TE3#

 1
Common parts
91611-40830
