TE31L-KDA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

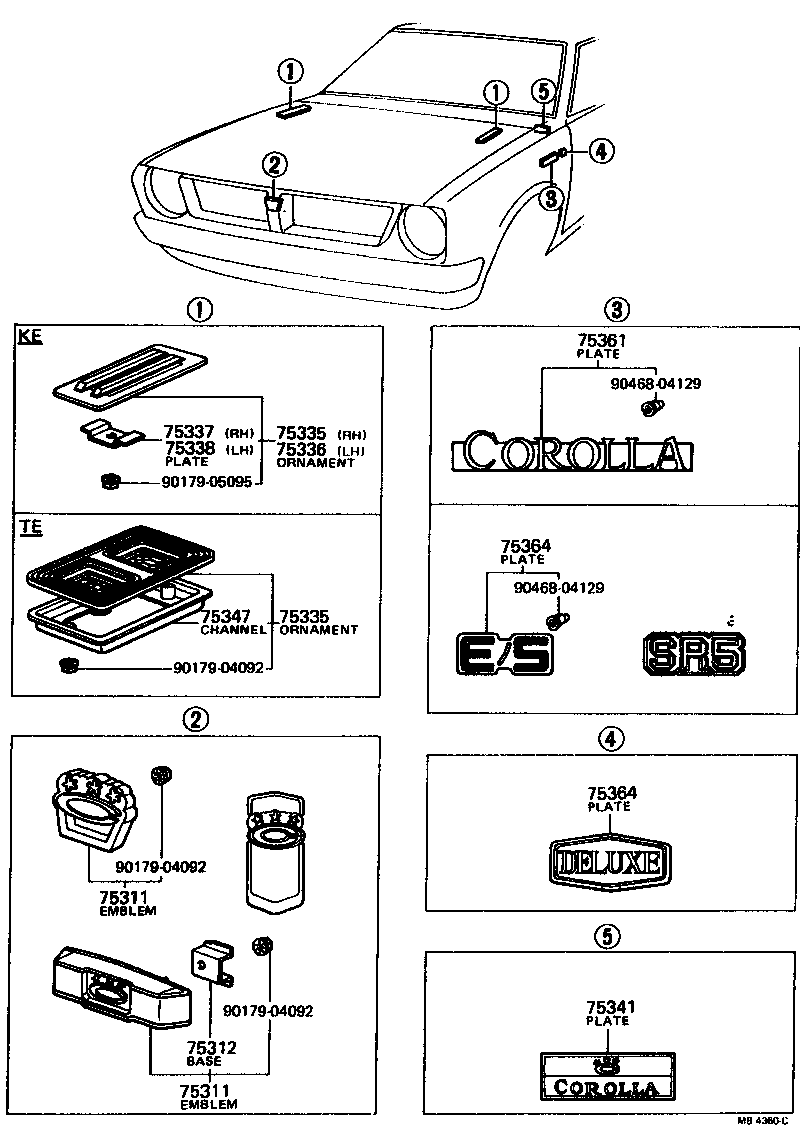

(7408-7701)KE3#,TE3#

Click highlighted areas on diagram

diagram 75311 75311 75312 75335 75335 75336 75337 75338 75341 75347 75361 75364 75364 9017904092 9017904092 9017904092 9017905095 9046804129 9046804129
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19105

KE30,TE3#

C MARK

 1
75311-19255

TE31,38..DLX,STD

 1
75311-19655

KE30,TE3#

TOYOTA

 1
75301-19045

TE3#..DLX,SR5,STD

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19105

KE30,TE3#

C MARK

 1
75311-19255

TE31,38..DLX,STD

 1
75311-19655

KE30,TE3#

TOYOTA

 1
75301-19045

TE3#..DLX,SR5,STD

 1
75335 - ORNAMENT, HOOD RELIEF, RH
75305-1901503

TE3#

SILVER M.,GRAY

 1
75305-1901513

TE3#

DARK-GRAY M.,GRAY

 1
75305-1901508

TE3#

WHITE,IVORY

 1
75335 - ORNAMENT, HOOD RELIEF, RH
75305-1901503

TE3#

SILVER M.,GRAY

 1
75305-1901513

TE3#

DARK-GRAY M.,GRAY

 1
75305-1901508

TE3#

WHITE,IVORY

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55511-12090

TE3#

 1
55511-12080

KE3#,50,TE3#,51

 1
75347 - CHANNEL, HOOD RELIEF ORNAMENT DRIP, RH
75303-12010

TE3#

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-12080

KE3#,50,TE3#,51..DLX,SPL,STD

 2
75361-12080

KE3#,TE3#..DLX,STD

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75362-12160

KE35,TE3#..DLX

 2
75362-12160

KE35,50,TE3#,51..DLX

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75362-12160

KE35,TE3#..DLX

 2
75362-12160

KE35,50,TE3#,51..DLX

 2
Common parts
90179-04092
90179-05095
90468-04129

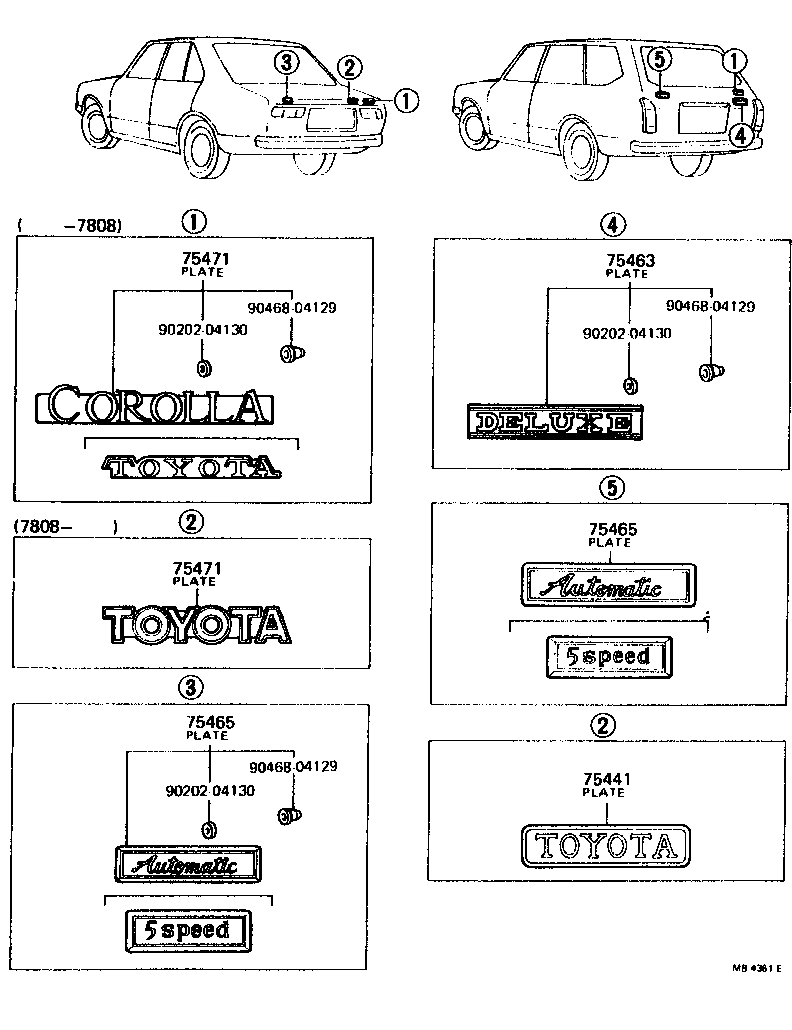

(7408-7908)KE3#,TE3#

Click highlighted areas on diagram

diagram 75441 75463 75465 75465 75471 75471 9020204130 9020204130 9020204130 9046804129 9046804129 9046804129
Part # Description Qty Price
75471 - PLATE, REAR BODY NAME, NO.1(MODEL MARK)
75441-12150

KE30,TE31

 1
75441-12210

KE30,TE31,37

 1
75441-12150

KE30,TE31

 1
75471 - PLATE, REAR BODY NAME, NO.1(MODEL MARK)
75441-12150

KE30,TE31

 1
75441-12210

KE30,TE31,37

 1
75441-12150

KE30,TE31

 1
Common parts
90202-04130
90468-04129

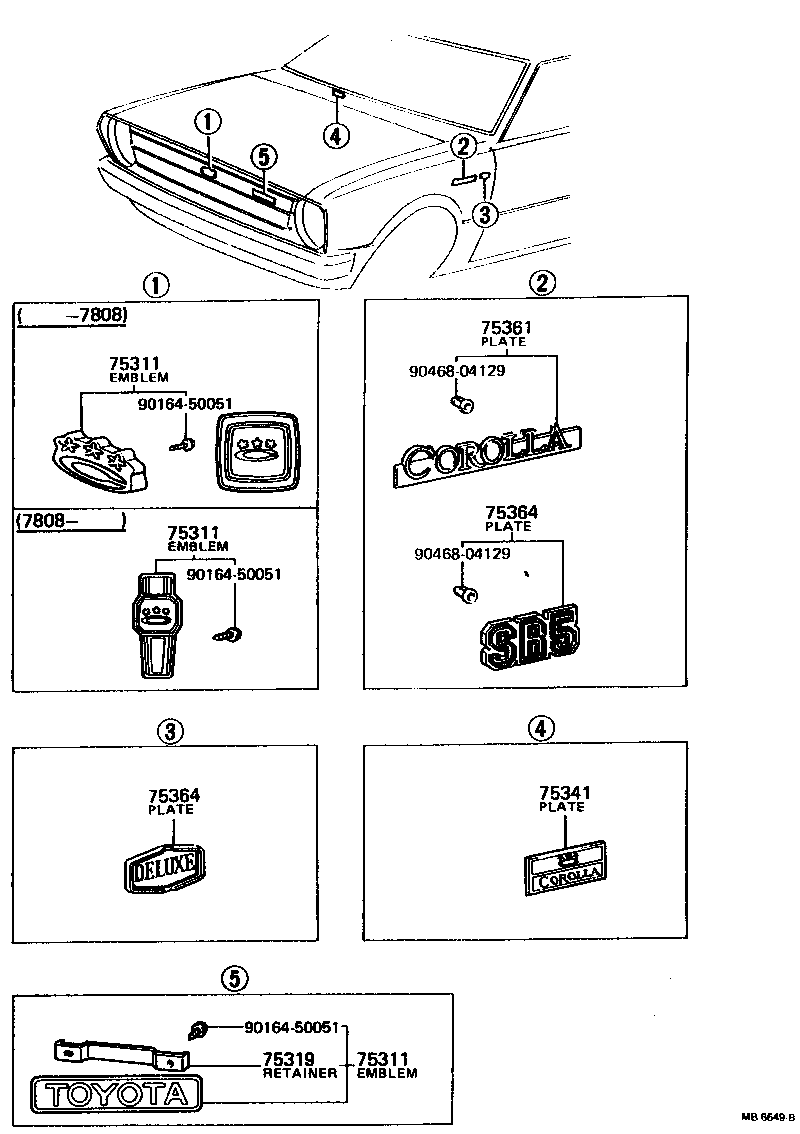

(7701-7908)KE3#,TE3#

Click highlighted areas on diagram

diagram 75311 75311 75311 75319 75341 75361 75364 75364 9016450051 9016450051 9016450051 9046804129 9046804129
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19105

KE30,TE3#

C MARK

 1
75311-19255

TE31,38..DLX,STD

 1
75311-19655

KE30,TE3#

TOYOTA

 1
75301-19045

TE3#..DLX,SR5,STD

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19105

KE30,TE3#

C MARK

 1
75311-19255

TE31,38..DLX,STD

 1
75311-19655

KE30,TE3#

TOYOTA

 1
75301-19045

TE3#..DLX,SR5,STD

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19105

KE30,TE3#

C MARK

 1
75311-19255

TE31,38..DLX,STD

 1
75311-19655

KE30,TE3#

TOYOTA

 1
75301-19045

TE3#..DLX,SR5,STD

 1
75319 - RETAINER, RADIATOR GRILLE (OR FRONT PANEL) NAME
75318-12060

KE30,TE3#

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55511-12090

TE3#

 1
55511-12080

KE3#,50,TE3#,51

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-12080

KE3#,50,TE3#,51..DLX,SPL,STD

 2
75361-12080

KE3#,TE3#..DLX,STD

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75362-12160

KE35,TE3#..DLX

 2
75362-12160

KE35,50,TE3#,51..DLX

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75362-12160

KE35,TE3#..DLX

 2
75362-12160

KE35,50,TE3#,51..DLX

 2
Common parts
90164-50051
90468-04129
