TE31L-KBK (1978)

Toyota Corolla

Production May 1978 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

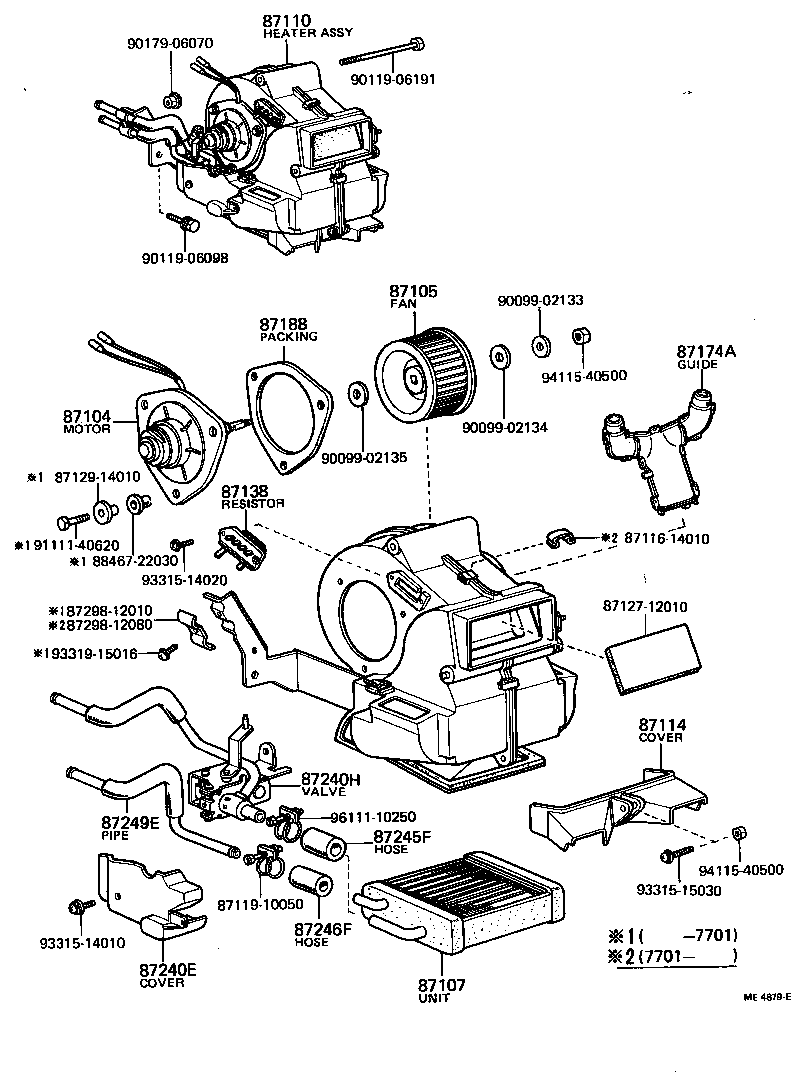

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87114 8711614010 8711910050 8712712010 8712914010 87138 87174A 87188 87240E 87240H 87245F 87246F 87249E 8729812010 8729812080 8846722030 9009902133 9009902134 9009902135 9011906098 9011906191 9017906070 9111140620 9331514010 9331514020 9331515030 9331915016 9411540500 9411540500 9611110250
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12070

KE3#,TE3#,51

 1
87104-12080

KE3#,TE3#,51

HEAVY DUTY HEATER

 1
87104-12113

TE3#,51

ULTRA HEAVY DUTY,W/SIDE DEF.

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22020

KE3#,TE3#,51

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12100

KE3#,TE3#

 1
87107-12110

KE3#,TE3#

HEAVY DUTY HEATER

 1
87110 - HEATER ASSY
87110-12110

KE3#,TE3#

 1
87110-12120

KE3#,TE3#

HEAVY DUTY HEATER

 1
87114 - COVER, HEATER
87297-12010

KE3#,TE3#,51

 1
87138 - RESISTOR, HEATER BLOWER
87138-12071

KE3#,TE3#,51

 1
87138-22020

KE3#,50,TE3#,51

W/COOLER & HEAVY DUTY HEATER

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

KE3#,50,TE3#,51

 1
87240E - COVER, HEATER WATER VALVE
87173-12030

KE3#,TE3#,51

 1
87240H - VALVE ASSY, WATER UNIT
87240-12090

KE3#,TE3#

 1
87245F - HOSE, HEATER WATER, INLET F
99552-30045

KE3#,50,TE3#,51

 1
87246F - HOSE, HEATER WATER, OUTLET F
99552-20035

KE3#,50,TE3#,51

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87291-12010

KE3#,50,TE3#,51

 1
Common parts
87116-14010
87119-10050
87127-12010
87129-14010
87298-12010
87298-12080
88467-22030
90099-02133
90099-02134
90099-02135
90119-06098
90119-06191
90179-06070
91111-40620
93315-14010
93315-14020
93315-15030
93319-15016
94115-40500
96111-10250
