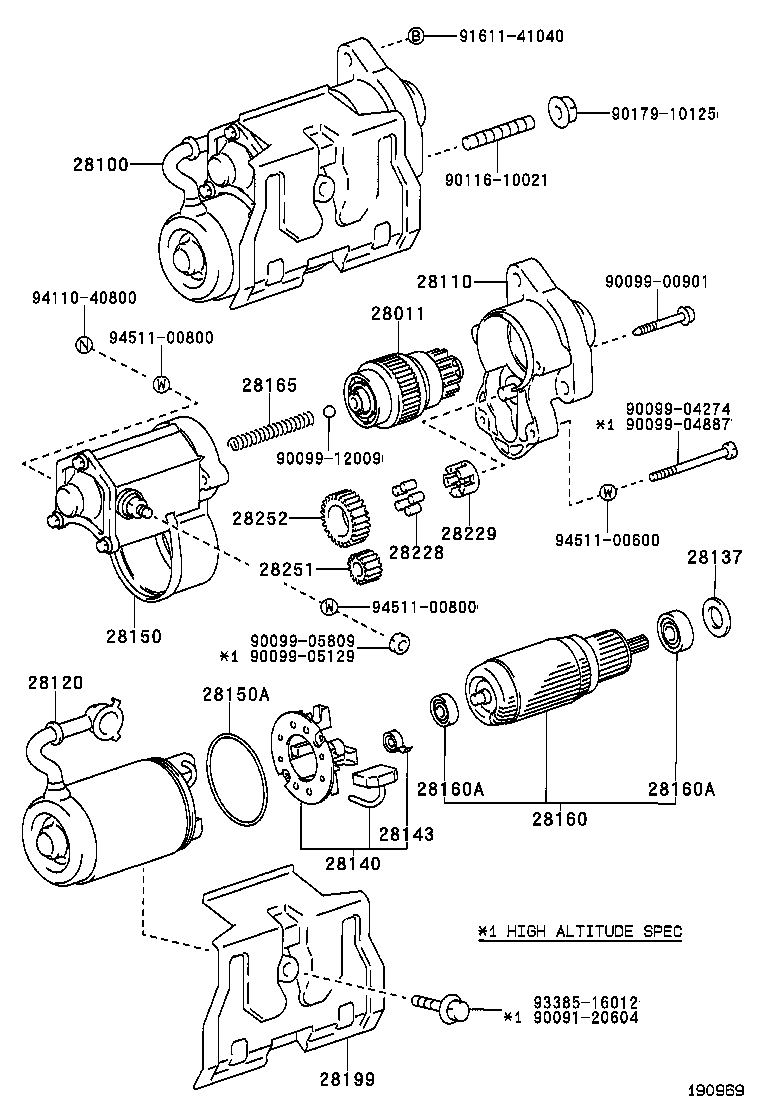

TE31L-KBFA (1976)
Toyota Corolla
(7408-7908)2TC
12V 0.9KW,1.0KW,1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26040 |
2TC..TE3# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-26040 |
2TC..TE3# 12V 1.0KW |
1 | ||
| 28100-26060 |
2TC..TE3# 12V 1.0KW,CALIFORNIA SPEC. |
1 | ||
| 28100-26050 |
2TC..TE3# 12V 1.4KW |
1 | ||
| 28100-26120 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW,REDUCTION TYPE |
1 | ||
| 28100-26090 |
2TC..TE37,38,51;2TC..TE31..MTM..USA;2TC..TE31..A40..DLX 12V 1.0KW,CALIFORNIA SPEC. |
1 | ||
| 28100-26110 |
2TC..TE37,38,51;2TC..TE31..MTM..USA;2TC..TE31..A40..DLX 12V 1.4KW,HIGH-ALTITUDE SPEC. |
1 | ||
| 28100-26110 |
2TC..TE3#,51 12V 1.4KW,REDUCTION TYPE |
1 | ||
| 28100-26070 |
2TC..TE3#,51 12V 1.0KW,12V 0.9KW,REDUCTION TYPE |
1 | ||
| 28100-26120 |
2TC..TE3#,51 12V 0.9KW,REDUCTION TYPE |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-26040 |
2TC..TE3#,51 |
1 | ||
| 28110-26070 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26050 |
2TC..TE3#,51 12V 1.4KW |
1 | ||
| 28120-26070 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW |
1 | ||
| 28120-26040 |
2TC..TE3#,51 12V 1.0KW |
1 | ||
| 28120-26051 |
2TC..TE3#,51 12V 1.4KW |
1 | ||
| 28120-26051 |
2TC..TE3#,51 12V 1.4KW |
1 | ||
| 28120-26041 |
2TC..TE3#,51..DLX,SPL,SR5 12V 1.0KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW |
1 | ||
| 90099-02202 |
2TC..TE3#,51 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW |
1 | ||
| 28140-34030 |
2TC..TE3#,51 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2TC..TE3#,51 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-26060 |
2TC..TE3# 12V 1.0KW,CALIFORNIA SPEC. |
1 | ||
| 28150-26062 |
2TC..TE37,38,51;2TC..TE31..MTM..USA;2TC..TE31..A40..DLX 12V 1.4KW,HIGH-ALTITUDE SPEC. |
1 | ||
| 28150-26040 |
2TC..TE3# 12V 1.0KW,1.4KW |
1 | ||
| 28150-26062 |
2TC..TE3#,51..DLX,SPL,SR5 12V 1.4KW |
1 | ||
| 28150-26062 |
2TC..TE3#,51 12V 1.4KW |
1 | ||
| 28150-26120 |
2TC..TE37,38,51;2TC..TE31..MTM..USA;2TC..TE31..A40..DLX 12V 1.0KW,CALIFORNIA SPEC. |
1 | ||
| 28150-26120 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW |
1 | ||
| 28150-26070 |
2TC..TE3#,51 12V 0.9KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-06031 |
2TC..TE3#,51 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26040 |
2TC..TE3#,51 12V 1.0KW |
1 | ||
| 28160-26050 |
2TC..TE3#,51 12V 1.4KW |
1 | ||
| 28160-26070 |
2TC..TE3#,51..DLX,SPL,SR5 12V 0.9KW |
1 | ||
| 28160-26050 |
2TC..TE3#,51 12V 1.4KW |
1 | ||
| 28160-26040 |
2TC..TE3#,51..DLX,SPL,SR5 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
2TC..TE3#,51 608Z,REAR |
1 | ||
| 90099-10113 |
2TC..TE3#,51 NSK,FRONT |
1 | ||
| 90099-10107 |
2TC..TE3#,51 6200Z,FRONT |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
2TC..TE3#,51 608Z,REAR |
1 | ||
| 90099-10113 |
2TC..TE3#,51 NSK,FRONT |
1 | ||
| 90099-10107 |
2TC..TE3#,51 6200Z,FRONT |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2TC..TE3#,51 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2TC..TE3#,51 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2TC..TE3#,51 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-45020 |
2TC..TE3#,51 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
2TC..TE3#,51 |
1 | ||
| Common parts | ||||
| 90091-20604 | ||||
| 90099-00901 | ||||
| 90099-04274 | ||||
| 90099-04887 | ||||
| 90099-05129 | ||||
| 90099-05809 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-10125 | ||||
| 91611-41040 | ||||
| 93385-16012 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
