TE31L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

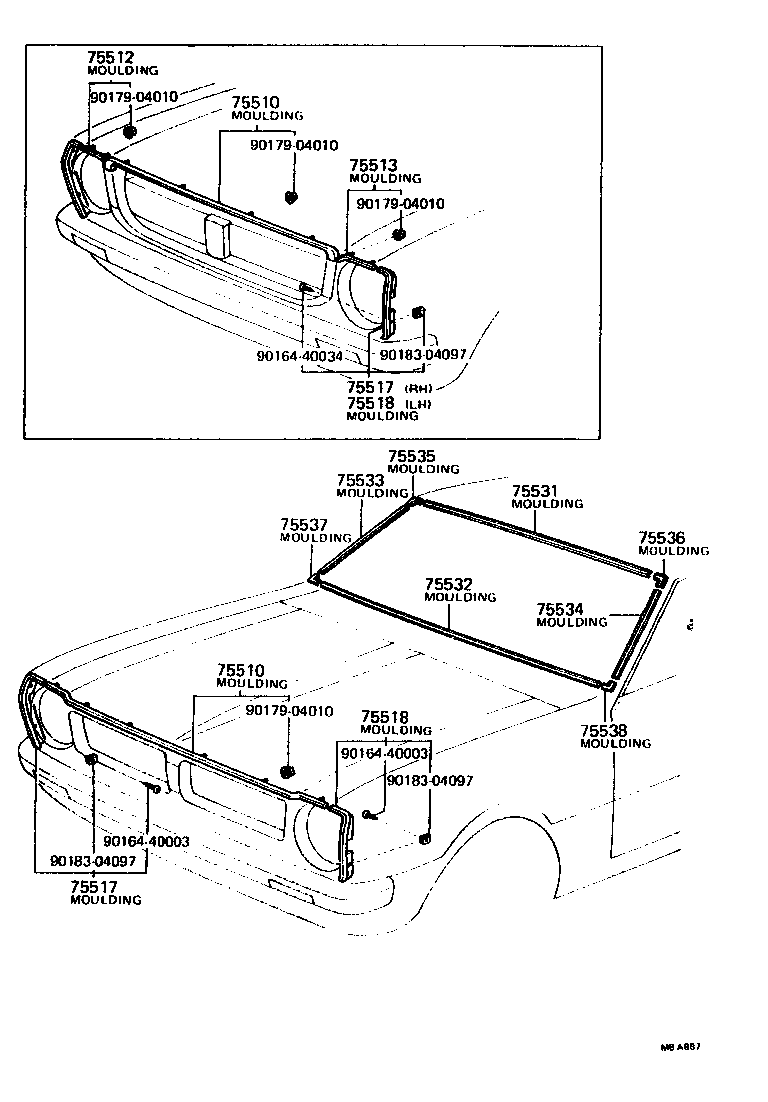

Click highlighted areas on diagram

diagram 75510 75510 75512 75513 75517 75517 75518 75518 75531 75532 75533 75534 75535 75536 75537 75538 9016440003 9016440003 9016440034 9017904010 9017904010 9017904010 9017904010 9018304097 9018304097 9018304097
Part # Description Qty Price
75510 - MOULDING ASSY, RADIATOR GRILLE OPENING, UPPER
75770-19015

KE3#;TE31..SPL

 1
75770-19105

KE30,TE3#

 1
75510 - MOULDING ASSY, RADIATOR GRILLE OPENING, UPPER
75770-19015

KE3#;TE31..SPL

 1
75770-19105

KE30,TE3#

 1
75512 - MOULDING, RADIATOR GRILLE OPENING, RH
75780-19035

KE30,TE3#

 1
75513 - MOULDING, RADIATOR GRILLE OPENING, LH
75790-19035

KE30,TE3#

 1
75517 - MOULDING, RADIATOR GRILLE OPENING LOWER, RH
75601-19015

KE3#,TE3#

 1
75601-19045

KE30,TE3#

 1
75517 - MOULDING, RADIATOR GRILLE OPENING LOWER, RH
75601-19015

KE3#,TE3#

 1
75601-19045

KE30,TE3#

 1
75518 - MOULDING, RADIATOR GRILLE OPENING LOWER, LH
75602-19045

KE30,TE3#

 1
75602-19015

KE3#,TE3#

 1
75518 - MOULDING, RADIATOR GRILLE OPENING LOWER, LH
75602-19045

KE30,TE3#

 1
75602-19015

KE3#,TE3#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12120

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75531-12120

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-12050

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75535-12050

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12140

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75533-12140

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75533-12140

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75533-12140

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-12050

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75541-12050

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75541-12050

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75541-12050

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75537 - MOULDING, WINDSHIELD CORNER, LOWER RH
75543-12010

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75543-12010

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
75538 - MOULDING, WINDSHIELD CORNER, LOWER LH
75543-12010

KE30..USA;TE31..MTM;TE31..A40..SPL..CND;TE31..A40..(DLX,STD);KE3#,TE37,38..DLX,SR5,STD

 1
75543-12010

TE3#..DLX,SR5;KE30,TE31..SPL..USA

 1
Common parts
90164-40003
90164-40034
90179-04010
90183-04097
