TE31L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

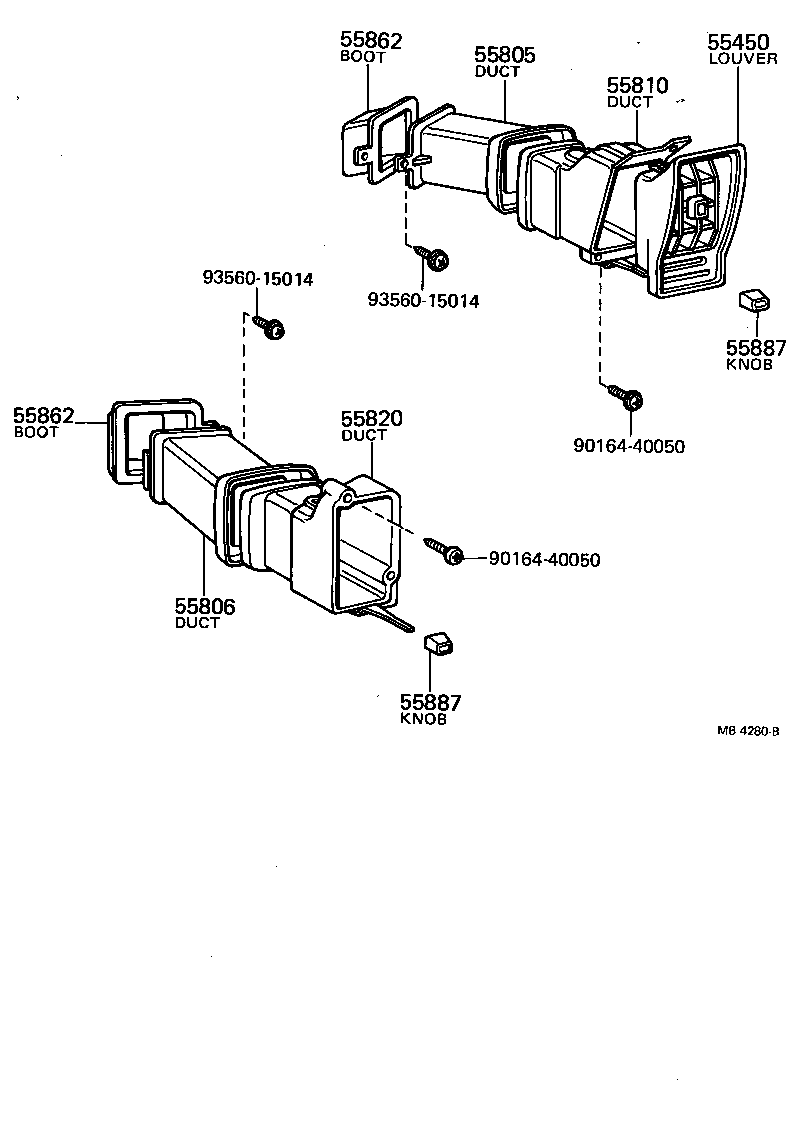

(7408-7701)

Click highlighted areas on diagram

diagram 55450 55805 55806 55810 55820 55862 55862 55887 55887 9016440050 9016440050 9356015014 9356015014
Part # Description Qty Price
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55660-1202001

KE3#,TE3#,51

BLACK,BLACK

 1
55660-1202006

KE3#,TE3#

BROWN,BROWN

 1
55660-12040

KE3#,TE3#

 1
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55842-12060

KE3#,TE3#

 1
55842-12030

KE3#,TE3#

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55841-12030

KE3#,TE3#

 1
55841-12060

KE3#,TE3#

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55840-12030

KE3#,TE3#,51

 1
55088-12020

KE30,TE3#

FOR COOLER

 1
55832-12050

KE3#,TE3#

 1
55088-12020

TE3#

FOR COOLER

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55830-12030

KE3#,TE3#

 1
55831-12060

KE3#,TE3#

 1
55085-12040

TE3#

FOR COOLER

 1
55085-12040

KE30,TE3#

FOR COOLER

 1
55862 - BOOT, SIDE VENTILATOR
55844-12030

KE3#,TE3#

RH.

 1
55843-12030

KE3#,TE3#

LH.

 1
55862 - BOOT, SIDE VENTILATOR
55844-12030

KE3#,TE3#

RH.

 1
55843-12030

KE3#,TE3#

LH.

 1
55887 - KNOB, SIDE VENTILATOR BUTTERFLY CONTROL
55897-12901

KE3#,TE3#,51

 2
55887 - KNOB, SIDE VENTILATOR BUTTERFLY CONTROL
55897-12901

KE3#,TE3#,51

 2
Common parts
90164-40050
93560-15014

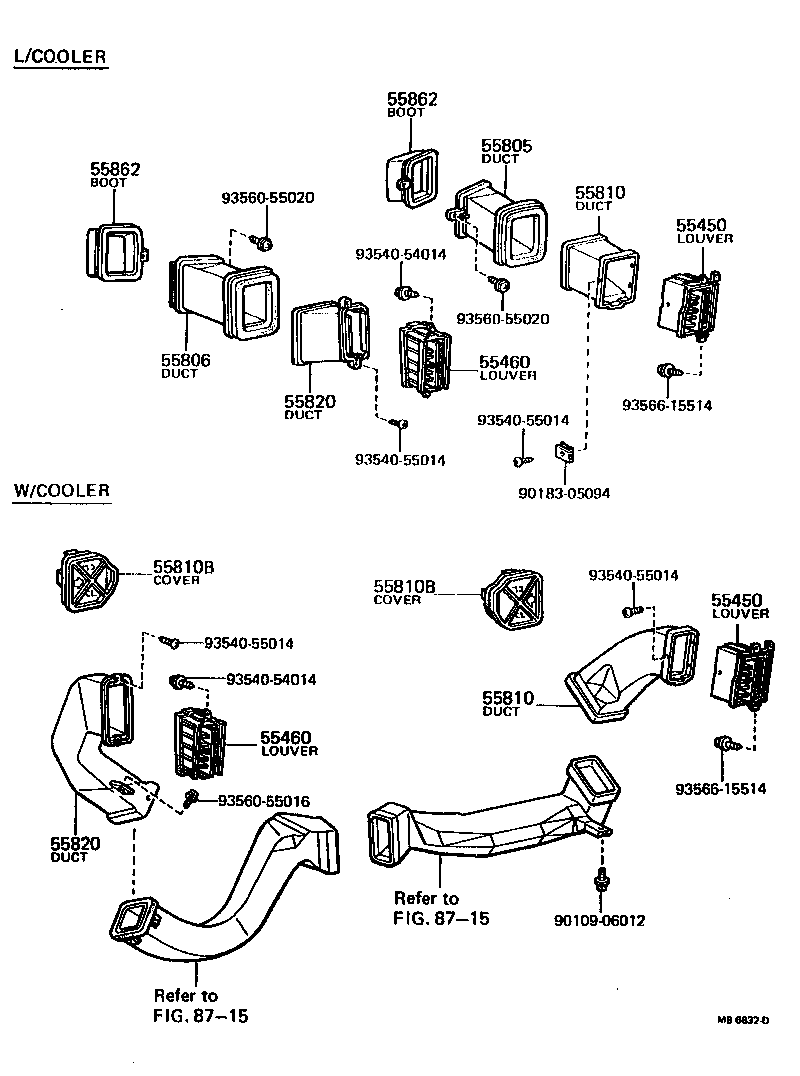

(7701-7908)KE3#,TE3#

Click highlighted areas on diagram

diagram 55450 55450 55460 55460 55805 55806 55810 55810 55810B 55810B 55820 55820 55862 55862 8715 8715 9010906012 9018305094 9354054014 9354054014 9354055014 9354055014 9354055014 9354055014 9356055016 9356055020 9356055020 9356615514 9356615514
Part # Description Qty Price
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55660-1202001

KE3#,TE3#,51

BLACK,BLACK

 1
55660-1202006

KE3#,TE3#

BROWN,BROWN

 1
55660-12040

KE3#,TE3#

 1
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55660-1202001

KE3#,TE3#,51

BLACK,BLACK

 1
55660-1202006

KE3#,TE3#

BROWN,BROWN

 1
55660-12040

KE3#,TE3#

 1
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55650-12020

KE3#,TE3#

 1
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55650-12020

KE3#,TE3#

 1
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55842-12060

KE3#,TE3#

 1
55842-12030

KE3#,TE3#

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55841-12030

KE3#,TE3#

 1
55841-12060

KE3#,TE3#

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55840-12030

KE3#,TE3#,51

 1
55088-12020

KE30,TE3#

FOR COOLER

 1
55832-12050

KE3#,TE3#

 1
55088-12020

TE3#

FOR COOLER

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55840-12030

KE3#,TE3#,51

 1
55088-12020

KE30,TE3#

FOR COOLER

 1
55832-12050

KE3#,TE3#

 1
55088-12020

TE3#

FOR COOLER

 1
55810B - COVER, SIDE VENTILATOR
55877-12010

TE3#

FOR COOLER

 1
55877-12010

KE30,TE3#

FOR COOLER

 1
55810B - COVER, SIDE VENTILATOR
55877-12010

TE3#

FOR COOLER

 1
55877-12010

KE30,TE3#

FOR COOLER

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55830-12030

KE3#,TE3#

 1
55831-12060

KE3#,TE3#

 1
55085-12040

TE3#

FOR COOLER

 1
55085-12040

KE30,TE3#

FOR COOLER

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55830-12030

KE3#,TE3#

 1
55831-12060

KE3#,TE3#

 1
55085-12040

TE3#

FOR COOLER

 1
55085-12040

KE30,TE3#

FOR COOLER

 1
55862 - BOOT, SIDE VENTILATOR
55844-12030

KE3#,TE3#

RH.

 1
55843-12030

KE3#,TE3#

LH.

 1
55862 - BOOT, SIDE VENTILATOR
55844-12030

KE3#,TE3#

RH.

 1
55843-12030

KE3#,TE3#

LH.

 1
Common parts
90109-06012
90183-05094
93540-54014
93540-55014
93560-55016
93560-55020
93566-15514
Linked diagrams
8715
