TE31L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

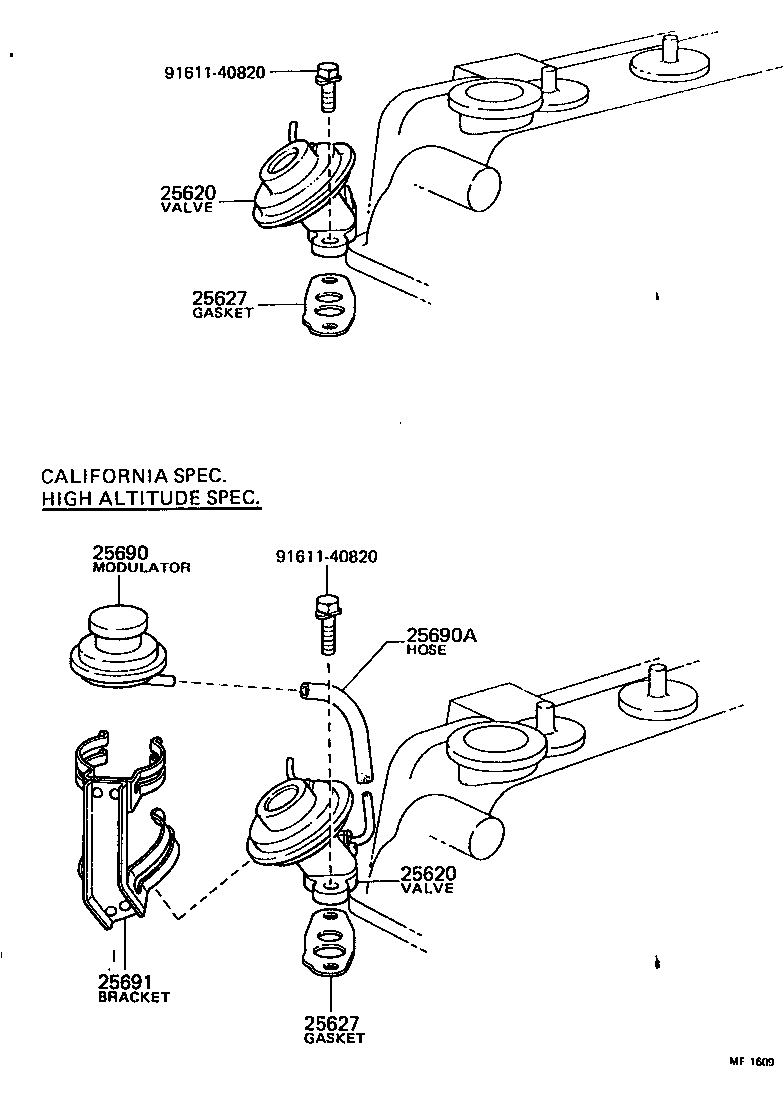

(7608-7708)2TC

Click highlighted areas on diagram

diagram 25620 25620 25627 25627 25690 25690A 25691 9161140820 9161140820
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-26011

2TC..TE3#,51..MTM..USA

 1
25620-26010

2TC..TE3#,51..MTM

 1
25620-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
25620-26011

2TC..TE3#,51..USA

 1
25620-26050

2TC..TE3#,51

CAL.& H.A.

 1
25620-26070

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25620 - VALVE ASSY, EGR
25620-26011

2TC..TE3#,51..MTM..USA

 1
25620-26010

2TC..TE3#,51..MTM

 1
25620-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
25620-26011

2TC..TE3#,51..USA

 1
25620-26050

2TC..TE3#,51

CAL.& H.A.

 1
25620-26070

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25690 - MODULATOR ASSY, EGR VACUUM
25690-26010

2TC..TE3#,51..MTM..USA

 1
25690-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

2TC..TE3#,51..USA

 1
90445-11020

2TC..TE3#,51..MTM..USA

 1
90445-11013

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
90445-11013

2TC..TE3#,51

CAL.& H.A.

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-27010

2TC..TE3#,51..MTM..USA

 1
25691-26010

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
25691-27010

2TC..TE3#,51..USA

 1
25691-26010

2TC..TE3#,51

CAL.& H.A.

 1
Common parts
91611-40820

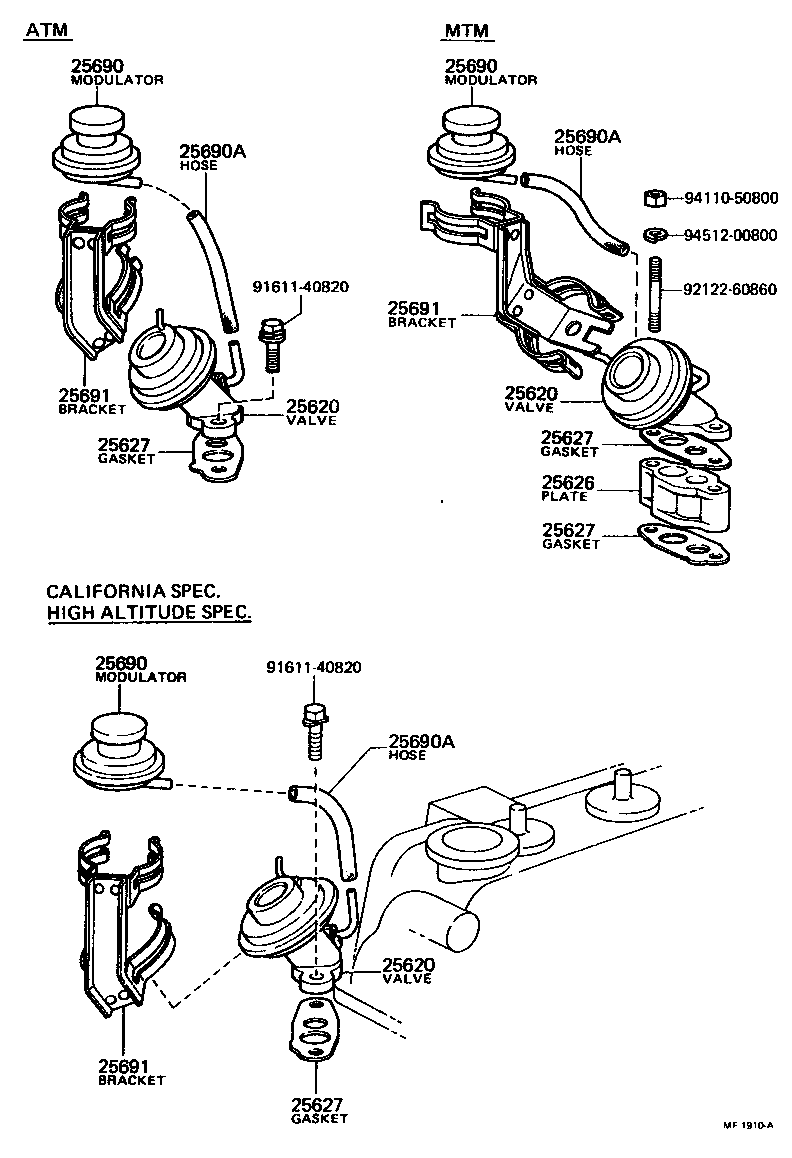

(7708-7808)2TC..USA

Click highlighted areas on diagram

diagram 25620 25620 25620 25626 25627 25627 25627 25627 25690 25690 25690 25690A 25690A 25690A 25691 25691 25691 9161140820 9161140820 9212260860 9411050800 9451200800
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-26011

2TC..TE3#,51..MTM..USA

 1
25620-26010

2TC..TE3#,51..MTM

 1
25620-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
25620-26011

2TC..TE3#,51..USA

 1
25620-26050

2TC..TE3#,51

CAL.& H.A.

 1
25620-26070

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25620 - VALVE ASSY, EGR
25620-26011

2TC..TE3#,51..MTM..USA

 1
25620-26010

2TC..TE3#,51..MTM

 1
25620-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
25620-26011

2TC..TE3#,51..USA

 1
25620-26050

2TC..TE3#,51

CAL.& H.A.

 1
25620-26070

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25620 - VALVE ASSY, EGR
25620-26011

2TC..TE3#,51..MTM..USA

 1
25620-26010

2TC..TE3#,51..MTM

 1
25620-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
25620-26011

2TC..TE3#,51..USA

 1
25620-26050

2TC..TE3#,51

CAL.& H.A.

 1
25620-26070

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25626 - PLATE, EGR ORIFICE
25626-26011

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
25626-26010

2TC..TE3#,51..MTM..USA

FEDERAL SPEC.

 1
25626-26020

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25690 - MODULATOR ASSY, EGR VACUUM
25690-26010

2TC..TE3#,51..MTM..USA

 1
25690-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-26010

2TC..TE3#,51..MTM..USA

 1
25690-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-26010

2TC..TE3#,51..MTM..USA

 1
25690-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

2TC..TE3#,51..USA

 1
90445-11020

2TC..TE3#,51..MTM..USA

 1
90445-11013

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
90445-11013

2TC..TE3#,51

CAL.& H.A.

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

2TC..TE3#,51..USA

 1
90445-11020

2TC..TE3#,51..MTM..USA

 1
90445-11013

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
90445-11013

2TC..TE3#,51

CAL.& H.A.

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

2TC..TE3#,51..USA

 1
90445-11020

2TC..TE3#,51..MTM..USA

 1
90445-11013

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
90445-11013

2TC..TE3#,51

CAL.& H.A.

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-27010

2TC..TE3#,51..MTM..USA

 1
25691-26010

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
25691-27010

2TC..TE3#,51..USA

 1
25691-26010

2TC..TE3#,51

CAL.& H.A.

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-27010

2TC..TE3#,51..MTM..USA

 1
25691-26010

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
25691-27010

2TC..TE3#,51..USA

 1
25691-26010

2TC..TE3#,51

CAL.& H.A.

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-27010

2TC..TE3#,51..MTM..USA

 1
25691-26010

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
25691-27010

2TC..TE3#,51..USA

 1
25691-26010

2TC..TE3#,51

CAL.& H.A.

 1
Common parts
91611-40820
92122-60860
94110-50800
94512-00800

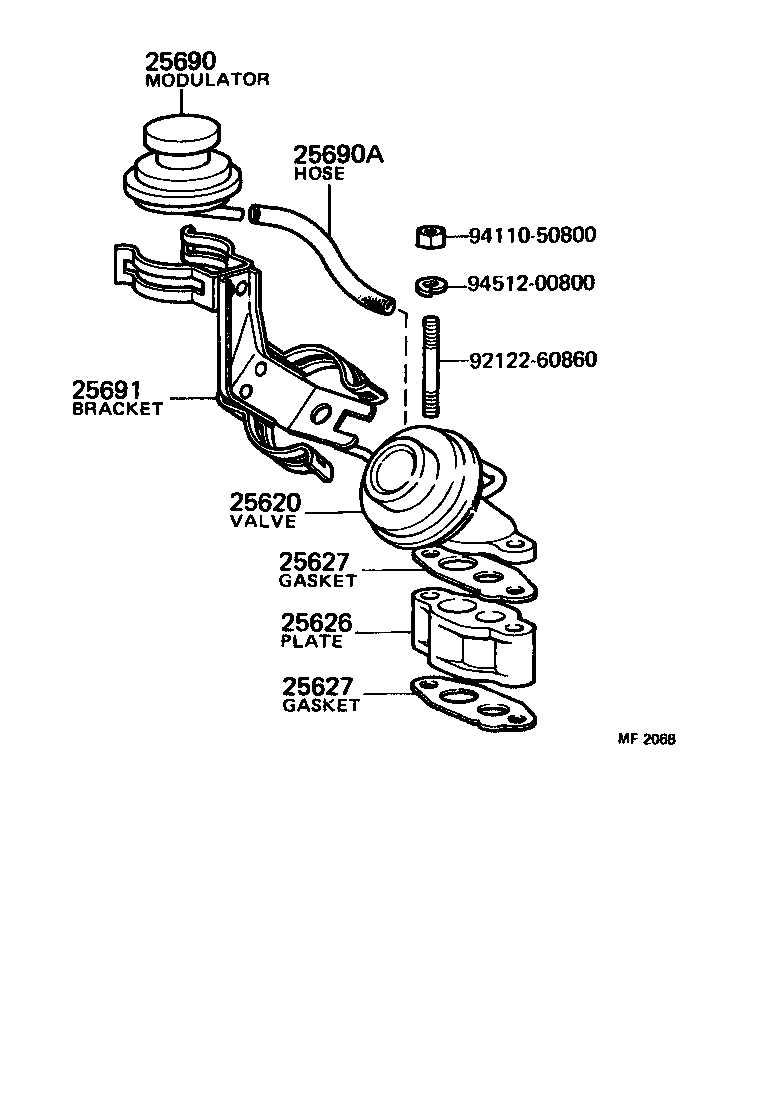

(7808-7908)2TC..USA

Click highlighted areas on diagram

diagram 25620 25626 25627 25627 25690 25690A 25691 9212260860 9411050800 9451200800
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-26011

2TC..TE3#,51..MTM..USA

 1
25620-26010

2TC..TE3#,51..MTM

 1
25620-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
25620-26011

2TC..TE3#,51..USA

 1
25620-26050

2TC..TE3#,51

CAL.& H.A.

 1
25620-26070

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25626 - PLATE, EGR ORIFICE
25626-26011

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
25626-26010

2TC..TE3#,51..MTM..USA

FEDERAL SPEC.

 1
25626-26020

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25627 - GASKET, EGR VALVE
25627-26010

2TC..TE3#,51

 2
25690 - MODULATOR ASSY, EGR VACUUM
25690-26010

2TC..TE3#,51..MTM..USA

 1
25690-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

2TC..TE3#,51..USA

 1
90445-11020

2TC..TE3#,51..MTM..USA

 1
90445-11013

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
90445-11013

2TC..TE3#,51

CAL.& H.A.

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-27010

2TC..TE3#,51..MTM..USA

 1
25691-26010

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
25691-27010

2TC..TE3#,51..USA

 1
25691-26010

2TC..TE3#,51

CAL.& H.A.

 1
Common parts
92122-60860
94110-50800
94512-00800
