TE31L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

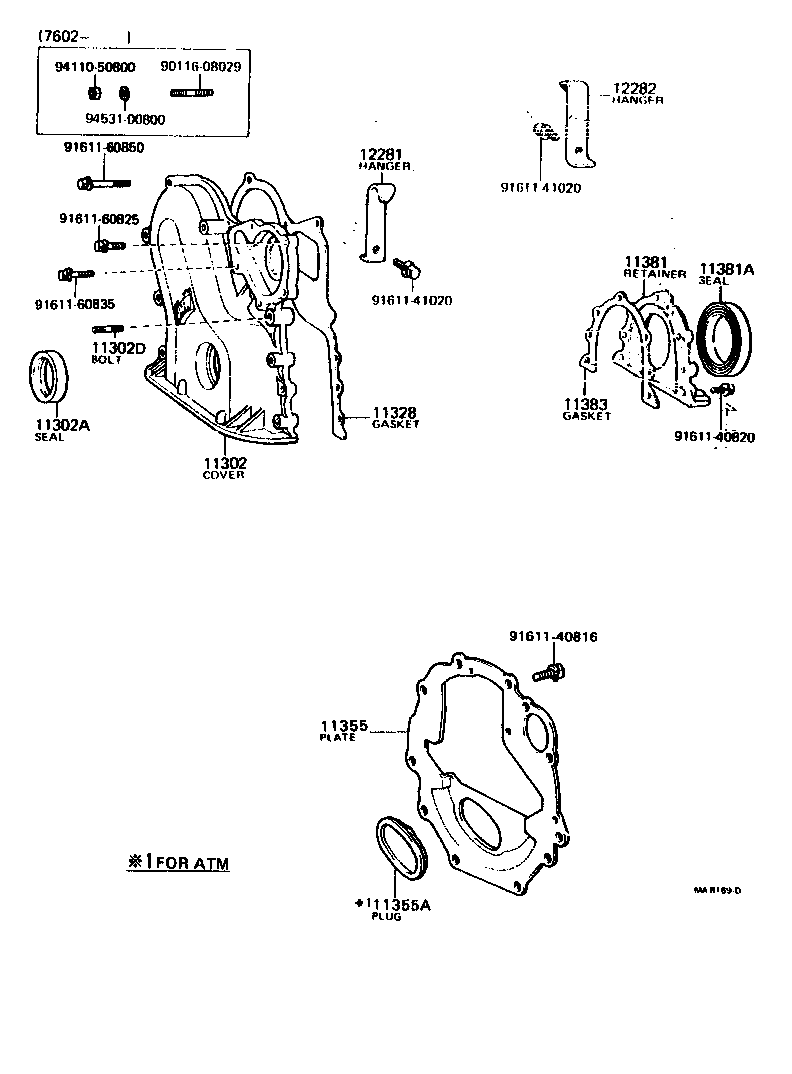

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355A 11381 11381A 11383 12281 12282 9011608029 9161140816 9161140820 9161141020 9161141020 9161160825 9161160835 9161160850 9411050800 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-28010

2TC..TE3#,51

 1
11321-25010

2TC..TE3#

 1
11321-26010

2TC..TE3#

CALIFORNIA SPEC.

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38111

2TC..TE3#,51

HTC 38.5 58 11

 1
90311-38002

2TC..TE3#,51

HTC3 38.5 58 11

 1
90311-38013

2TC..TE3#,51

HTC 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08057

2TC..TE3#,51

L=29,S=13&13

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25011

2TC..TE3#,51

 1
11328-25010

2TC..TE3#,51

 1
11355 - PLATE, REAR END
11355-26020

2TC..TE3#,51..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

2TC..TE3#,51

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

2TC..TE3#,51

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

2TC..TE3#,51

 1
12281 - HANGER, ENGINE, NO.1
12281-25010

2TC..TE3#,51

 1
12281-26010

2TC..TE3#,51

 1
12282 - HANGER, ENGINE, NO.2
12281-25010

2TC..TE3#,51

 1
12281-26010

2TC..TE3#,51

 1
Common parts
90116-08029
91611-40816
91611-40820
91611-41020
91611-60825
91611-60835
91611-60850
94110-50800
94531-00800
