TE31L-HRK (1977)

Toyota Corolla

Production Aug 1977 - May 1978
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)KE3#,TE31,37..DLX,SR5,STD

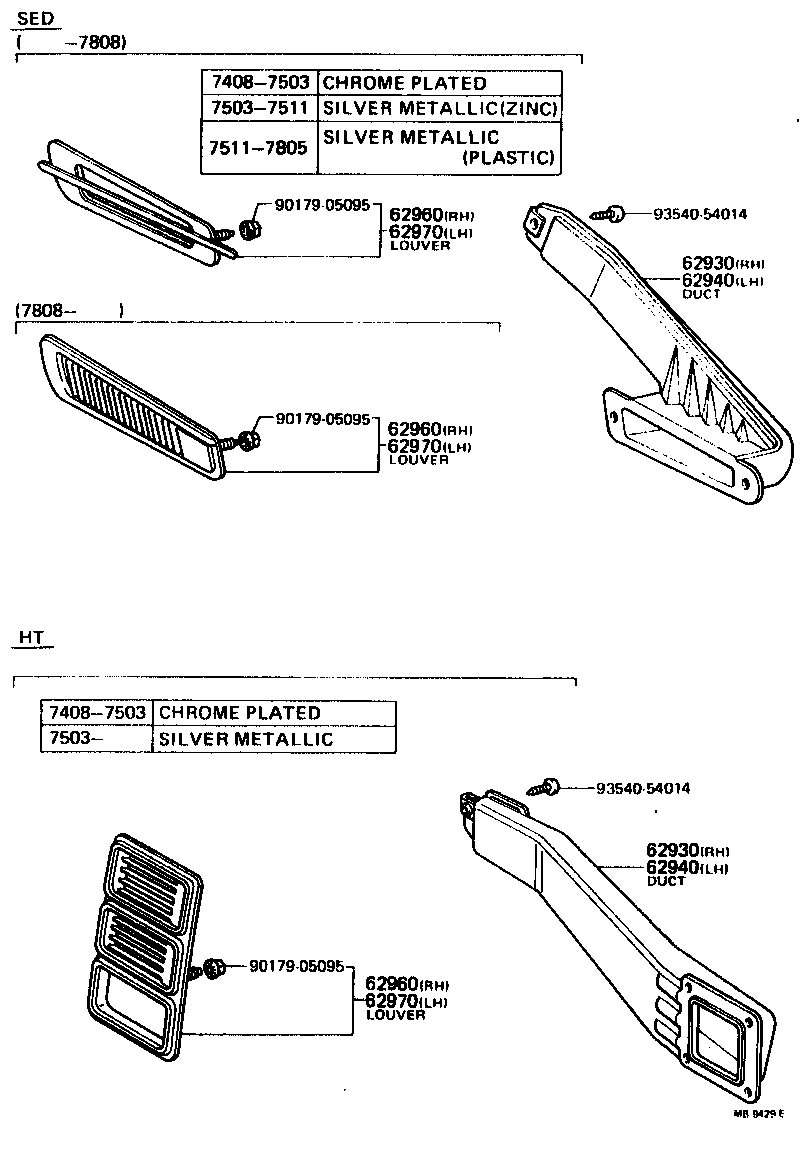

Click highlighted areas on diagram

diagram 62930 62930 62940 62940 62960 62960 62960 62970 62970 62970 9017905095 9017905095 9017905095 9354054014 9354054014
Part # Description Qty Price
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-12010

KE30,TE31

 1
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-12010

KE30,TE31

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-12010

KE30,TE31..DLX,STD

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-12010

KE30,TE31..DLX,STD

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19025

KE30,TE31

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19025

KE30,TE31

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19025

KE30,TE31

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19025

KE30,TE31

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19025

KE30,TE31

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19025

KE30,TE31

 1
Common parts
90179-05095
93540-54014
