TE31L-HRK (1977)
Toyota Corolla
Production
Aug 1977
-
May 1978
Engine
2TC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)KE30,TE31..2D

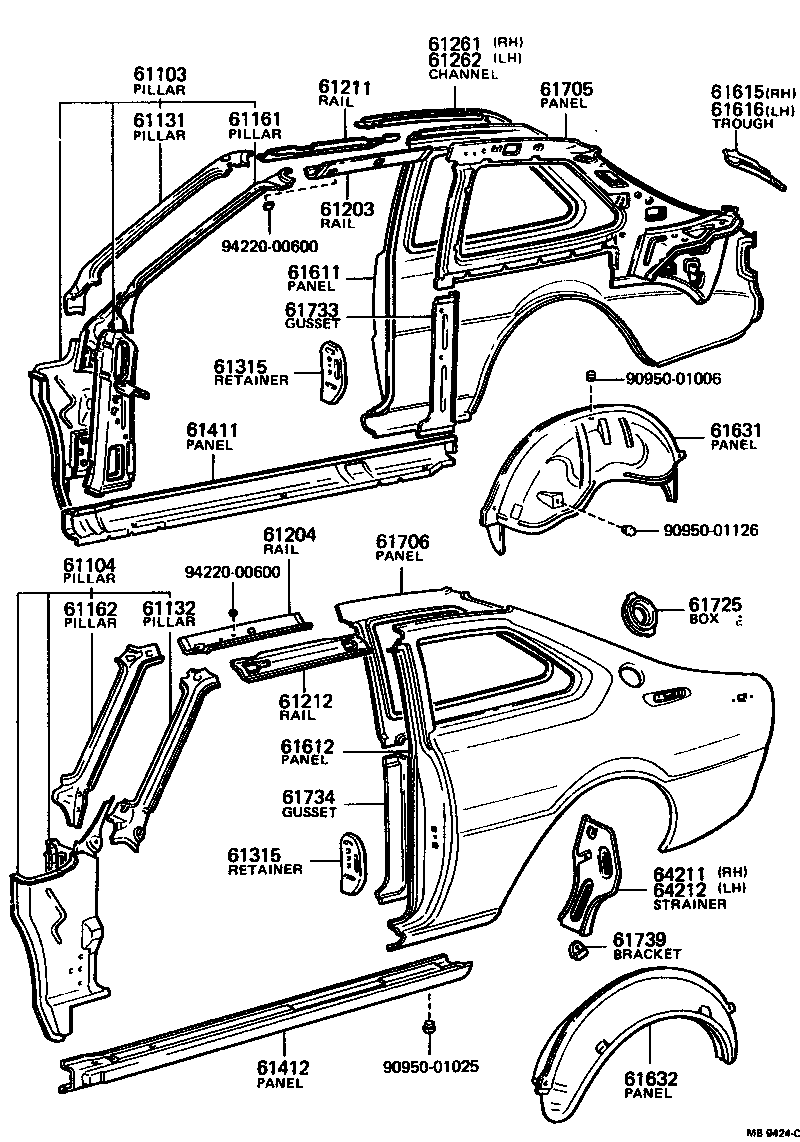

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61103-12180 |
KE30,TE31,38 |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61104-12190 |
KE30,TE31,38 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12070 |
KE30,TE31,38 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12070 |
KE30,TE31,38 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-12050 |
KE30,TE31,38 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-12050 |
KE30,TE31,38 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-12080 |
KE30,TE31,38..2D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-12080 |
KE30,TE31,38..2D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12080 |
KE30,TE31,38..2D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12080 |
KE30,TE31,38..2D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-12080 |
KE30,TE31..2D |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-12080 |
KE30,TE31..2D |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-20010 |
KE30,TE31,38 |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-20010 |
KE30,TE31,38 |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12901 |
KE3#,TE3#..2D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12901 |
KE3#,TE3#..2D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-12170 |
KE30,TE31..2D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-12170 |
KE30,TE31..2D..(DLX,STD) |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-12010 |
KE30,TE31 |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-12010 |
KE30,TE31 |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61631-12900 |
KE3#,TE31,37..DLX,STD |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61632-12900 |
KE3#,TE31,37..DLX,STD |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-12925 |
KE30,TE31..2D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-12925 |
KE30,TE31..2D |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-12060 |
KE30,TE31 |
1 | ||
| 61733 - GUSSET, QUARTER, INNER RH | ||||
| 61733-12040 |
KE30,TE31..2D |
1 | ||
| 61734 - GUSSET, QUARTER, INNER LH | ||||
| 61734-12040 |
KE30,TE31..2D |
1 | ||
| 61739 - BRACKET, REAR BODY INSIDE TRIM | ||||
| 61647-14010 |
KE3#,TE31,37..2D |
4 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01126 | ||||
| 94220-00600 | ||||
