TE31L-HRA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

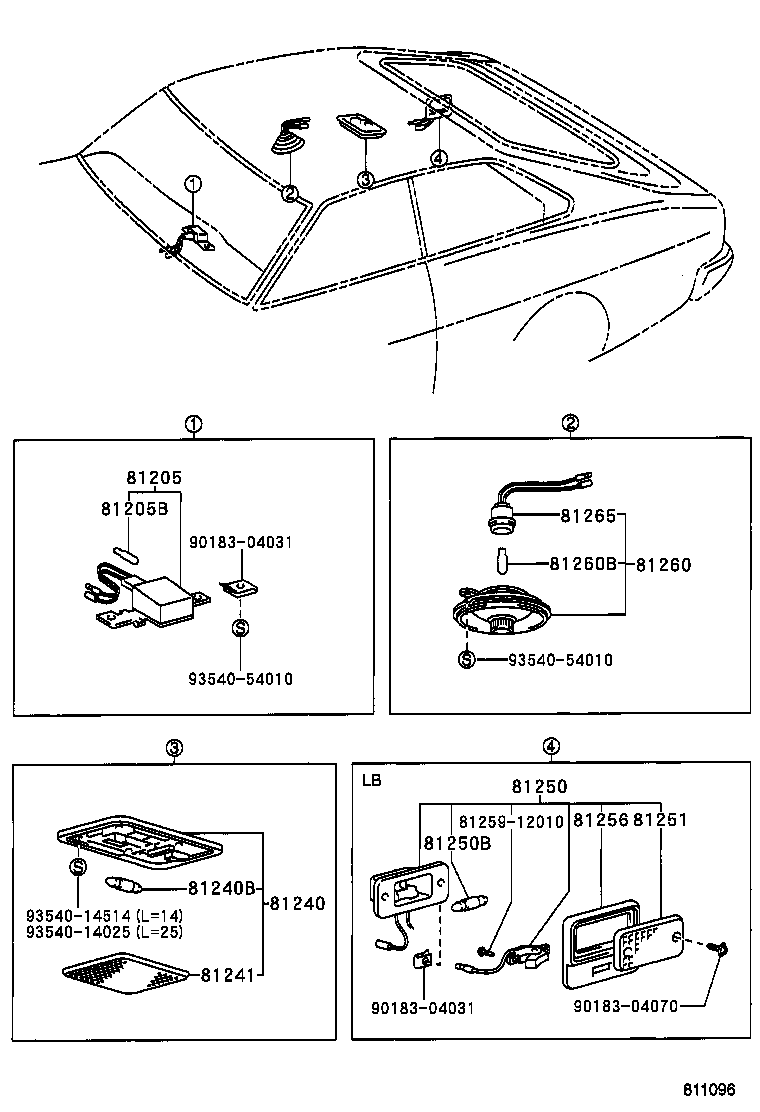

Click highlighted areas on diagram

diagram 81205 81205B 81240 81240B 81241 81250 81250B 81251 81256 8125912010 81260 81260B 81265 9018304031 9018304031 9018304070 9354014025 9354014514 9354054010 9354054010
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81205-12010

KE3#,TE3#

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

KE3#,TE3#,51

12V 1.2W W/O SOCKET,12V 1.4W

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-1201008

KE3#,TE31,37..DLX,STD

IVORY,IVORY

 1
81240-1201003

KE3#,TE31,37..DLX,SPL,STD

GRAY,GRAY

 1
81240-1201005

KE3#,TE31,37..DLX,SPL,STD

BEIGE,BEIGE

 1
81240-1201004

KE3#,TE31,37..DLX,SPL,STD

BLUE,BLUE

 1
81240-1201015

KE3#,TE31,37..DLX,SPL,STD

BEIGE,BEIGE

 1
81240-1201013

KE3#,TE31,37..DLX,SPL,STD

GRAY,GRAY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

KE3#,50,TE3#,51

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-14010

KE3#,50,TE3#,51

 1
Common parts
81259-12010
90183-04031
90183-04070
93540-14025
93540-14514
93540-54010
