TE31L-HRA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701)KE30,TE31

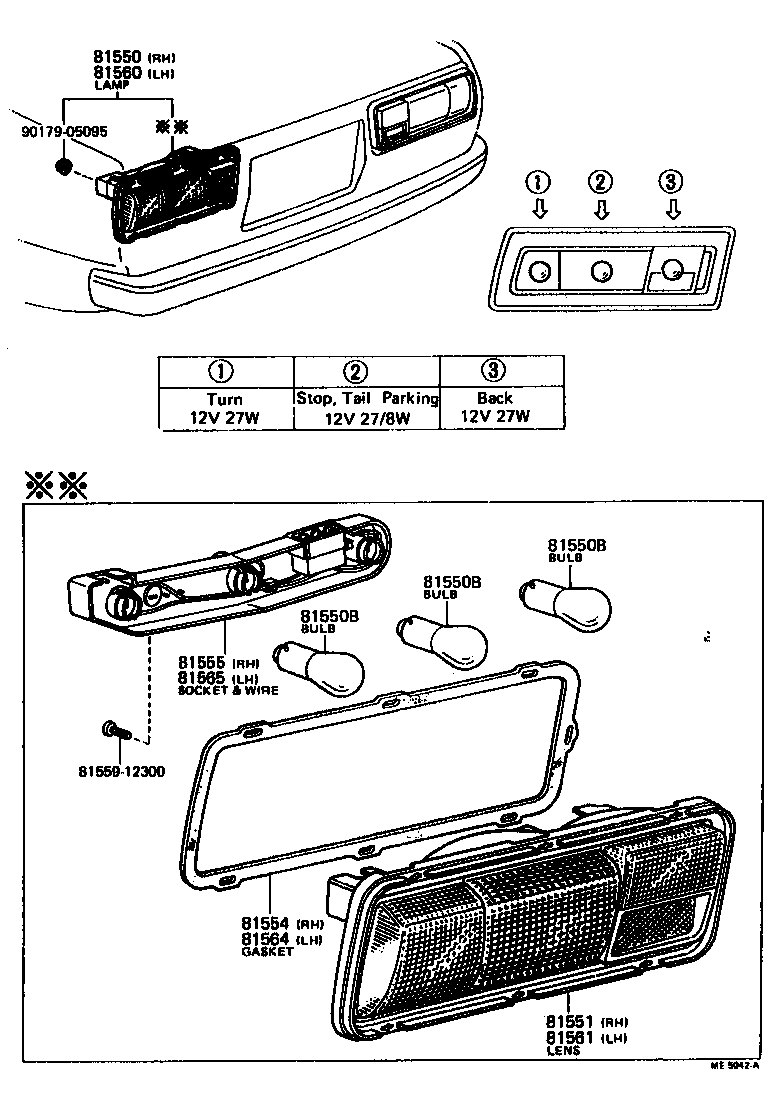

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 8155912300 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-19745

KE30,TE31

AMBER-RED-CLEAR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

KE3#,50,TE3#,51

12V 27W,12V 27W

 4
99132-21270

KE3#,50,TE3#,51

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

KE3#,50,TE3#,51

12V 27W,12V 27W

 4
99132-21270

KE3#,50,TE3#,51

12V 27/8W,12V 27/8W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

KE3#,50,TE3#,51

12V 27W,12V 27W

 4
99132-21270

KE3#,50,TE3#,51

12V 27/8W,12V 27/8W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12400

KE30,TE31

AMBER-RED-CLEAR

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12300

KE30,TE31

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12400

KE30,TE31

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19725

KE30,TE31

AMBER-RED-CLEAR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12400

KE30,TE31

AMBER-RED-CLEAR

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-12300

KE30,TE31

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12400

KE30,TE31

 1
Common parts
81559-12300
90179-05095
