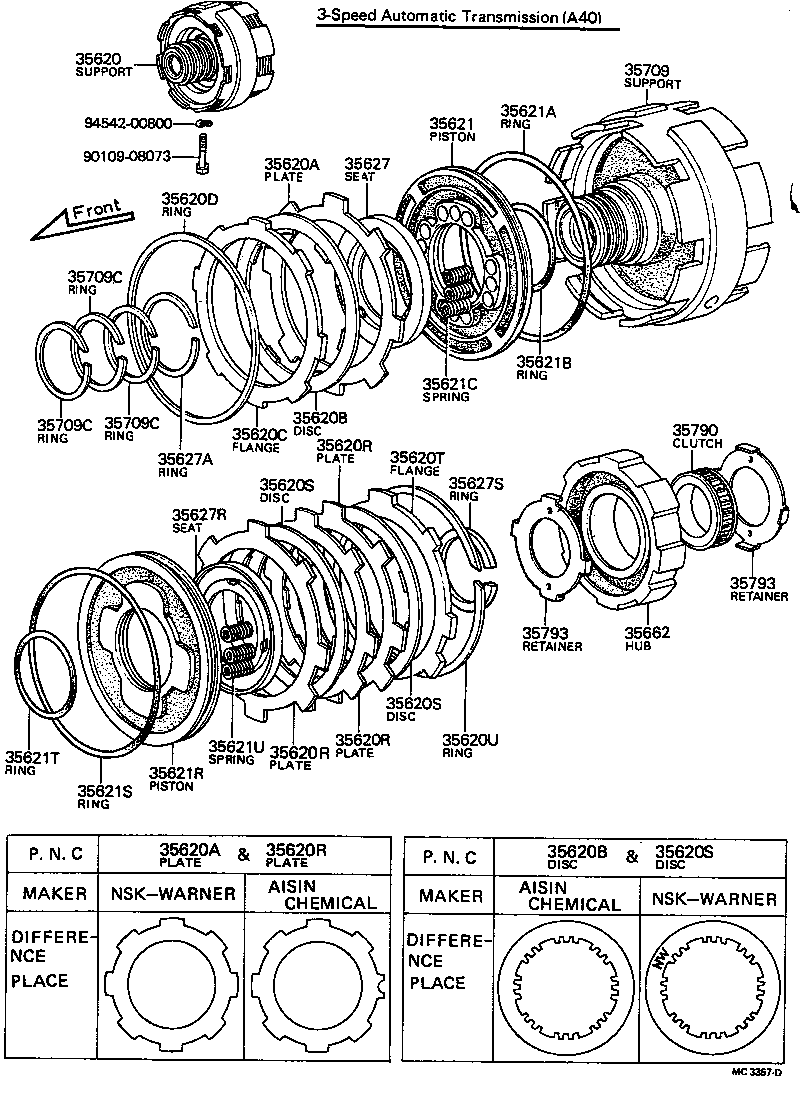

TE31L-HRA (1974)
Toyota Corolla
(7408-7908)A40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35620 - SUPPORT ASSY, CENTER | ||||
| 35620-22011 |
TE3#,51..A40 |
1 | ||
| 35620A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
TE3#,51..A40 NSK-WARNER |
1 | ||
| 35620A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
TE3#,51..A40 NSK-WARNER |
1 | ||
| 35620B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35677-22020 |
TE3#,51..A40 NSK-WARNER |
1 | ||
| 35620B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35677-22020 |
TE3#,51..A40 NSK-WARNER |
1 | ||
| 35620C - FLANGE, CLUTCH (FOR BRAKE) | ||||
| 35675-22010 |
TE3#,51..A40 |
1 | ||
| 35620D - RING (FOR BRAKE) | ||||
| 90521-99139 |
TE3#,51..A40 |
1 | ||
| 35620R - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
TE3#,51..A40 NSK-WARNER |
3 | ||
| 35620R - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
TE3#,51..A40 NSK-WARNER |
3 | ||
| 35620R - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
TE3#,51..A40 NSK-WARNER |
3 | ||
| 35620R - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
TE3#,51..A40 NSK-WARNER |
3 | ||
| 35620S - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-22020 |
TE3#,51..A40 NSK-WARNER |
2 | ||
| 35677-22030 |
TE3#,51..A40 AISIN CHEMICAL |
2 | ||
| 35620S - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-22020 |
TE3#,51..A40 NSK-WARNER |
2 | ||
| 35677-22030 |
TE3#,51..A40 AISIN CHEMICAL |
2 | ||
| 35620S - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-22020 |
TE3#,51..A40 NSK-WARNER |
2 | ||
| 35677-22030 |
TE3#,51..A40 AISIN CHEMICAL |
2 | ||
| 35620T - FLANGE, CLUTCH (FOR REAR BRAKE) | ||||
| 35675-22010 |
TE3#,51..A40 |
1 | ||
| 35620U - RING (FOR REAR BRAKE) | ||||
| 90521-99139 |
TE3#,51..A40 |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35621-22010 |
TE3#,51..A40 |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99192 |
TE3#,51..A40 |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-57188 |
TE3#,51..A40 |
1 | ||
| 35621C - SPRING (FOR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
TE3#,51..A40 |
12 | ||
| 35621R - PISTON, BRAKE (FOR REAR BRAKE) | ||||
| 35621-22010 |
TE3#,51..A40 |
1 | ||
| 35621S - RING (FOR REAR BRAKE PISTON OUTER) | ||||
| 90301-99192 |
TE3#,51..A40 |
1 | ||
| 35621T - RING (FOR REAR BRAKE PISTON INNER) | ||||
| 90301-57188 |
TE3#,51..A40 |
1 | ||
| 35621U - SPRING (FOR REAR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
TE3#,51..A40 |
12 | ||
| 35627 - SEAT, BRAKE RETURN SPRING | ||||
| 35627-22010 |
TE3#,51..A40 |
1 | ||
| 35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
TE3#,51..A40 |
1 | ||
| 35627R - SEAT, BRAKE RETURN SPPING (FOR REAR BRAKE) | ||||
| 35627-22010 |
TE3#,51..A40 |
1 | ||
| 35627S - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
TE3#,51..A40 |
1 | ||
| 35662 - HUB, BRAKE | ||||
| 35662-22011 |
TE3#,51..A40 |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-22011 |
TE3#,51..A40 |
1 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-22020 |
TE3#,51..A40 |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-22020 |
TE3#,51..A40 |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-22020 |
TE3#,51..A40 |
3 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35791-22010 |
TE3#,51..A40 |
1 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
TE3#,51..A40 |
2 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
TE3#,51..A40 |
2 | ||
| Common parts | ||||
| 90109-08073 | ||||
| 94542-00800 | ||||
