TE31L-HDFK (1977)
Toyota Corolla
Production
Aug 1977
-
Aug 1979
Engine
2TC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)TE3#,51

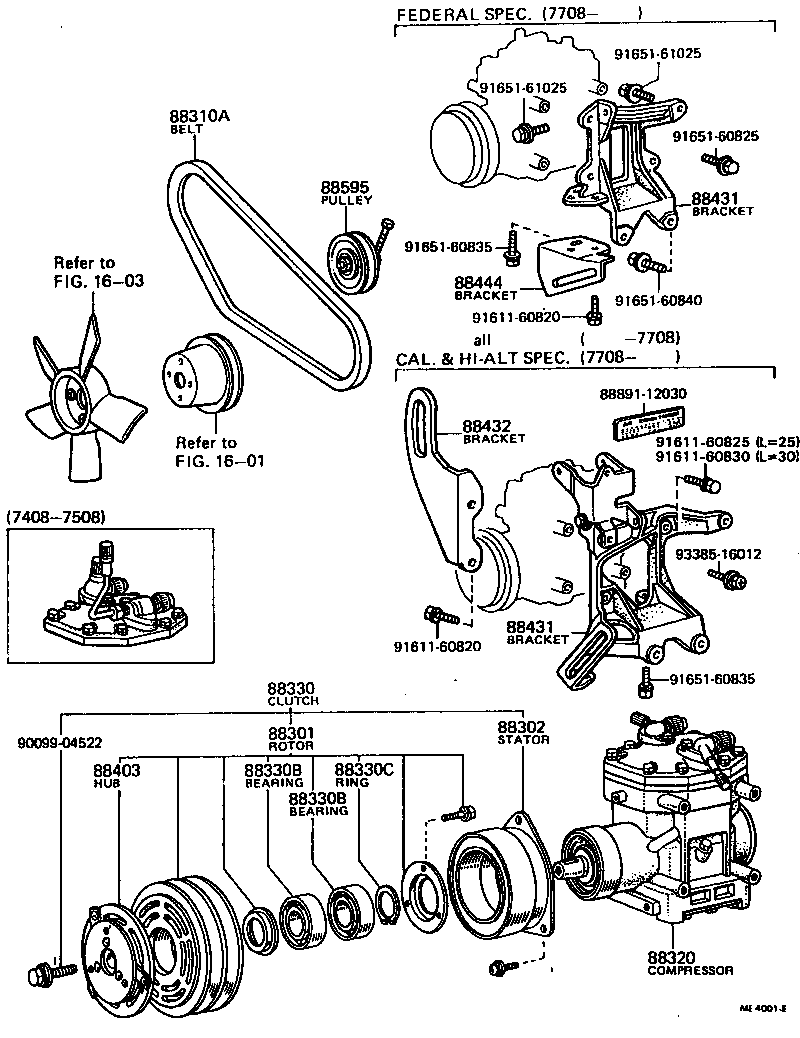

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-12040 |
TE3# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12030 |
TE3# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-10958 |
TE3# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12070 |
TE3#,51 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-12040 |
TE3# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
TE3#,51 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
TE3#,51 |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90096-90007 |
TE3#,51 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-20031 |
TE3#,51 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12110 |
TE3# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12110 |
TE3# |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-12090 |
TE3# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12020 |
TE3# |
1 | ||
| Common parts | ||||
| 88891-12030 | ||||
| 90099-04522 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60830 | ||||
| 91651-60825 | ||||
| 91651-60835 | ||||
| 91651-60840 | ||||
| 91651-61025 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1603 | ||||
