TE31L-HDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)4D

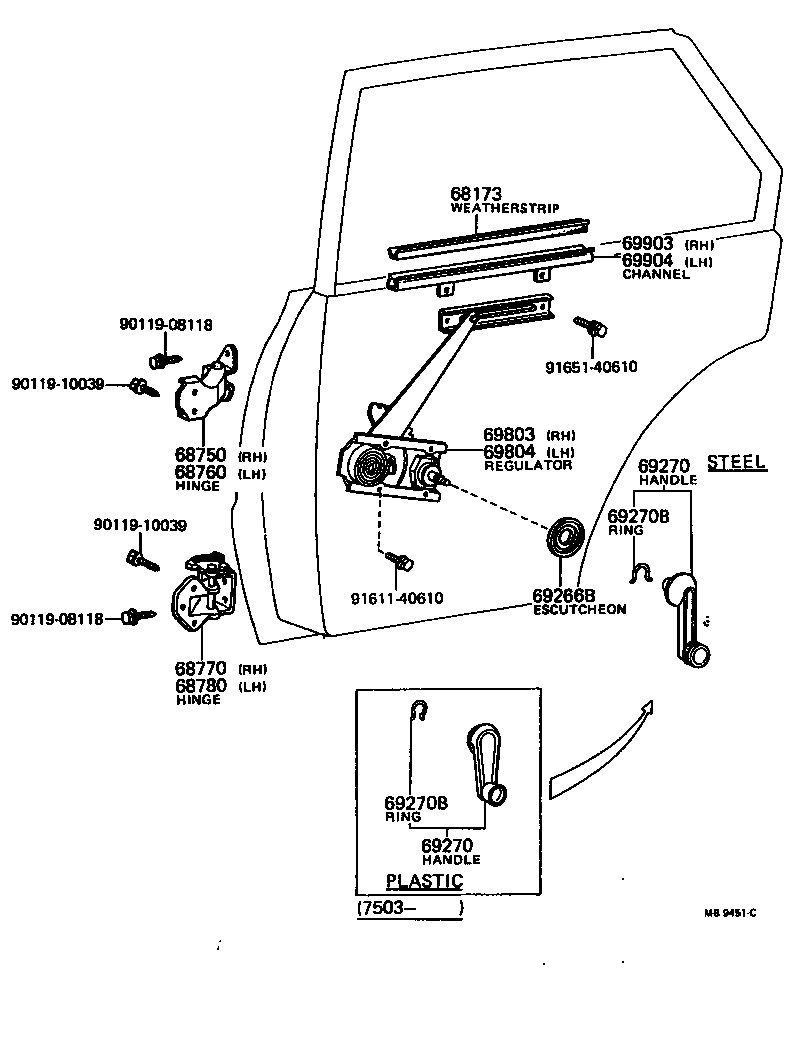

Click highlighted areas on diagram

diagram 68173 68750 68760 68770 68780 69266B 69270 69270 69270B 69270B 69803 69804 69903 69904 9011908118 9011908118 9011910039 9011910039 9161140610 9165140610
Part # Description Qty Price
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
68173-20030

KE30,TE31,38..4D

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-12050

KE30,TE31,38..4D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-12050

KE30,TE31,38..4D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-20050

KE30,TE31,38..4D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-20050

KE30,TE31,38..4D

 1
69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69266-22010

KE30,TE31,38..4D

 2
69285-2201004

KE30,TE31,38..4D

BLUE,BLUE

 2
69285-22010

KE30,TE31,38..4D

WHITE

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1201004

KE30,TE31,38..4D

BLUE,BLUE

 2
69260-14010

KE30,TE31,38..4D

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1201004

KE30,TE31,38..4D

BLUE,BLUE

 2
69260-14010

KE30,TE31,38..4D

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

KE30,TE31,38..4D

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

KE30,TE31,38..4D

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-12050

KE30,TE31,38..4D

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-12050

KE30,TE31,38..4D

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69903-20070

KE30,TE31,38..4D

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69903-20070

KE30,TE31,38..4D

 1
Common parts
90119-08118
90119-10039
91611-40610
91651-40610
