TE31L-HDFA (1974)
Toyota Corolla
Production
Aug 1974
-
Aug 1979
Engine
2TC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)A40

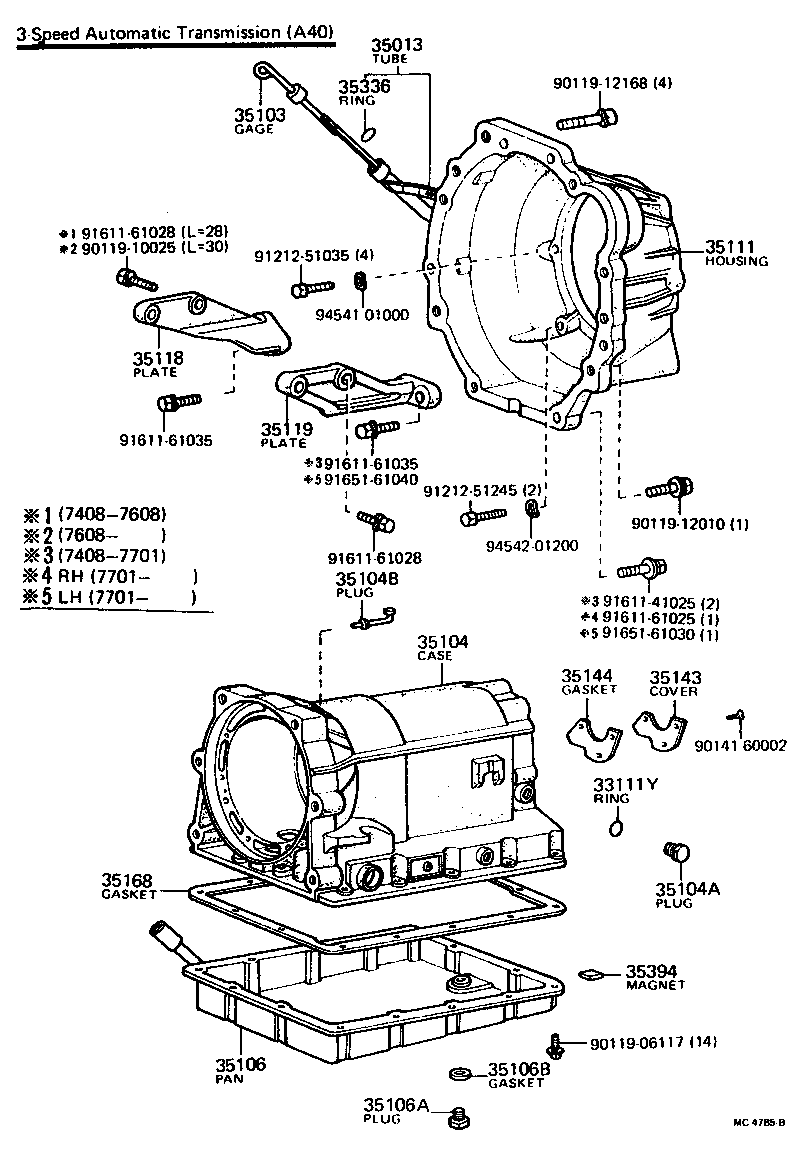

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111Y - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90301-06196 |
TE3#,51..A40 |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12080 |
TE31,38,51..A40 |
1 | ||
| 35013-12042 |
TE3#,51..A40 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12022 |
TE3#,51..A40 |
1 | ||
| 35103-12021 |
TE3#..A40 |
1 | ||
| 35103-20040 |
TE31,38,51..A40 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-22021 |
TE3#,51..A40 |
1 | ||
| 35104-22022 |
TE31,38,51..A40 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08079 |
TE3#,51..A40 |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03061 |
TE3#,51..A40 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-22020 |
TE3#,51..A40 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10078 |
TE3#,51..A40 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90202-10110 |
TE3#,51..A40 |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-12050 |
TE3#,51..A40 |
1 | ||
| 35111-12051 |
TE31,38,51..A40 |
1 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-12020 |
TE3#,51..A40 |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-12011 |
TE3#,51..A40 |
1 | ||
| 33119-12010 |
TE3#,51..A40 |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
TE3#,51..A40 |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
TE3#,51..A40 |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22010 |
TE3#,51..A40 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
TE3#,51..A40 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
TE3#,51..A40 |
1 | ||
| 35394-30010 |
TE3#..A40 |
1 | ||
| Common parts | ||||
| 90119-06117 | ||||
| 90119-10025 | ||||
| 90119-12010 | ||||
| 90119-12168 | ||||
| 90141-60002 | ||||
| 91212-51035 | ||||
| 91212-51245 | ||||
| 91611-41025 | ||||
| 91611-61025 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91651-61030 | ||||
| 91651-61040 | ||||
| 94541-01000 | ||||
| 94542-01200 | ||||
