TE31L-HDFA (1974)
Toyota Corolla

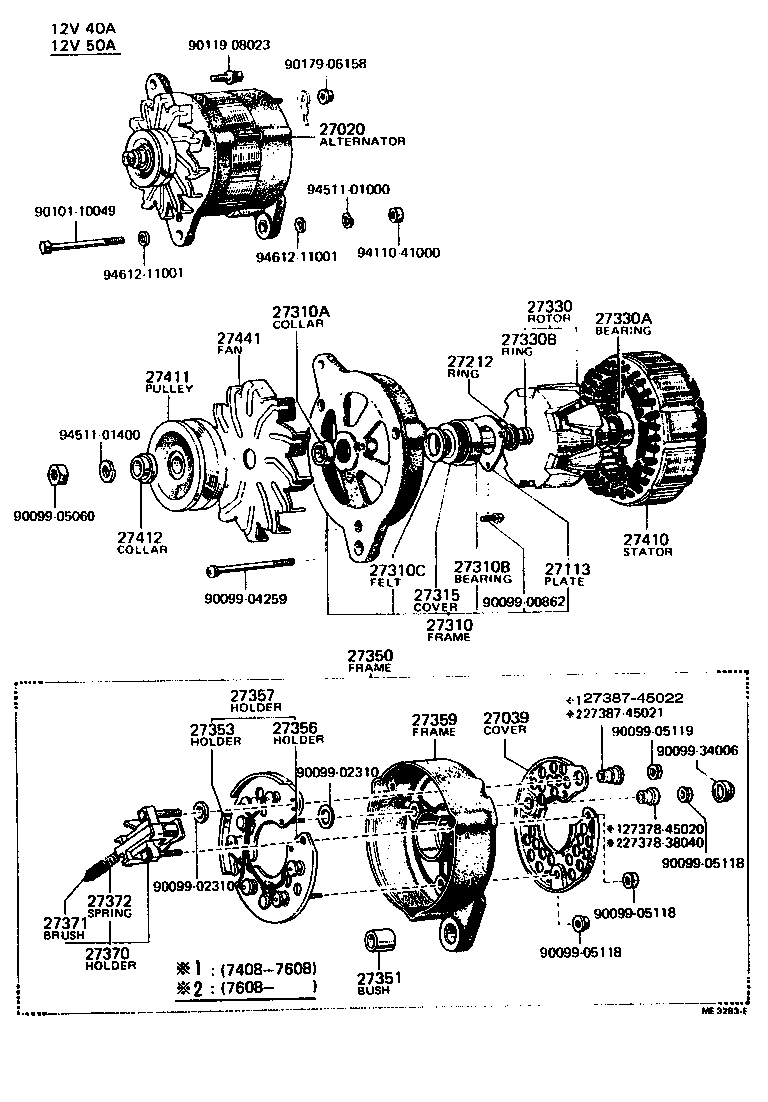

(7408-7908)2TC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-26060 |
2TC..TE3# 12V 50A |
1 | ||
| 27020-26050 |
2TC..TE3# 12V 40A |
1 | ||
| 27020-26100 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27020-26051 |
2TC..TE3# 12V 40A |
1 | ||
| 27020-28010 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27020-28011 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27020-26090 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27020-36071 |
2TC..TE3#,51 12V 40A,12V 40A |
1 | ||
| 27020-26091 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27020-26061 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27020-26090 |
2TC..TE3#,51..DLX,SPL,SR5 12V 40A |
1 | ||
| 27020-26100 |
2TC..TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27020-28012 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27020-26101 |
2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD) 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26021 |
2TC..TE3# 12V 40A |
1 | ||
| 27039-26020 |
3KC,2TC..KE3#,TE3#,51 12V 50A |
1 | ||
| 27039-45110 |
2TC..TE3#,51 |
1 | ||
| 27039-26020 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27039-36070 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27212-39050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27212-39050 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27412-45070 |
2TC..TE31..MTM;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD);3KC,2TC..KE30,50,TE37,38,51 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
2TC..TE3#,51 |
1 | ||
| 27310-26101 |
2TC..TE3#,51 |
1 | ||
| 27310-38061 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10109 |
3KC,2TC..KE3#,50,TE3#,51 6203ZZ |
1 | ||
| 90099-10114 |
3KC,2TC..KE30,50,TE3#,51 6203ZZ |
1 | ||
| 90099-10115 |
3KC,2TC..KE30,50,TE3#,51 |
1 | ||
| 90099-10109 |
2TC..TE3#,51 6203ZZ |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27330-45020 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27330-45070 |
2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD) 12V 50A |
1 | ||
| 27330-45090 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27330-26050 |
2TC..TE3#,51..DLX,SPL 12V 40A |
1 | ||
| 27330-26050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
2TC..TE3#,51 6201ZZ |
1 | ||
| 90099-10116 |
3KC,2TC..KE30,50,TE3#,51 620/VV |
1 | ||
| 90099-10111 |
3KC,2TC..KE30,50,TE3#,51 |
1 | ||
| 90099-10111 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| 90099-10103 |
3KC,2TC..KE3#,50,TE3#,51 6201ZZ |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 90099-07048 |
2TC..TE3#,51..USA |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-26060 |
2TC..TE3# 12V 50A |
1 | ||
| 27350-26051 |
2TC..TE3# 12V 40A |
1 | ||
| 27350-26090 |
2TC..TE3#,51..DLX,SPL,SR5 12V 40A |
1 | ||
| 27350-26100 |
2TC..TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27350-36071 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27350-38051 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27350-26061 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27350-26101 |
2TC..TE31..T50..SPL;2TC..TE31..SPL..CND;2TC..TE31..A40..4D..SPL;2TC..TE3#,51..DLX,SR5,STD;2TC..TE31..T40..2D..SPL..USA 12V 50A |
1 | ||
| 27350-26050 |
2TC..TE3# 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3KC,2TC..KE30,50,TE3#,51 |
1 | ||
| 27351-25010 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26101 |
2TC..TE31..T50..SPL;2TC..TE31..SPL..CND;2TC..TE31..A40..4D..SPL;2TC..TE3#,51..DLX,SR5,STD;2TC..TE31..T40..2D..SPL..USA 12V 50A |
1 | ||
| 27353-36070 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27353-44040 |
3KC,2TC..KE3#,TE3#,51 12V 50A |
1 | ||
| 27353-45020 |
2TC..TE3# 12V 40A |
1 | ||
| 27353-26100 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27353-38012 |
2TC..TE3#,51..DLX,SPL,SR5 12V 40A |
1 | ||
| 27353-38050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-45020 |
2TC..TE3# 12V 40A |
1 | ||
| 27356-26101 |
2TC..TE31..T50..SPL;2TC..TE31..SPL..CND;2TC..TE31..A40..4D..SPL;2TC..TE3#,51..DLX,SR5,STD;2TC..TE31..T40..2D..SPL..USA 12V 50A |
1 | ||
| 27356-44040 |
3KC,2TC..KE3#,TE3#,51 12V 50A |
1 | ||
| 27356-26100 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27356-38050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27356-26020 |
2TC..TE3#,51..DLX,SPL,SR5 12V 40A |
1 | ||
| 27356-36070 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-44040 |
3KC,2TC..KE3#,TE3#,51 12V 50A |
1 | ||
| 27357-26100 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27357-38012 |
2TC..TE3#,51..DLX,SPL,SR5 12V 40A |
1 | ||
| 27357-36070 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27357-38050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27357-45020 |
2TC..TE3# 12V 40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-44032 |
2TC..TE3#,51 |
1 | ||
| 27359-26050 |
2TC..TE3# |
1 | ||
| 27359-38050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27359-45122 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27359-45121 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27359-44032 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27359-28010 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-45061 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27370-45020 |
2TC..TE3# |
1 | ||
| 27370-45061 |
2TC..TE3# |
1 | ||
| 27370-38041 |
2TC..TE3#,51 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| 27371-31011 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27371-44070 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27372-31011 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| 90099-17114 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-44040 |
3KC,2TC..KE3#,TE3# 12V 50A |
1 | ||
| 27410-26020 |
2TC..TE3#,51..DLX,SPL 12V 40A |
1 | ||
| 27410-26030 |
2TC..TE3# 12V 50A |
1 | ||
| 27410-26020 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27410-26030 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27410-41080 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27410-34050 |
2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD) 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27441-45110 |
3KC,2TC..KE30,50,TE3#,51 W/HEAVY DUTY REAR DEFOGGER |
1 | ||
| 27441-34030 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45020 | ||||
| 27387-45021 | ||||
| 27387-45022 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04259 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-34006 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||

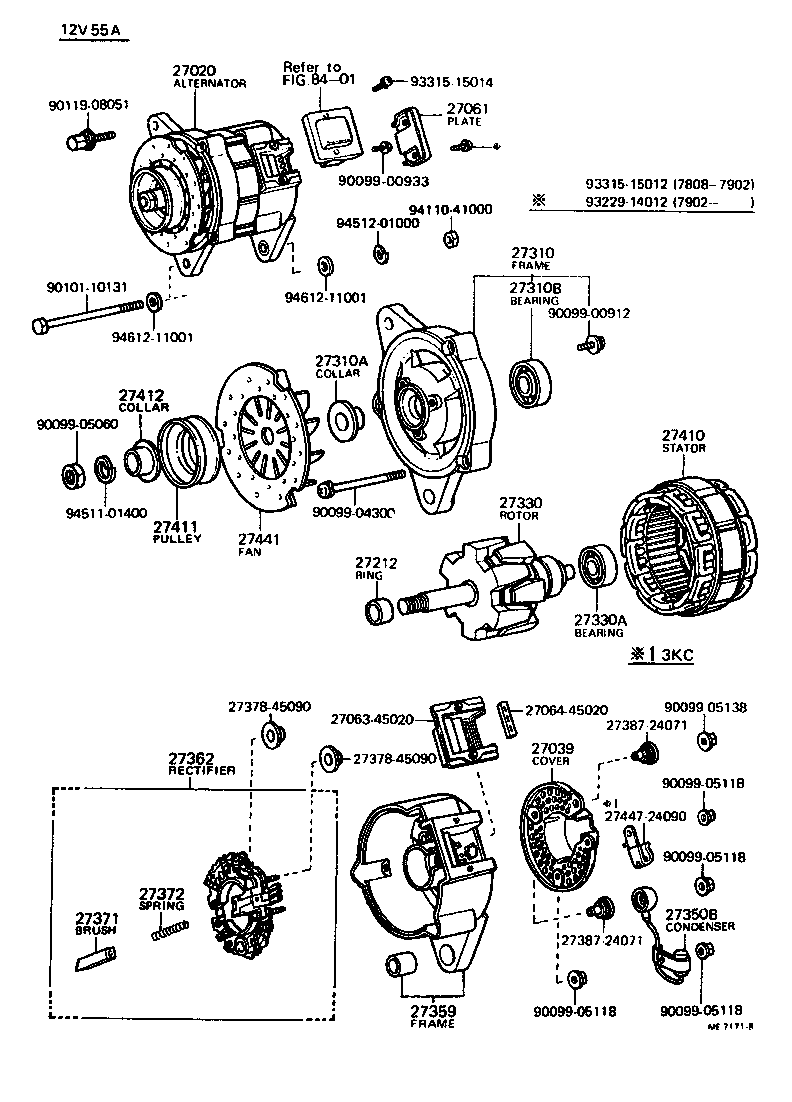

(7808-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-26060 |
2TC..TE3# 12V 50A |
1 | ||
| 27020-26050 |
2TC..TE3# 12V 40A |
1 | ||
| 27020-26100 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27020-26051 |
2TC..TE3# 12V 40A |
1 | ||
| 27020-28010 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27020-28011 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27020-26090 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27020-36071 |
2TC..TE3#,51 12V 40A,12V 40A |
1 | ||
| 27020-26091 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27020-26061 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27020-26090 |
2TC..TE3#,51..DLX,SPL,SR5 12V 40A |
1 | ||
| 27020-26100 |
2TC..TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27020-28012 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27020-26101 |
2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD) 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26021 |
2TC..TE3# 12V 40A |
1 | ||
| 27039-26020 |
3KC,2TC..KE3#,TE3#,51 12V 50A |
1 | ||
| 27039-45110 |
2TC..TE3#,51 |
1 | ||
| 27039-26020 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27039-36070 |
2TC..TE3#,51 12V 40A |
1 | ||
| 27061 - PLATE, REGULATOR COVER | ||||
| 27062-45050 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27062-45020 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27062-45020 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27212-39050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27212-39050 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27412-45070 |
2TC..TE31..MTM;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD);3KC,2TC..KE30,50,TE37,38,51 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
2TC..TE3#,51 |
1 | ||
| 27310-26101 |
2TC..TE3#,51 |
1 | ||
| 27310-38061 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10109 |
3KC,2TC..KE3#,50,TE3#,51 6203ZZ |
1 | ||
| 90099-10114 |
3KC,2TC..KE30,50,TE3#,51 6203ZZ |
1 | ||
| 90099-10115 |
3KC,2TC..KE30,50,TE3#,51 |
1 | ||
| 90099-10109 |
2TC..TE3#,51 6203ZZ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
2TC..TE3#,51 12V 50A |
1 | ||
| 27330-45020 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27330-45070 |
2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD) 12V 50A |
1 | ||
| 27330-45090 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27330-26050 |
2TC..TE3#,51..DLX,SPL 12V 40A |
1 | ||
| 27330-26050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
2TC..TE3#,51 6201ZZ |
1 | ||
| 90099-10116 |
3KC,2TC..KE30,50,TE3#,51 620/VV |
1 | ||
| 90099-10111 |
3KC,2TC..KE30,50,TE3#,51 |
1 | ||
| 90099-10111 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| 90099-10103 |
3KC,2TC..KE3#,50,TE3#,51 6201ZZ |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-44032 |
2TC..TE3#,51 |
1 | ||
| 27359-26050 |
2TC..TE3# |
1 | ||
| 27359-38050 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27359-45122 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27359-45121 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27359-44032 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27359-28010 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-41080 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27362-28010 |
2TC..TE3#,51 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| 27371-31011 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27371-44070 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27372-31011 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| 90099-17114 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-44040 |
3KC,2TC..KE3#,TE3# 12V 50A |
1 | ||
| 27410-26020 |
2TC..TE3#,51..DLX,SPL 12V 40A |
1 | ||
| 27410-26030 |
2TC..TE3# 12V 50A |
1 | ||
| 27410-26020 |
2TC..TE3#,51..USA 12V 40A |
1 | ||
| 27410-26030 |
3KC,2TC..KE3#,50,TE3#,51..DLX,SR5,STD 12V 50A |
1 | ||
| 27410-41080 |
3KC,2TC..KE30,50,TE3#,51 12V 55A |
1 | ||
| 27410-34050 |
2TC..TE31..MTM;2TC..TE37,38,51;2TC..TE31..A40..SPL..CND;2TC..TE31..A40..(DLX,STD) 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3KC,2TC..KE3#,50,TE3#,51 |
1 | ||
| 27441-45110 |
3KC,2TC..KE30,50,TE3#,51 W/HEAVY DUTY REAR DEFOGGER |
1 | ||
| 27441-34030 |
3KC,2TC..KE30,TE3#,51..USA |
1 | ||
| Common parts | ||||
| 27063-45020 | ||||
| 27064-45020 | ||||
| 27378-45090 | ||||
| 27387-24071 | ||||
| 27447-24090 | ||||
| 90099-00912 | ||||
| 90099-00933 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05138 | ||||
| 90101-10131 | ||||
| 90119-08051 | ||||
| 93229-14012 | ||||
| 93315-15012 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
