TE31L-HBK (1978)

Toyota Corolla

Production May 1978 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)KE3#,50,TE31,37,51

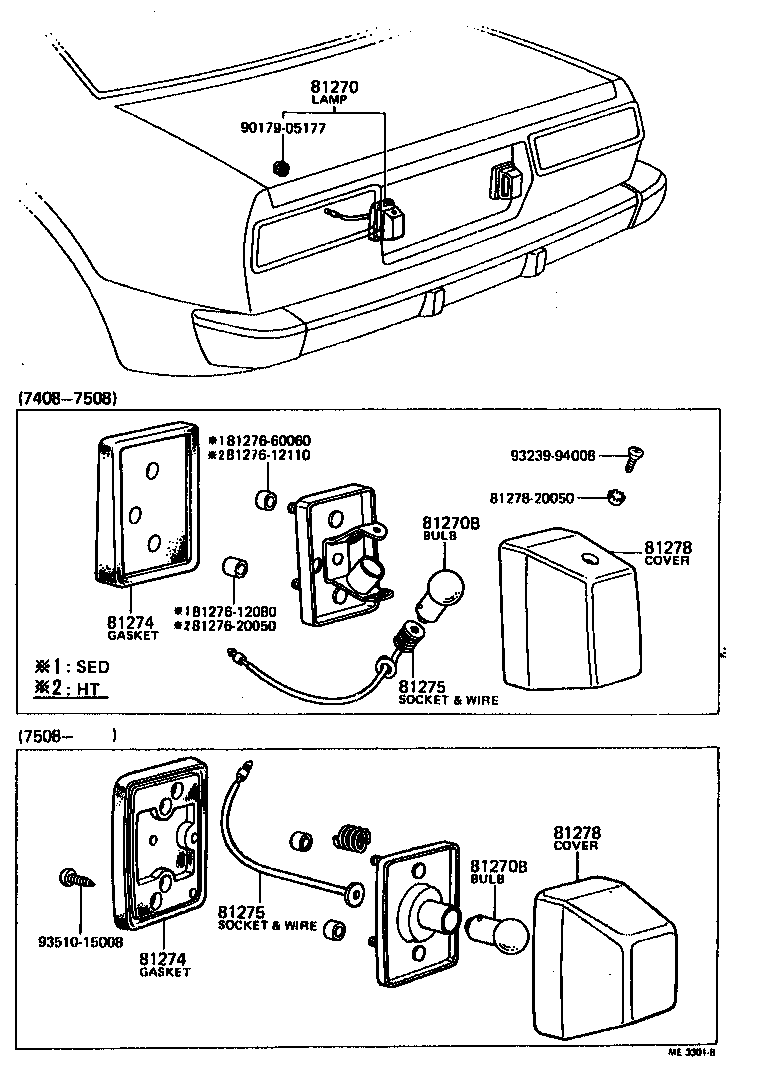

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81274 81274 81275 81275 8127612080 8127612110 8127620050 8127660060 81278 81278 8127820050 9017905177 9323994008 9351015008
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19265

KE30,TE31

RH.

 1
81690-19045

KE30,TE31

LH.

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

KE3#,50,TE3#,51

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

KE3#,50,TE3#,51

12V 7.5W,12V 7.5W

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-12080

KE30,TE31

RH.

 1
81694-12030

KE30,TE31

LH.

 1
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-12080

KE30,TE31

RH.

 1
81694-12030

KE30,TE31

LH.

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-20050

KE3#,TE31,37

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-20050

KE3#,TE31,37

 2
81278 - COVER, LICENSE PLATE LAMP
81271-20050

KE3#,TE31,37

 2
81278 - COVER, LICENSE PLATE LAMP
81271-20050

KE3#,TE31,37

 2
Common parts
81276-12080
81276-12110
81276-20050
81276-60060
81278-20050
90179-05177
93239-94008
93510-15008
