TE31L-HBFA (1977)

Toyota Corolla

Production Jan 1977 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7805)2TC..TE37,51..SR5 ; (7805-7908)2TC

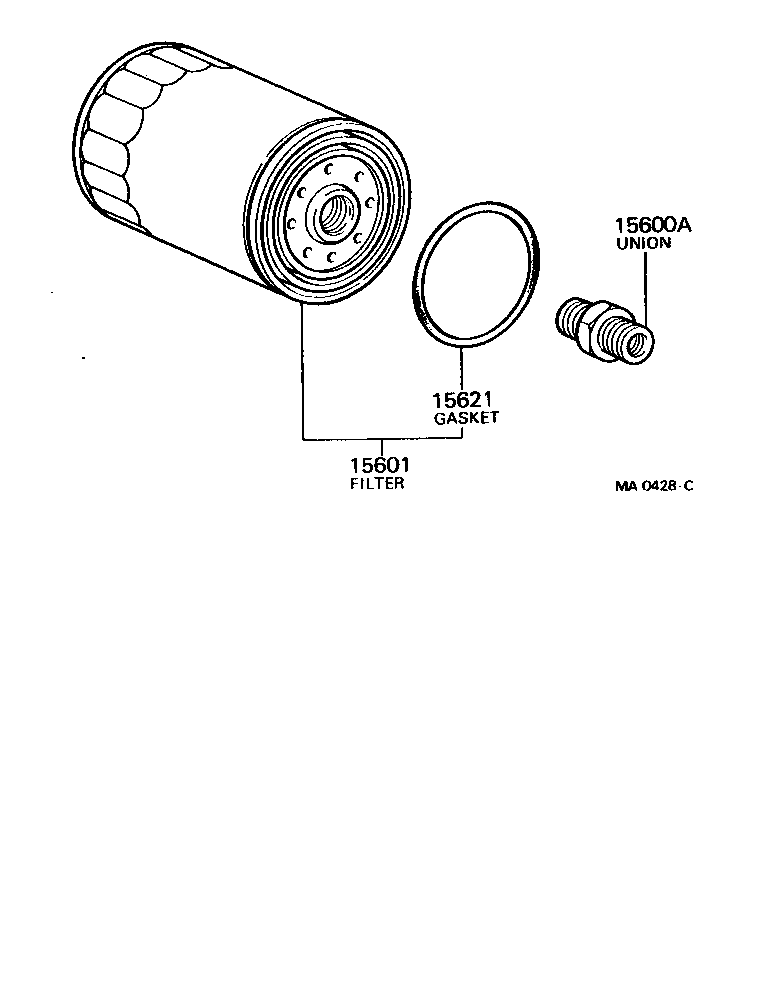

Click highlighted areas on diagram

diagram 15600A 15601 15621
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-20173

2TC..TE3#,51..DLX,SPL,STD

 1
90404-20173

2TC..TE3#,51

 1
15601 - FILTER SUB-ASSY, OIL
15600-25010

2TC..TE3#,51

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2TC..TE3#,51

 2
