TE31L-HBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
2TC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)

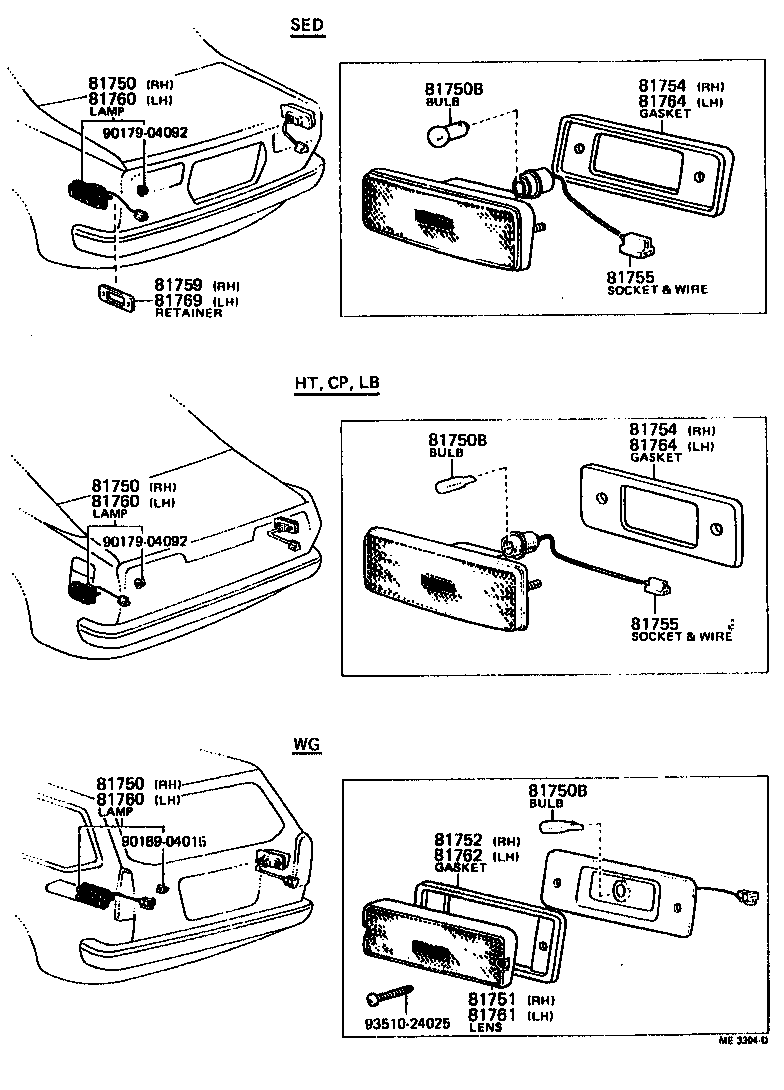

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81750 - LAMP ASSY, REAR SIDE MARKER, RH | ||||
| 81750-19095 |
KE30,TE31 |
1 | ||
| 81750-19145 |
KE30,TE31..SPL |
1 | ||
| 81750 - LAMP ASSY, REAR SIDE MARKER, RH | ||||
| 81750-19095 |
KE30,TE31 |
1 | ||
| 81750-19145 |
KE30,TE31..SPL |
1 | ||
| 81750 - LAMP ASSY, REAR SIDE MARKER, RH | ||||
| 81750-19095 |
KE30,TE31 |
1 | ||
| 81750-19145 |
KE30,TE31..SPL |
1 | ||
| 81750B - BULB, REAR SIDE MARKER LAMP | ||||
| 99132-12080 |
KE30,TE31 12V 8W,12V 8W |
2 | ||
| 81750B - BULB, REAR SIDE MARKER LAMP | ||||
| 99132-12080 |
KE30,TE31 12V 8W,12V 8W |
2 | ||
| 81750B - BULB, REAR SIDE MARKER LAMP | ||||
| 99132-12080 |
KE30,TE31 12V 8W,12V 8W |
2 | ||
| 81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH | ||||
| 81754-12070 |
KE30,TE31 |
1 | ||
| 81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH | ||||
| 81754-12070 |
KE30,TE31 |
1 | ||
| 81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP | ||||
| 81755-12070 |
KE30,TE31 |
2 | ||
| 81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP | ||||
| 81755-12070 |
KE30,TE31 |
2 | ||
| 81759 - RETAINER, REAR SIDE MARKER LAMP, RH | ||||
| 81974-12010 |
KE30,TE31 |
1 | ||
| 81760 - LAMP ASSY, REAR SIDE MARKER, LH | ||||
| 81760-19095 |
KE30,TE31 |
1 | ||
| 81760-19115 |
KE30,TE31..SPL |
1 | ||
| 81760 - LAMP ASSY, REAR SIDE MARKER, LH | ||||
| 81760-19095 |
KE30,TE31 |
1 | ||
| 81760-19115 |
KE30,TE31..SPL |
1 | ||
| 81760 - LAMP ASSY, REAR SIDE MARKER, LH | ||||
| 81760-19095 |
KE30,TE31 |
1 | ||
| 81760-19115 |
KE30,TE31..SPL |
1 | ||
| 81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH | ||||
| 81764-12070 |
KE30,TE31 |
1 | ||
| 81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH | ||||
| 81764-12070 |
KE30,TE31 |
1 | ||
| 81769 - RETAINER, REAR SIDE MARKER LAMP, LH | ||||
| 81974-12010 |
KE30,TE31 |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90189-04015 | ||||
| 93510-24025 | ||||
