TE31L-HBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

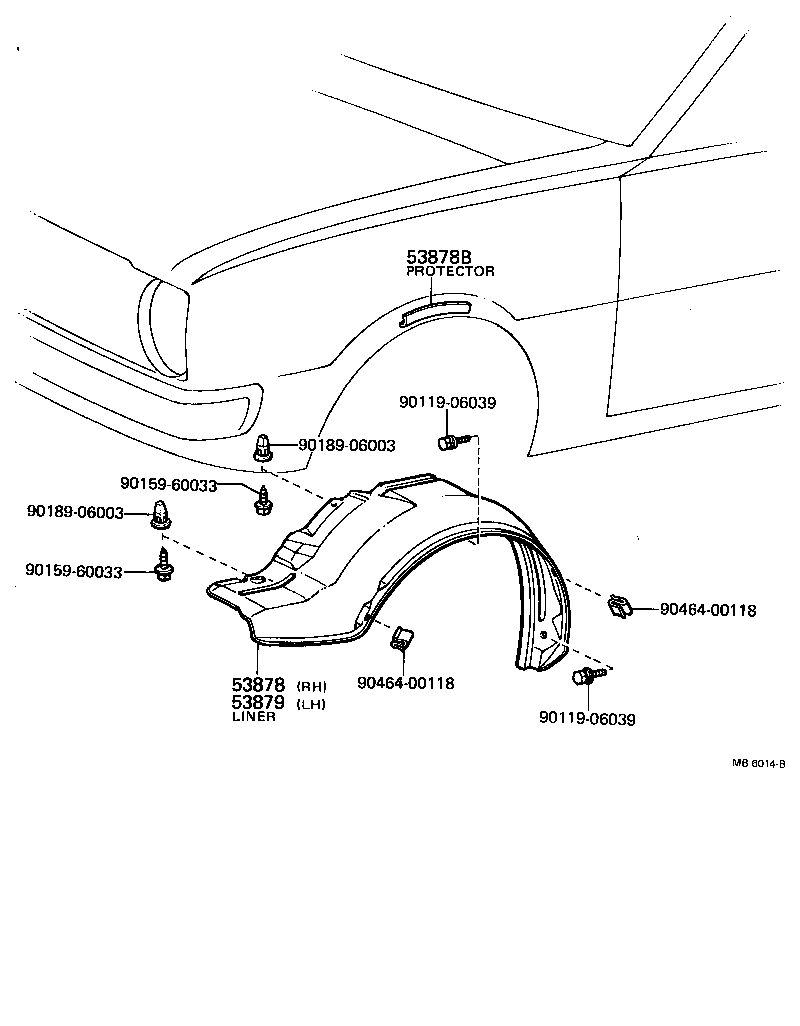

(7608-7908)

Click highlighted areas on diagram

diagram 53878 53878B 53879 9011906039 9011906039 9015960033 9015960033 9018906003 9018906003 9046400118 9046400118
Part # Description Qty Price
53878 - LINER, FRONT FENDER, RH
53875-12010

KE3#,TE3#..DLX,SPL,STD

 1
53878B - PROTECTOR, FRONT FENDER LINER
53891-12040

KE3#,TE3#

 1
53879 - LINER, FRONT FENDER, LH
53876-12010

KE3#,TE3#..DLX,SPL,STD

 1
Common parts
90119-06039
90159-60033
90189-06003
90464-00118

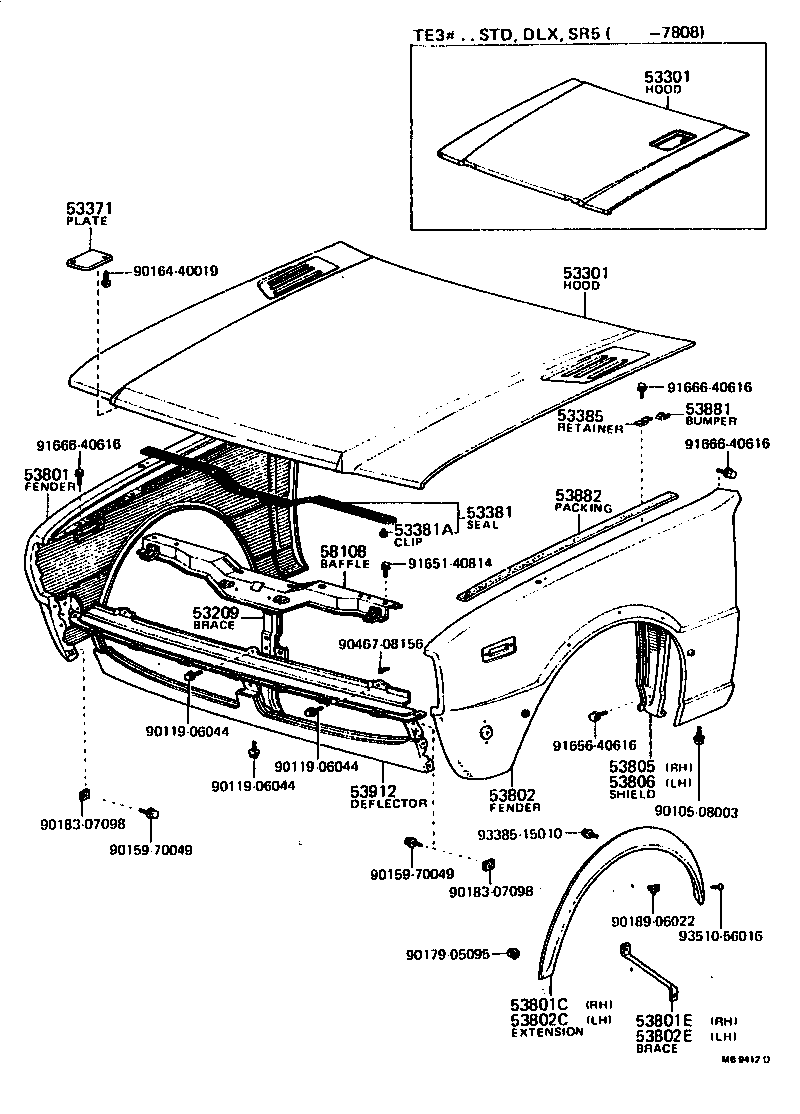

(7408-7908)KE3#,TE3#

Click highlighted areas on diagram

diagram 53209 53301 53301 53371 53381 53381A 53385 53801 53801C 53801E 53802 53802C 53802E 53805 53806 53881 53882 53912 58108 9010508003 9011906044 9011906044 9011906044 9015970049 9015970049 9016440019 9017905096 9018307098 9018307098 9018906022 9046708156 9165140814 9165640616 9166640616 9166640616 9166640616 9338515010 9351056016
Part # Description Qty Price
53209 - BRACE SUB-ASSY, HOOD LOCK
53208-12020

KE3#,TE3#

 1
53208-12030

KE30,TE3#

 1
53208-12021

KE3#,TE3#

 1
53301 - HOOD SUB-ASSY
53301-12060

TE3#

 1
53301-12110

KE30;TE31..SPL

 1
53301-12190

KE30,TE3#

 1
53301 - HOOD SUB-ASSY
53301-12060

TE3#

 1
53301-12110

KE30;TE31..SPL

 1
53301-12190

KE30,TE3#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12010

TE31..SPL

FOR COOLER

 1
53381-12050

TE31..SPL

FOR COOLER

 1
53381-12010

KE3#;TE31..SPL

 1
53381-12070

KE30,TE3#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08008

TE3#,51

 12
90467-08011

TE3#,51;KE30..CND

 12
90467-07050

KE3#,TE3#,51

 8
90467-08011

KE30,TE3#,51

 12
90467-08008

KE3#,TE3#,51

 8
53385 - RETAINER, HOOD, BUMPER
53385-14010

KE3#,50,TE3#,51

RH.

 2
53386-14010

KE3#,50,TE3#,51

LH.

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-12919

KE30,TE31,38

 1
53801-12905

KE3#,TE3#..DLX,SPL,STD

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-12905

KE3#,TE3#..DLX,SPL,STD

 1
53802-12919

KE30,TE31,38

 1
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-12040

KE3#,TE3#

 1
53805-12040

KE30,TE3#

USA SPEC.

 1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-12040

KE30,TE3#

USA SPEC.

 1
53806-12040

KE3#,TE3#

 1
53881 - BUMPER, FENDER TO HOOD
53384-14010

KE3#,50,TE3#,51

 4
53882 - PACKING, FRONT FENDER MAIN
53882-12030

KE3#,50,TE3#,51

 2
53912 - DEFLECTOR, FRONT BUMPER STONE
53901-12020

KE3#,TE3#

 1
53901-12030

KE30,TE3#

 1
53901-12010

KE3#,TE3#

 1
58108 - BAFFLE SUB-ASSY, RADIATOR UPPER
53205-12060

KE3#,TE3#

 1
Common parts
90105-08003
90119-06044
90159-70049
90164-40019
90179-05096
90183-07098
90189-06022
90467-08156
91651-40814
91656-40616
91666-40616
93385-15010
93510-56016
