KE50L-LKDA (1977)

Toyota Corolla

Production Jan 1977 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

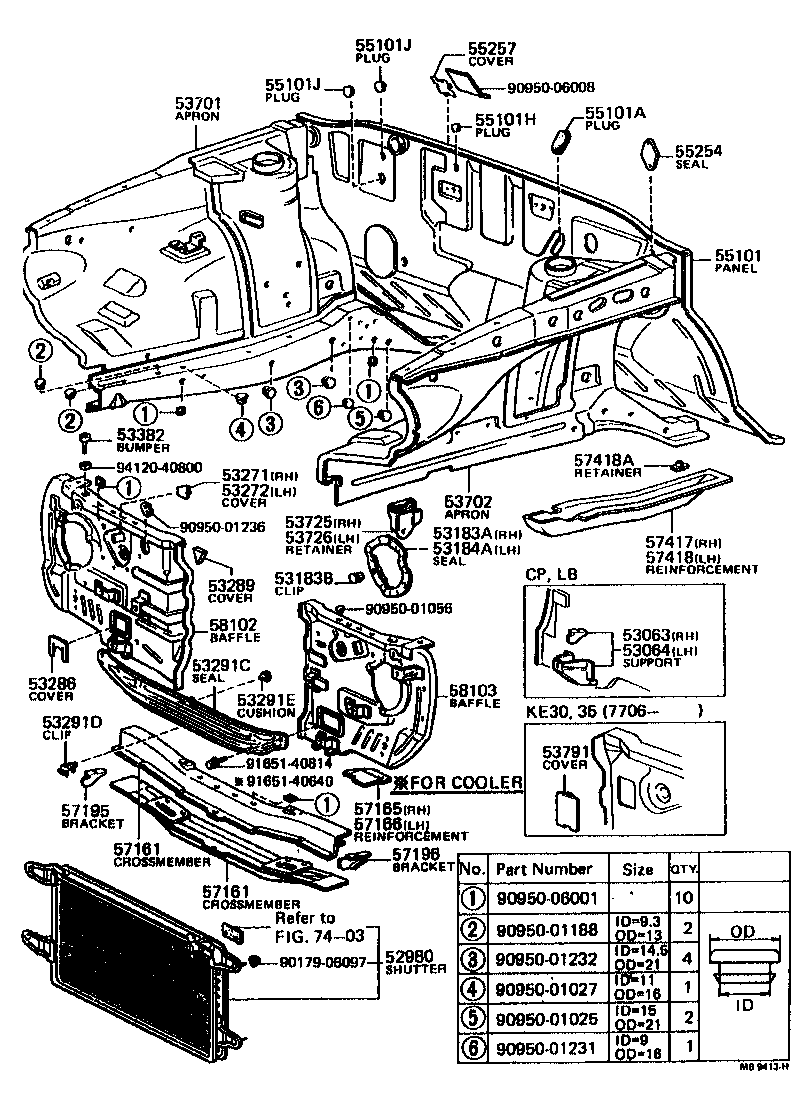

Click highlighted areas on diagram

diagram 52980 53063 53064 53183A 53183B 53184A 53271 53272 53286 53289 53291C 53291D 53291E 53382 53701 53702 53725 53726 53791 55101 55101A 55101H 55101J 55101J 55254 55257 57161 57161 57165 57166 57195 57196 57417 57418 57418A 58102 58103 7403 9017906097 9095001025 9095001027 9095001056 9095001188 9095001231 9095001232 9095001236 9095006001 9095006008 9165140640 9165140814 9412040800
Part # Description Qty Price
53382 - BUMPER, HOOD, FRONT
53382-20011

KE3#,50,TE3#,51

 2
55101 - PANEL SUB-ASSY, DASH
55101-12170

KE3#,50

 1
57161 - CROSSMEMBER, FRONT
57161-12901

KE3#,50,TE3#,51

UPPER

 1
57162-12902

KE3#,50,TE3#,51

LOWER

 1
57161 - CROSSMEMBER, FRONT
57161-12901

KE3#,50,TE3#,51

UPPER

 1
57162-12902

KE3#,50,TE3#,51

LOWER

 1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57167-12020

KE3#,50,TE3#,51

 1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57168-12020

KE3#,50,TE3#,51

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12010

KE3#,50,TE3#,51

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12010

KE3#,50,TE3#,51

 1
Common parts
90179-06097
90950-01025
90950-01027
90950-01056
90950-01188
90950-01231
90950-01232
90950-01236
90950-06001
90950-06008
91651-40640
91651-40814
94120-40800
Linked diagrams
7403
