KE50L-LKDA (1977)

Toyota Corolla

Production Jan 1977 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)K40

Click highlighted areas on diagram

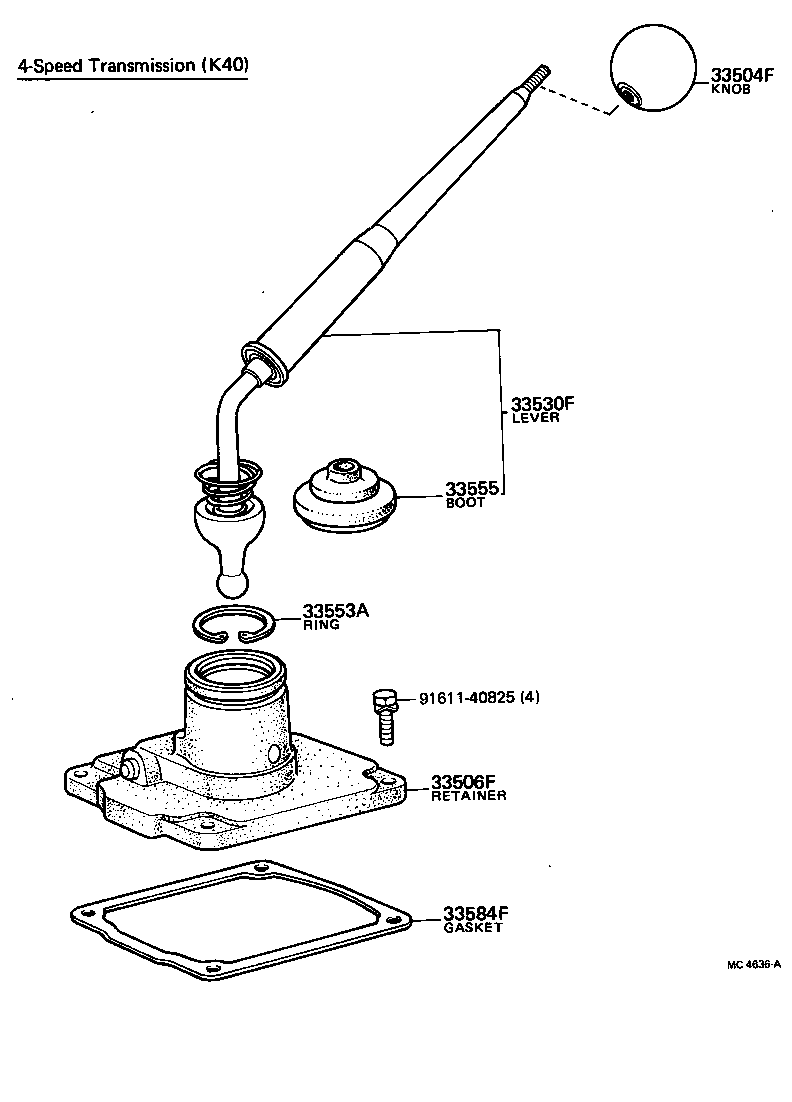

diagram 33504F 33506F 33530F 33553A 33555 33584F 9161140825
Part # Description Qty Price
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-12040

KE3#,50..K40

 1
33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET)
90521-40124

KE3#,50..K40

 1
33555 - BOOT, SHIFT LEVER
33555-12030

KE3#,50..K40

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-12030

KE3#,50..K40

 1
Common parts
91611-40825
