KE50L-LKDA (1977)

Toyota Corolla

Production Jan 1977 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC..DLX,STD

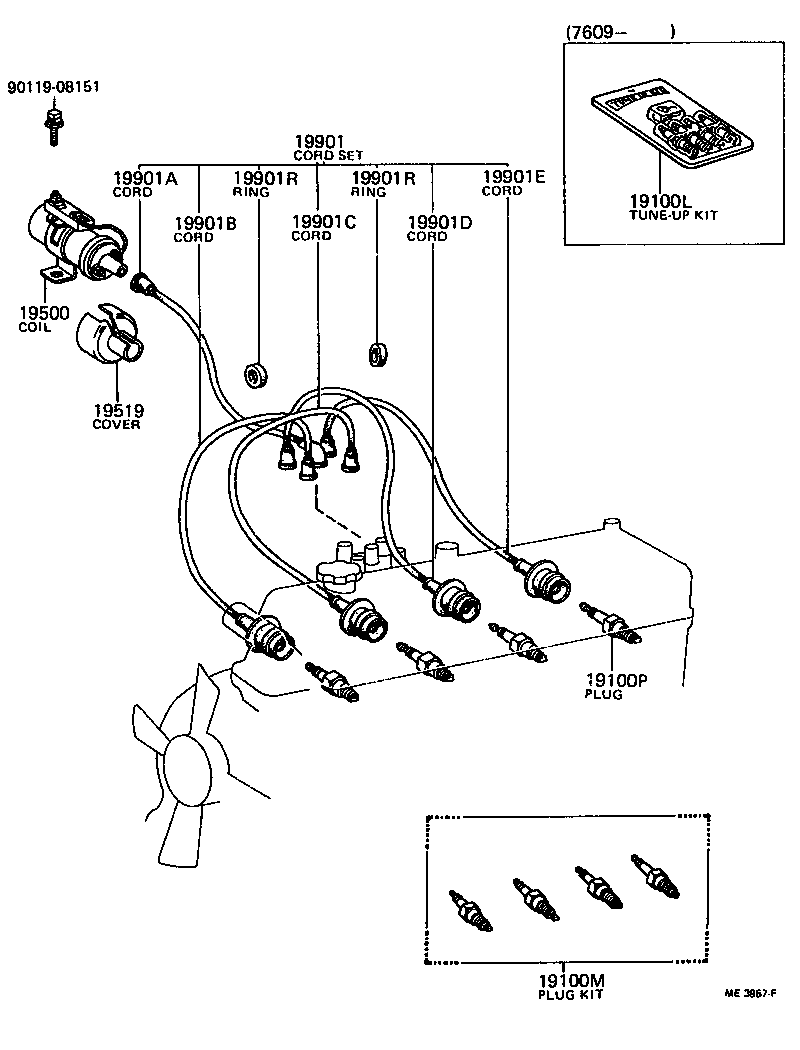

Click highlighted areas on diagram

diagram 19100L 19100M 19100P 19500 19519 19901 19901A 19901B 19901C 19901D 19901E 19901R 19901R 9011908151
Part # Description Qty Price
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21070

3KC..KE3#,50

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12084

3KC..KE3#,50

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12083

3KC..KE3#,50

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12083

3KC..KE3#,50

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12084

3KC..KE3#,50

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

3KC..KE3#,50

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

3KC..KE3#,50

 1
Common parts
90119-08151
