KE35L-KDA (1974)
Toyota Corolla
Production
Aug 1974
-
Aug 1977
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)KE35,TE37

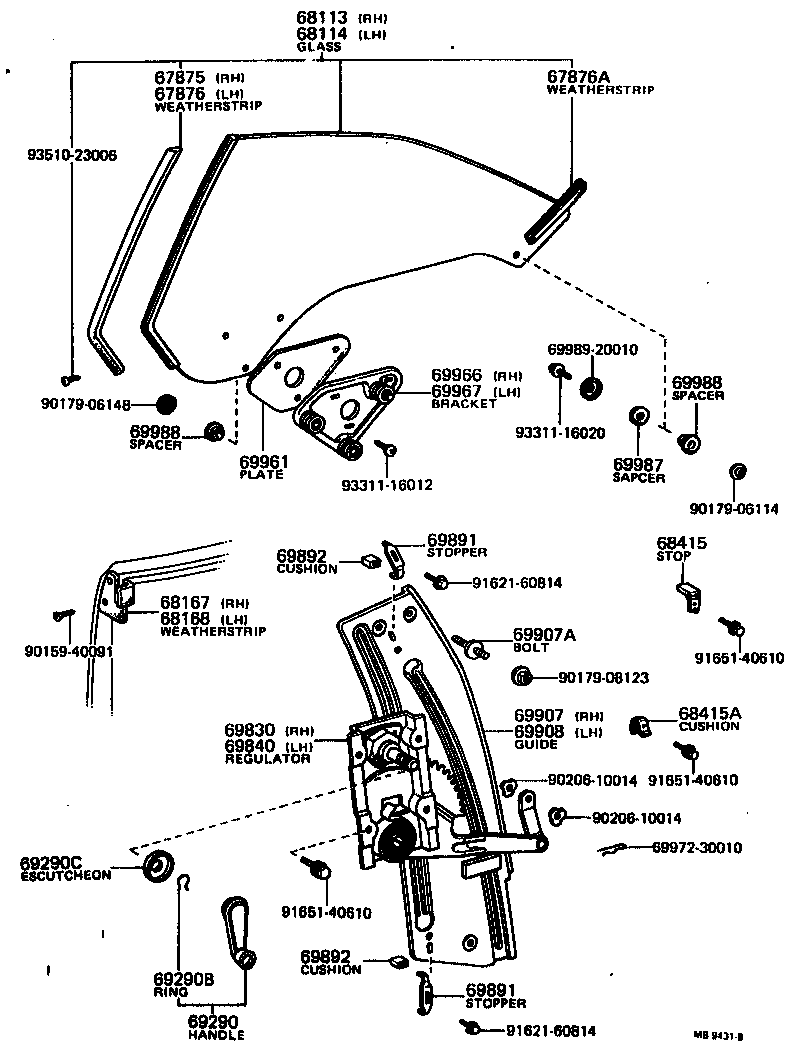

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67875 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH | ||||
| 67081-12010 |
KE35,TE37 |
1 | ||
| 67876 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH | ||||
| 67082-12010 |
KE35,TE37 |
1 | ||
| 67876A - WEATHERSTRIP, QUARTER WINDOW GLASS, LOWER | ||||
| 68169-14010 |
KE35,TE37 |
2 | ||
| 68113 - GLASS, QUARTER WINDOW, RH | ||||
| 62071-12090 |
KE35,TE37 TN.TP.T=4.0 |
1 | ||
| 68114 - GLASS, QUARTER WINDOW, LH | ||||
| 62072-12090 |
KE35,TE37 TN.TP.T=4.0 |
1 | ||
| 68167 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH | ||||
| 67941-12010 |
KE35,TE37 |
1 | ||
| 68168 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH | ||||
| 67942-12010 |
KE35,TE37 |
1 | ||
| 68415 - STOPPER, REAR QUARTER GLASS, UPPER | ||||
| 67241-20020 |
KE35,TE37 |
2 | ||
| 68415A - CUSHION(FOR QUARTER WINDOW GLASS STOP) | ||||
| 68139-12010 |
KE35,TE37 |
2 | ||
| 69290 - HANDLE ASSY, QUARTER WINDOW REGULATOR | ||||
| 69260-12010 |
KE35,TE37 PLASTIC |
2 | ||
| 69260-14010 |
KE35,TE37 STEEL |
2 | ||
| 69260-1201001 |
KE35,TE37 BLACK,BLACK |
2 | ||
| 69260-1201006 |
KE35,TE37 BROWN,BROWN |
2 | ||
| 69290B - RING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE) | ||||
| 90520-01274 |
KE35,TE37 |
2 | ||
| 69290C - ESCUTCHEON(FOR QUARTER WINDOW REGULATOR HANDLE) | ||||
| 69266-22010 |
KE35,TE37 |
2 | ||
| 69285-22010 |
KE35,TE37 WHITE |
2 | ||
| 69285-2201006 |
KE35,TE37 BROWN,BROWN |
2 | ||
| 69830 - REGULATOR ASSY, REAR QUARTER WINDOW, RH | ||||
| 69830-12060 |
KE35,TE37 |
1 | ||
| 69830-12061 |
KE35,TE37 |
1 | ||
| 69840 - REGULATOR ASSY, REAR QUARTER WINDOW, LH | ||||
| 69840-12060 |
KE35,TE37 |
1 | ||
| 69840-12061 |
KE35,TE37 |
1 | ||
| 69891 - STOPPER, QUARTER WINDOW GLASS, UPPER | ||||
| 69891-14020 |
KE35,TE37 |
4 | ||
| 69891 - STOPPER, QUARTER WINDOW GLASS, UPPER | ||||
| 69891-14020 |
KE35,TE37 |
4 | ||
| 69892 - CUSHION,QUARTER WINDOW GLASS STOPPER | ||||
| 69892-14020 |
KE35,TE37 |
4 | ||
| 69892 - CUSHION,QUARTER WINDOW GLASS STOPPER | ||||
| 69892-14020 |
KE35,TE37 |
4 | ||
| 69907 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH | ||||
| 67435-12010 |
KE35,TE37 |
1 | ||
| 69907A - BOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE) | ||||
| 90116-08294 |
KE35,TE37 |
6 | ||
| 69908 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH | ||||
| 67436-12010 |
KE35,TE37 |
1 | ||
| 69961 - PLATE, REAR QUARTER GLASS BRACKET | ||||
| 69985-12010 |
KE35,TE37 |
2 | ||
| 69966 - BRACKET, REAR QUARTER WINDOW GLASS, RH | ||||
| 69905-12030 |
KE35,TE37 |
1 | ||
| 69967 - BRACKET, REAR QUARTER WINDOW GLASS, LH | ||||
| 69906-12030 |
KE35,TE37 |
1 | ||
| 69987 - SPACER, QUARTER GLASS BELT | ||||
| 69988-20010 |
KE35,TE37 |
2 | ||
| 69988 - SPACER, QUARTER WINDOW GLASS | ||||
| 69988-30010 |
KE35,TE37 |
8 | ||
| 69988 - SPACER, QUARTER WINDOW GLASS | ||||
| 69988-30010 |
KE35,TE37 |
8 | ||
| Common parts | ||||
| 69972-30010 | ||||
| 69989-20010 | ||||
| 90159-40091 | ||||
| 90179-06114 | ||||
| 90179-06148 | ||||
| 90179-08123 | ||||
| 90206-10014 | ||||
| 91621-60814 | ||||
| 91651-40610 | ||||
| 93311-16012 | ||||
| 93311-16020 | ||||
| 93510-23006 | ||||
