KE30L-MBFA (1976)
Toyota Corolla
(7408-7908)

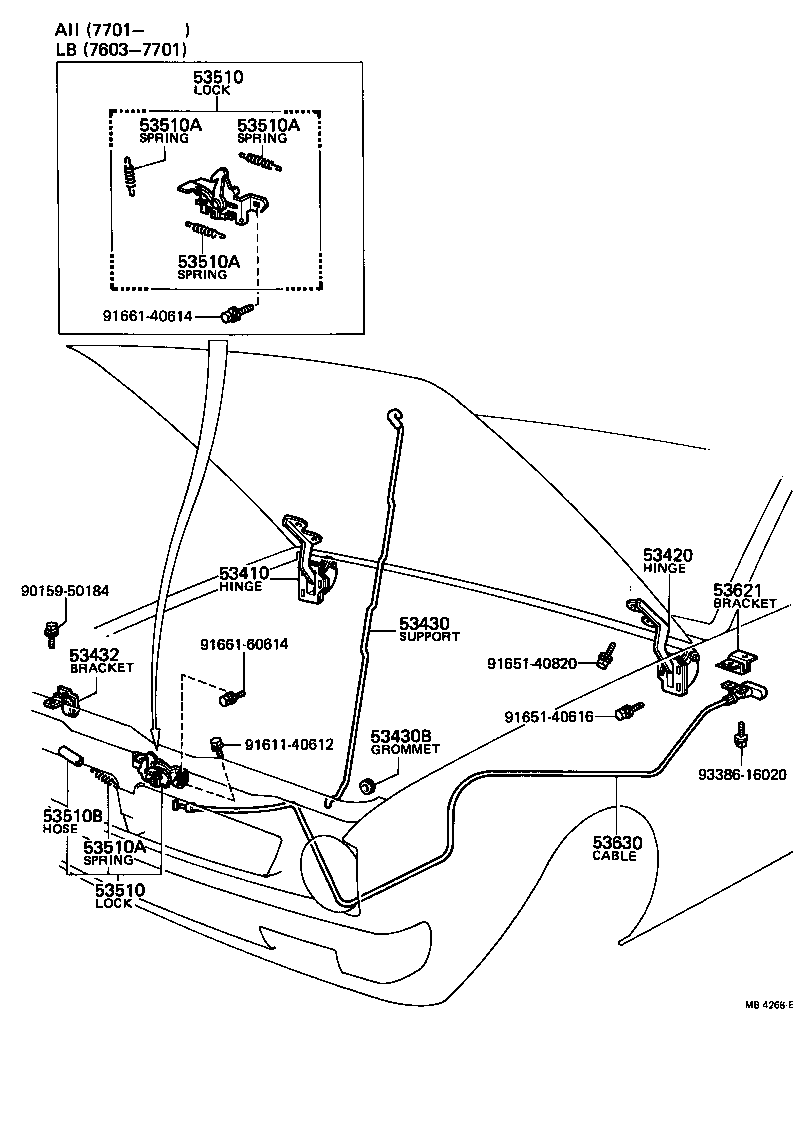

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12020 |
KE3#,TE3# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12020 |
KE3#,TE3# |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53451-12010 |
KE3#,TE3# |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15296 |
KE3#,50,TE3#,51 |
1 | ||
| 90480-15002 |
KE30,50,TE3#,51 |
1 | ||
| 53432 - BRACKET, HOOD SUPPORT CLAMP | ||||
| 53455-12010 |
KE3#,TE3# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12081 |
KE3#;TE31..SPL |
1 | ||
| 53510-12070 |
KE3#;TE31..SPL |
1 | ||
| 53510-12150 |
KE30,TE3# |
1 | ||
| 53510-12082 |
KE30;TE31..SPL |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-12081 |
KE3#;TE31..SPL |
1 | ||
| 53510-12070 |
KE3#;TE31..SPL |
1 | ||
| 53510-12150 |
KE30,TE3# |
1 | ||
| 53510-12082 |
KE30;TE31..SPL |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10196 |
KE3#,TE3# L=43 |
1 | ||
| 90506-09007 |
KE3#,50,TE3#,51 L=35 |
1 | ||
| 90506-10487 |
KE3#,50,TE3#,51 L=43 |
1 | ||
| 90506-09008 |
KE30,50,TE3#,51 WD=0.9,CW=21.25,WD=0.9 |
1 | ||
| 90506-23004 |
KE3#,TE3# L=65 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10196 |
KE3#,TE3# L=43 |
1 | ||
| 90506-09007 |
KE3#,50,TE3#,51 L=35 |
1 | ||
| 90506-10487 |
KE3#,50,TE3#,51 L=43 |
1 | ||
| 90506-09008 |
KE30,50,TE3#,51 WD=0.9,CW=21.25,WD=0.9 |
1 | ||
| 90506-23004 |
KE3#,TE3# L=65 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10196 |
KE3#,TE3# L=43 |
1 | ||
| 90506-09007 |
KE3#,50,TE3#,51 L=35 |
1 | ||
| 90506-10487 |
KE3#,50,TE3#,51 L=43 |
1 | ||
| 90506-09008 |
KE30,50,TE3#,51 WD=0.9,CW=21.25,WD=0.9 |
1 | ||
| 90506-23004 |
KE3#,TE3# L=65 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10196 |
KE3#,TE3# L=43 |
1 | ||
| 90506-09007 |
KE3#,50,TE3#,51 L=35 |
1 | ||
| 90506-10487 |
KE3#,50,TE3#,51 L=43 |
1 | ||
| 90506-09008 |
KE30,50,TE3#,51 WD=0.9,CW=21.25,WD=0.9 |
1 | ||
| 90506-23004 |
KE3#,TE3# L=65 |
1 | ||
| 53510B - HOSE(FOR HOOD LOCK) | ||||
| 90446-12209 |
KE3#,TE3# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-12091 |
KE3#,50,TE3#,51 |
1 | ||
| 53630-12090 |
KE3#,TE3# |
1 | ||
| 53630-12092 |
KE30,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90159-50184 | ||||
| 91611-40612 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 91661-40614 | ||||
| 91661-60614 | ||||
| 93386-16020 | ||||
