KE30L-MBFA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

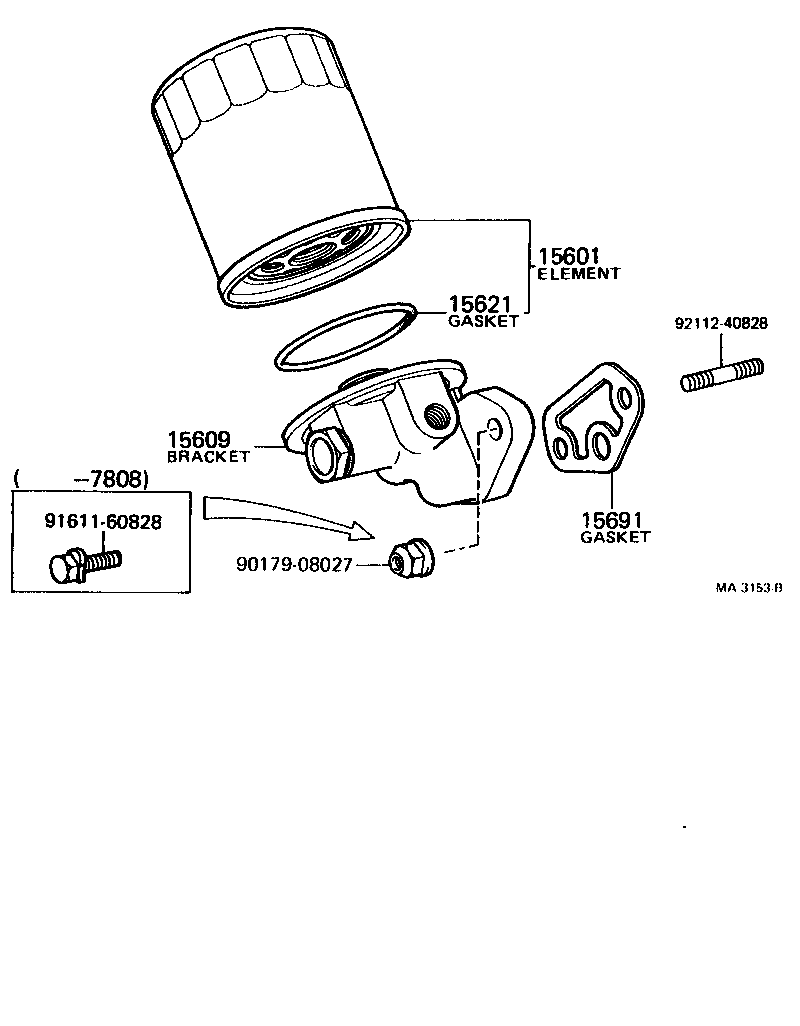

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9017908027 9161160828 9211240828
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-33020

3KC..KE3#,50

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-22012

3KC..KE3#,50

 1
15621 - GASKET, OIL FILTER BODY
15621-22010

3KC..KE3#,50

 1
15691 - GASKET, OIL FILTER
15691-22010

3KC..KE3#,50

 1
Common parts
90179-08027
91611-60828
92112-40828
