KE30L-MBFA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

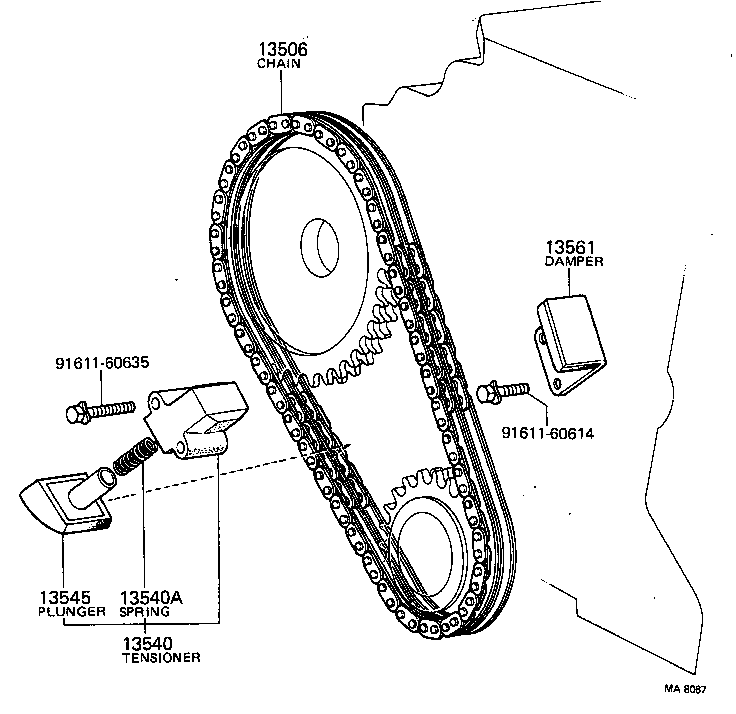

Click highlighted areas on diagram

diagram 13506 13540 13540A 13545 13561 9161160614 9161160635
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-22010

3KC..KE3#,50

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-22012

3KC..KE3#,50

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

3KC..KE3#,50

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-22010

3KC..KE3#,50

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-22010

3KC..KE3#,50

 1
Common parts
91611-60614
91611-60635
