KE30L-MBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2D

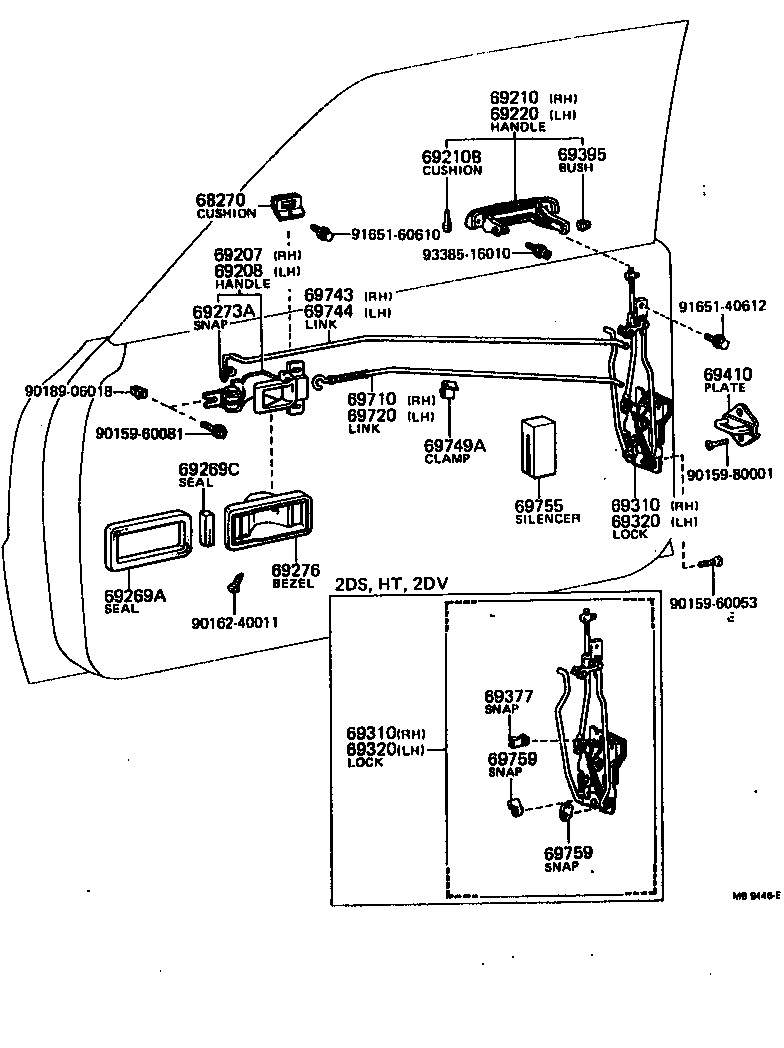

Click highlighted areas on diagram

diagram 68270 69207 69208 69210 69210B 69220 69269A 69269C 69273A 69276 69310 69310 69320 69320 69377 69395 69410 69710 69720 69743 69744 69749A 69755 69759 69759 9015960053 9015960081 9015980001 9016240011 9018906018 9165140612 9165160610 9338516010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69207-20021

KE3#,TE3#..2D

 1
69205-1203005

KE3#,50,TE31,37,51..2D

BEIGE,BEIGE

 1
69205-1203004

KE30,50,TE31,37,51..2D

BLUE,BLUE

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69208-20011

KE3#,TE3#..2D

 1
69206-1203005

KE3#,50,TE31,37,51..2D

BEIGE,BEIGE

 1
69206-1203004

KE30,50,TE31,37,51..2D

BLUE,BLUE

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12030

KE3#,50,TE3#,51

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

KE3#,50,TE3#,51

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12030

KE3#,50,TE3#,51

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269-12020

KE3#,50,TE31,37,51..2D

FOR ARCTIC

 2
69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69289-12010

KE3#,50,TE3#,51

FOR ARCTIC

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-20011

KE3#,TE3#..2D

 2
69276-2001105

KE3#,50,TE31,37,51..2D

BEIGE,BEIGE

 2
69276-2001104

KE30,50,TE31,37,51..2D

BLUE,BLUE

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12040

KE3#,TE3#..2D

 1
69310-12041

KE30,TE31,37..2D

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12040

KE3#,TE3#..2D

 1
69310-12041

KE30,TE31,37..2D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12040

KE3#,TE3#..2D

 1
69320-12041

KE30,TE31,37..2D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12040

KE3#,TE3#..2D

 1
69320-12041

KE30,TE31,37..2D

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KE30,TE3#

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-22010

KE3#,50,TE3#,51

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20050

KE3#,TE3#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-12050

KE3#,TE3#..2D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-12050

KE3#,TE3#..2D

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-12020

KE3#,TE3#..2D

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-12020

KE3#,TE3#..2D

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12010

KE3#,50,TE3#,51..2D

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12011

KE3#,50,TE3#,51

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KE30,TE3#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KE30,TE3#

 2
Common parts
90159-60053
90159-60081
90159-80001
90162-40011
90189-06018
91651-40612
91651-60610
93385-16010
