KE30L-MBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7608-7708)3KC..KE30..USA ; (7708-7908)3KC..KE30..USA

Click highlighted areas on diagram

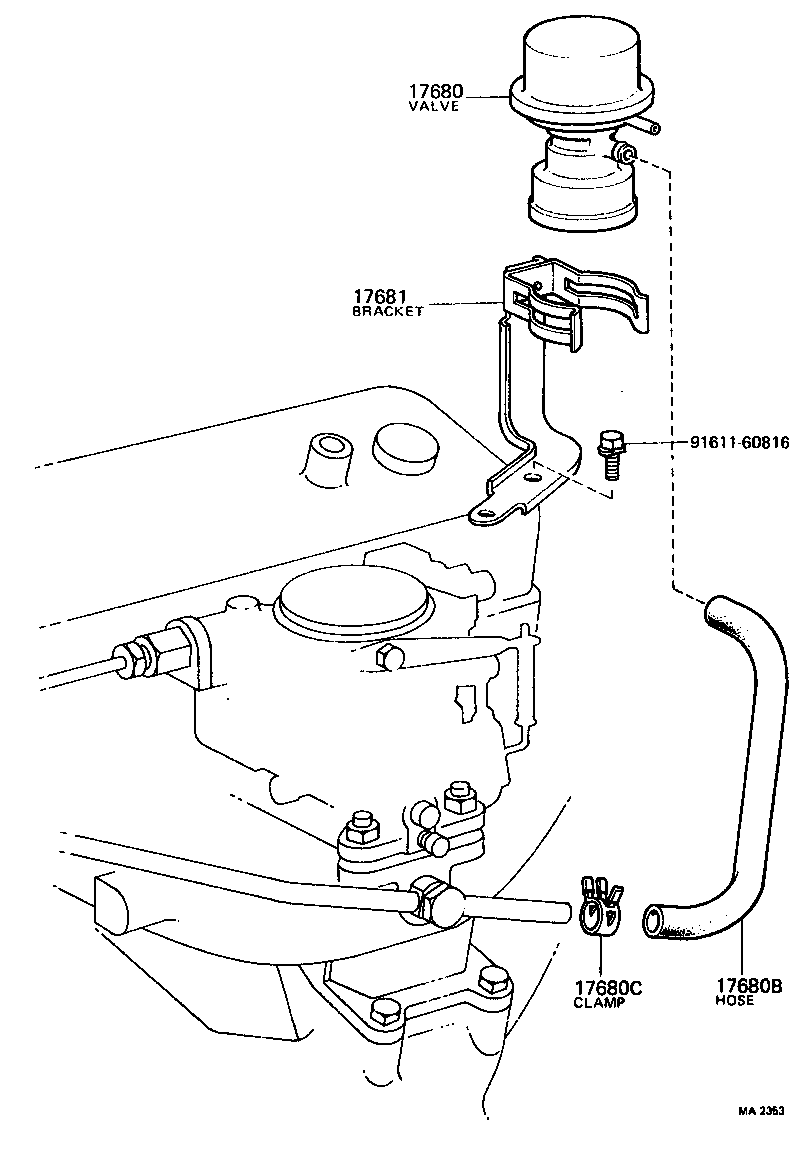

diagram 17680 17680B 17680C 17681 9161160816
Part # Description Qty Price
17680 - VALVE ASSY, MIXTURE CONTROL
17680-24010

3KC..KE30..USA

 1
17680-24010

3KC..KE30..USA

 1
17680B - HOSE(FOR MIXTURE CONTROL VALVE)
90910-05120

3KC..KE30..USA

 1
90910-05120

3KC..KE30..USA

 1
17680C - CLAMP OR CLIP(FOR MIXTURE CONTROL VALVE HOSE)
96132-31000

3KC..KE30..USA

 1
96132-31000

3KC..KE30..USA

 1
17681 - BRACKET, MIXTURE CONTROL VALVE
17681-24010

3KC..KE30..USA

 1
17681-24010

3KC..KE30..USA

 1
Common parts
91611-60816

(7608-7708)3KC..KE30..USA

Click highlighted areas on diagram

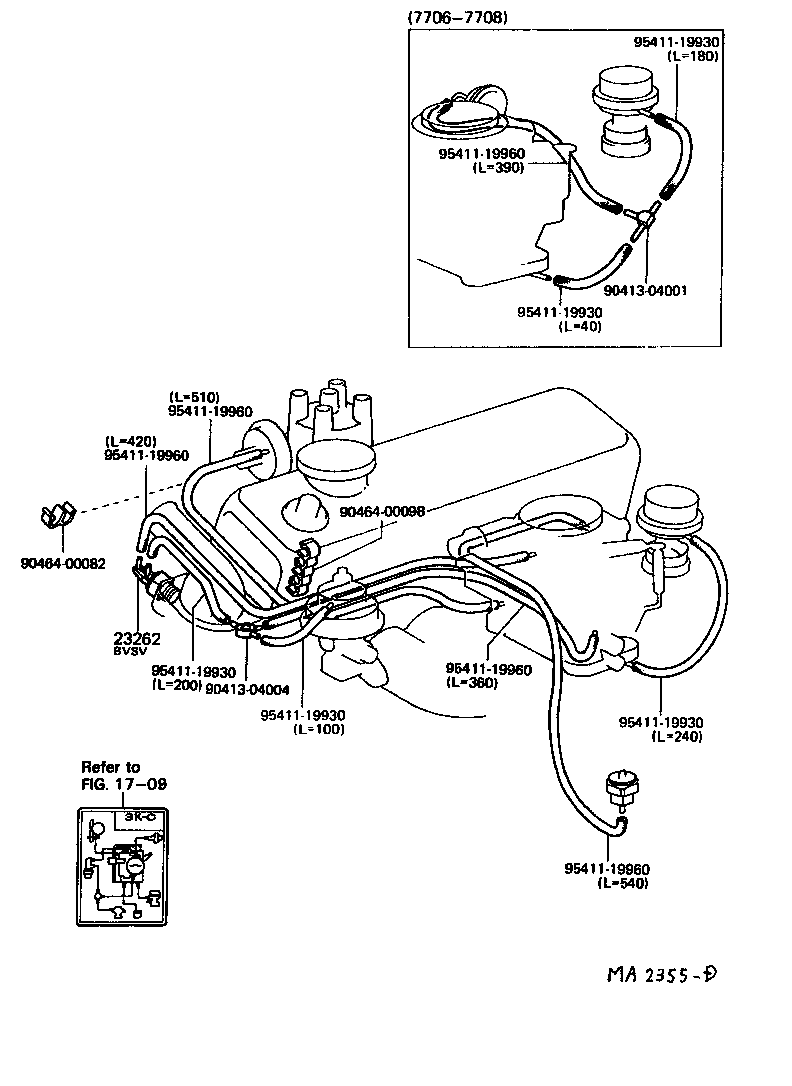

diagram 1709 23262 9041304001 9041304004 9046400082 9046400098 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05030

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
25810-13010

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

 1
Common parts
90413-04001
90413-04004
90464-00082
90464-00098
95411-19930
95411-19960
Linked diagrams
1709

(7708-7808)3KC..KE30..USA

Click highlighted areas on diagram

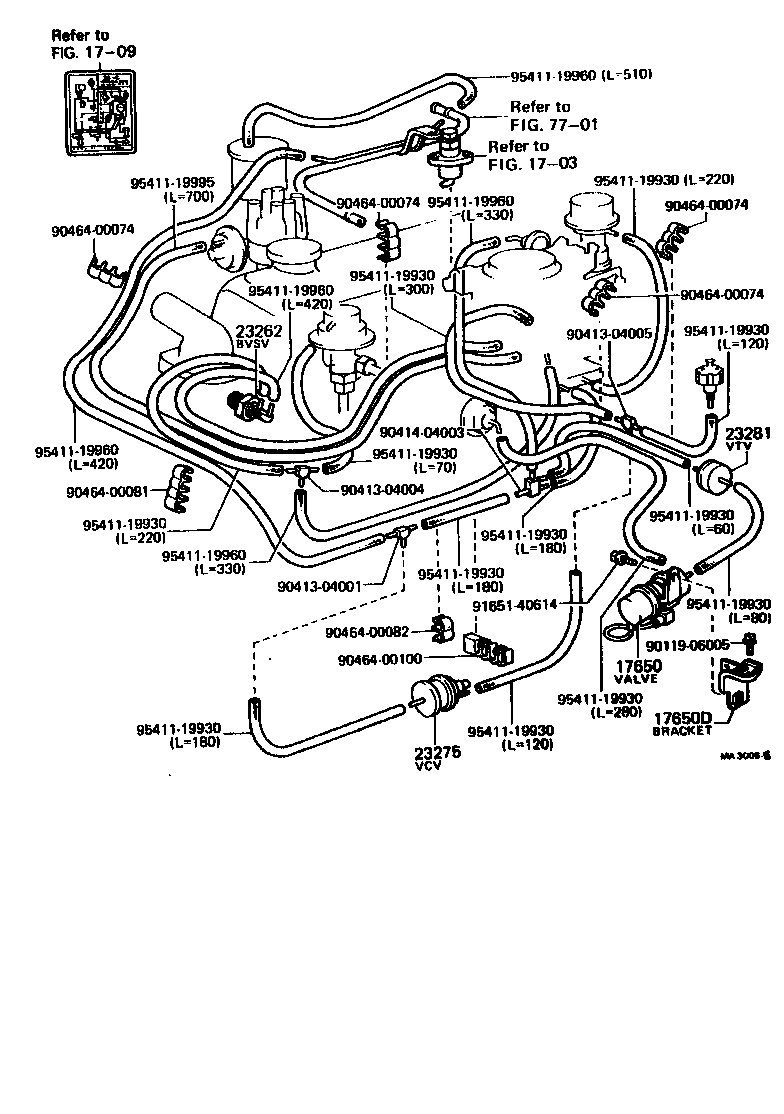

diagram 1703 1709 17650 17650D 23262 23275 23281 7701 9011906005 9041304001 9041304004 9041304005 9041404003 9046400074 9046400074 9046400074 9046400074 9046400081 9046400082 9046400100 9165140614 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-24020

3KC..KE3#

 1
17650-24021

3KC..KE30..USA

CANADA SPEC.

 1
89570-12010

3KC..KE30..USA

CANADA SPEC.

 1
89570-12030

3KC..KE30..USA

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-12020

3KC..KE30,50

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05030

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
25810-13010

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03022

3KC..KE30..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01032

3KC..KE30..USA

 1
Common parts
90119-06005
90413-04001
90413-04004
90413-04005
90414-04003
90464-00074
90464-00081
90464-00082
90464-00100
91651-40614
95411-19930
95411-19960
95411-19995
Linked diagrams
1703
1709
7701

(7808-7908)3KC..KE30..USA

Click highlighted areas on diagram

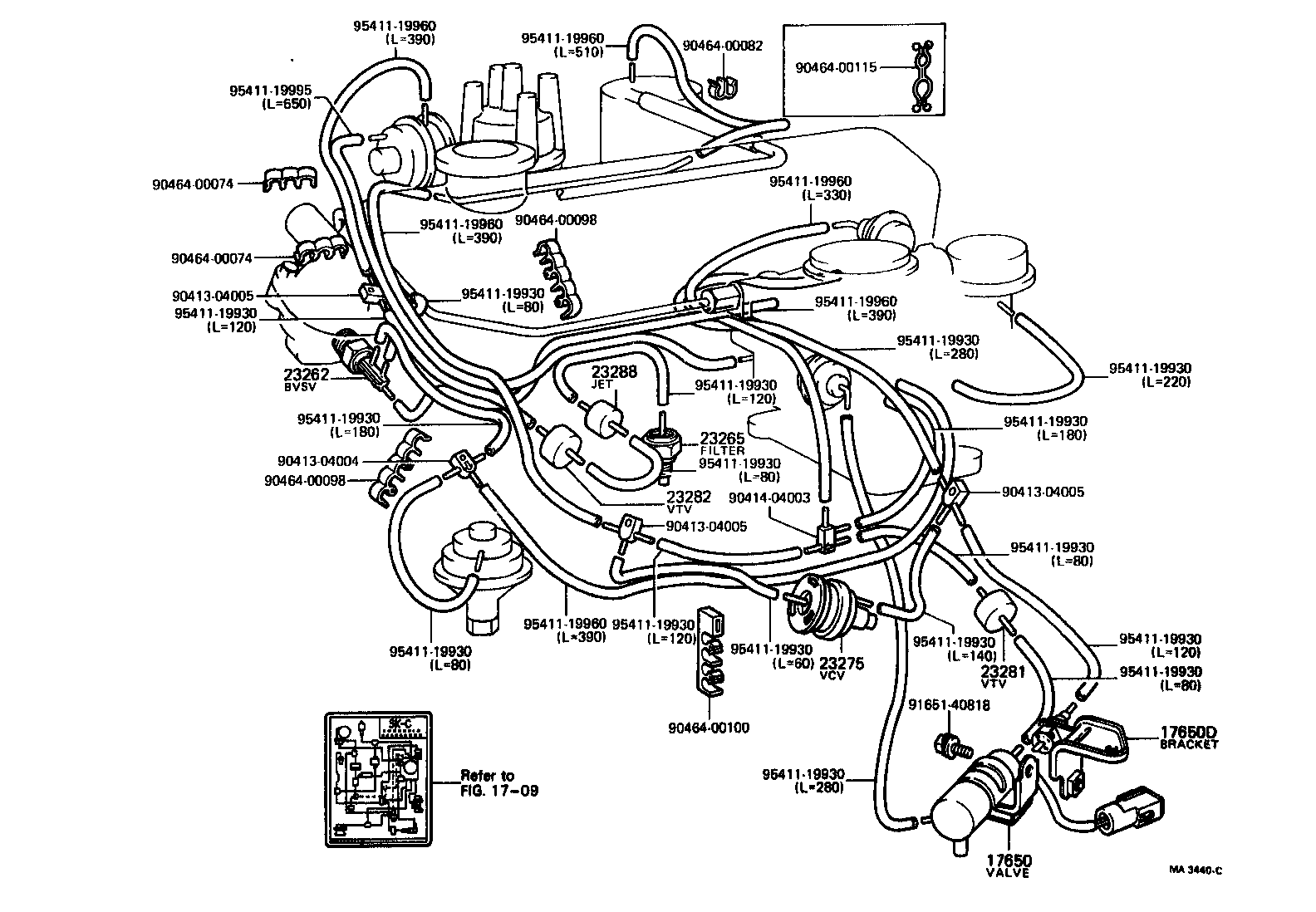

diagram 1709 17650 17650D 23262 23265 23275 23281 23282 23288 9041304004 9041304005 9041304005 9041304005 9041404003 9046400074 9046400074 9046400082 9046400098 9046400098 9046400100 9046400115 9165140818 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-24020

3KC..KE3#

 1
17650-24021

3KC..KE30..USA

CANADA SPEC.

 1
89570-12010

3KC..KE30..USA

CANADA SPEC.

 1
89570-12030

3KC..KE30..USA

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-12020

3KC..KE30,50

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05030

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
25810-13010

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

 1
23265 - FILTER, GAS, NO.1
90917-11025

3KC..KE30..USA

 1
90917-11023

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03022

3KC..KE30..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01032

3KC..KE30..USA

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01027

3KC..KE30..USA

 1
23288 - JET, NO.1
90925-04015

3KC..KE30..USA

 1
Common parts
90413-04004
90413-04005
90414-04003
90464-00074
90464-00082
90464-00098
90464-00100
90464-00115
91651-40818
95411-19930
95411-19960
95411-19995
Linked diagrams
1709

(7808-7908)3KC..KE30..USA

Click highlighted areas on diagram

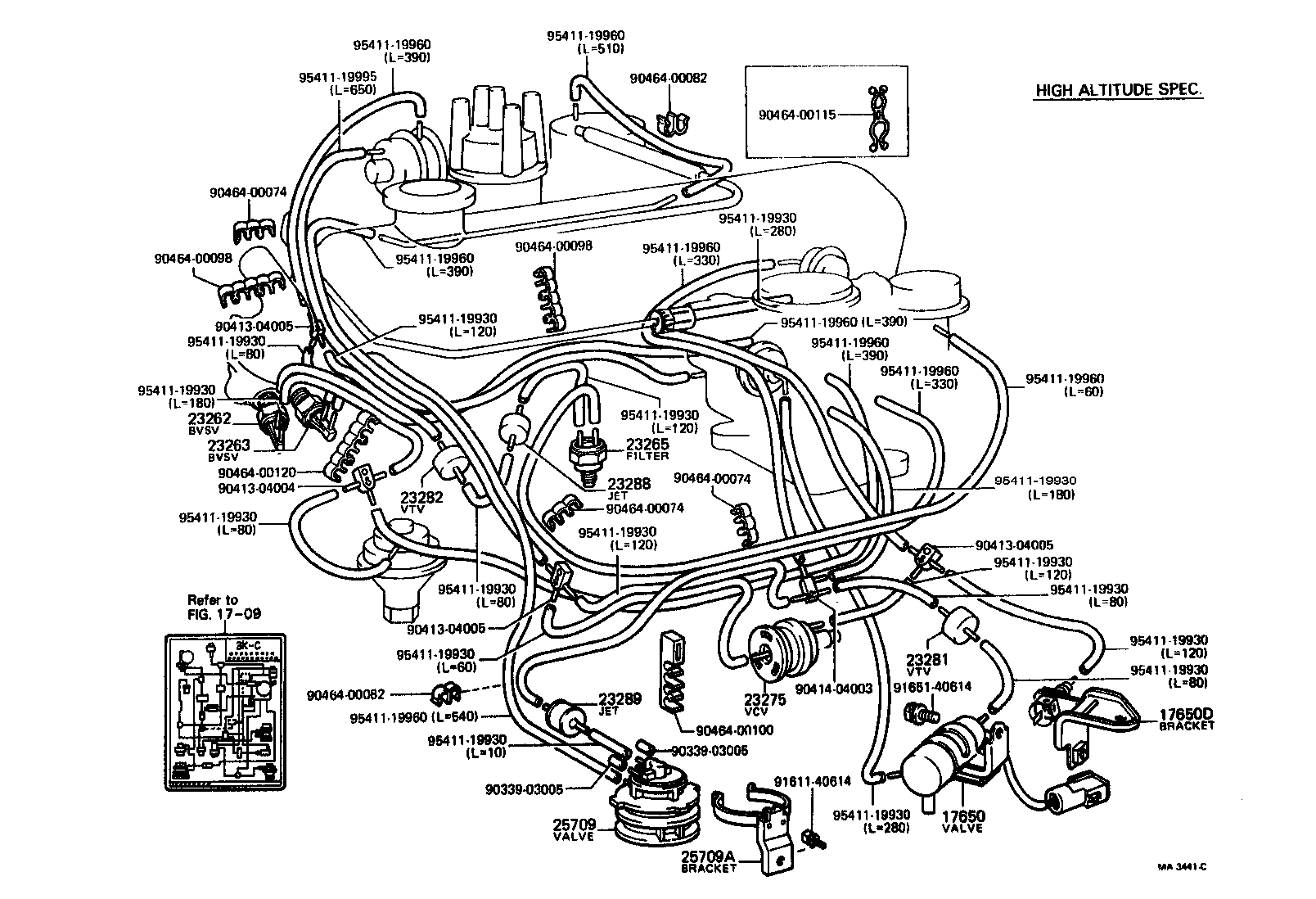

diagram 1709 17650 17650D 23262 23263 23265 23275 23281 23282 23288 23289 25709 25709A 9033903005 9033903005 9041304004 9041304005 9041304005 9041304005 9041404003 9046400074 9046400074 9046400074 9046400082 9046400082 9046400098 9046400098 9046400100 9046400115 9046400120 9161140614 9165140614 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119960 9541119995
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-24020

3KC..KE3#

 1
17650-24021

3KC..KE30..USA

CANADA SPEC.

 1
89570-12010

3KC..KE30..USA

CANADA SPEC.

 1
89570-12030

3KC..KE30..USA

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-12020

3KC..KE30,50

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05030

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
25810-13010

3KC..KE30..USA

 1
90925-05015

3KC..KE30..USA

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
23265 - FILTER, GAS, NO.1
90917-11025

3KC..KE30..USA

 1
90917-11023

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03022

3KC..KE30..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01032

3KC..KE30..USA

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01027

3KC..KE30..USA

 1
23288 - JET, NO.1
90925-04015

3KC..KE30..USA

 1
23289 - JET, NO.2
90925-04016

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10404

3KC..KE30..USA

HIGH ALTITUDE SPEC.

 1
Common parts
90339-03005
90413-04004
90413-04005
90414-04003
90464-00074
90464-00082
90464-00098
90464-00100
90464-00115
90464-00120
91611-40614
91651-40614
95411-19930
95411-19960
95411-19995
Linked diagrams
1709

(7408-7908)3KC

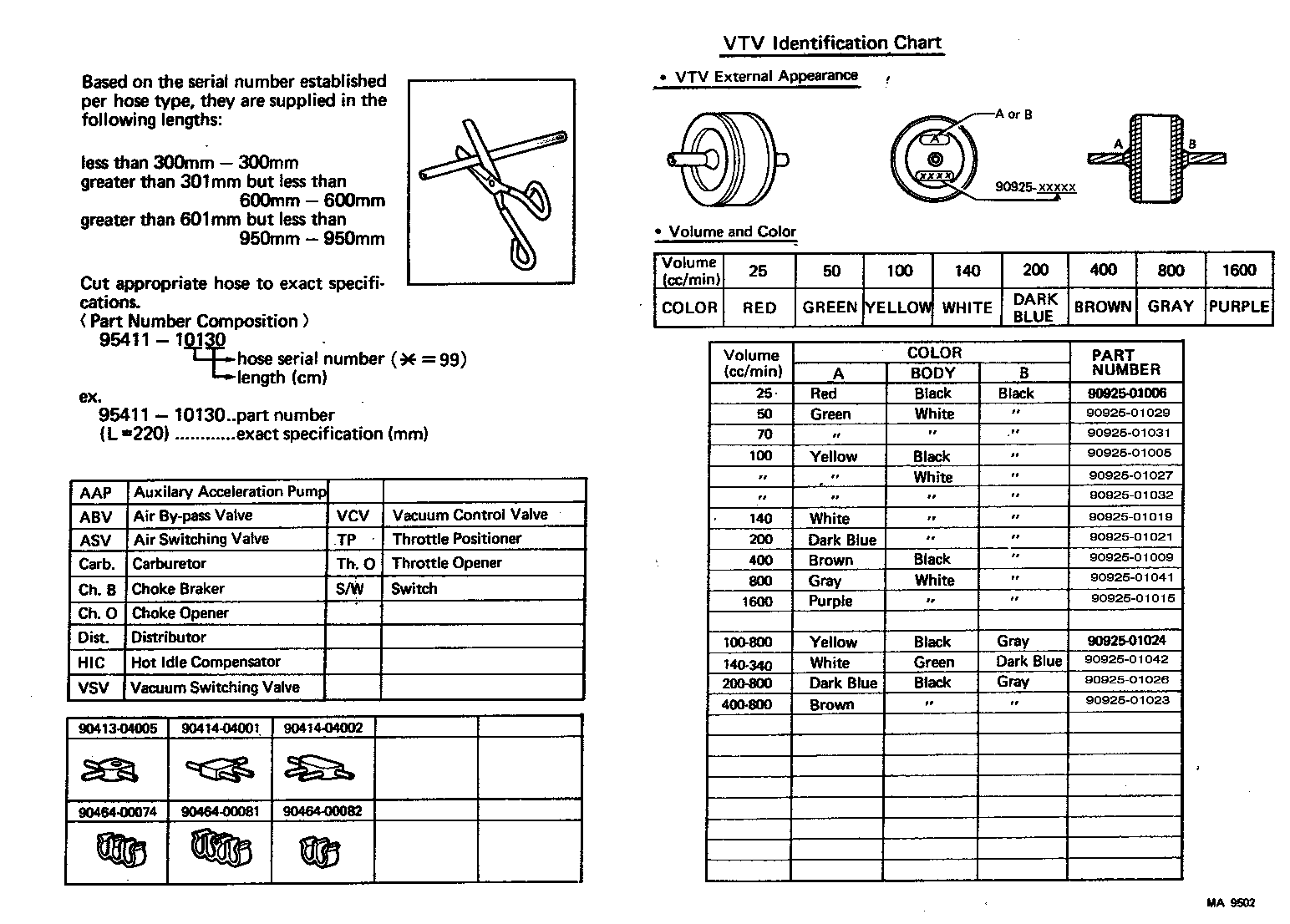

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501005 9092501006 9092501009 9092501015 9092501019 9092501021 9092501023 9092501024 9092501026 9092501027 9092501029 9092501031 9092501032 9092501041 9092501042
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01005
90925-01006
90925-01009
90925-01015
90925-01019
90925-01021
90925-01023
90925-01024
90925-01026
90925-01027
90925-01029
90925-01031
90925-01032
90925-01041
90925-01042
