KE30L-KRK (1977)

Toyota Corolla

Production Aug 1977 - May 1978
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7802)3KC

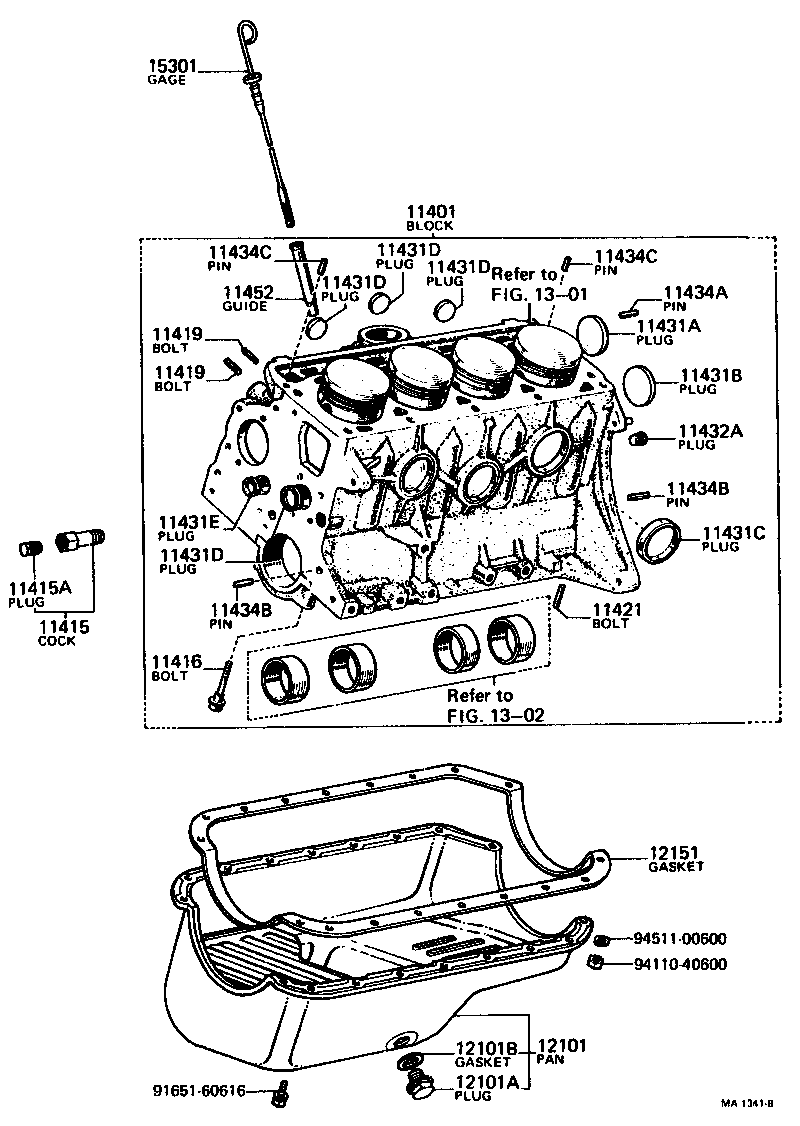

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11419 11419 11421 11431A 11431B 11431C 11431D 11431D 11431D 11431D 11431E 11432A 11434A 11434B 11434B 11434C 11434C 11452 12101 12101A 12101B 12151 1301 1302 15301 9165160616 9411040600 9451100600
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29095

3KC..KE3#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03873

3KC..KE3#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

3KC..KE3#,50

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

3KC..KE3#,50

 10
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08288

3KC..KE3#,50

L=34.5,S=10&16

 2
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08288

3KC..KE3#,50

L=34.5,S=10&16

 2
11421 - BOLT, STUD(FOR OIL PAN)
92132-60614

3KC..KE3#,50

6T

 4
92132-40614

3KC..KE3#,50

4T

 4
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-47025

3KC..KE3#,50

OD=47

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44500

3KC..KE3#,50

OD=45

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

3KC..KE3#

OD=35

 3
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-42500

3KC..KE3#,50

OD=25

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-42500

3KC..KE3#,50

OD=25

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-42500

3KC..KE3#,50

OD=25

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-42500

3KC..KE3#,50

OD=25

 4
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96412-01800

3KC..KE3#,50

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

3KC..KE3#,50

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

3KC..KE3#,50

L=18,OD=8,L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3KC..KE3#,50

L=22,OD=10,L=22,OD=10

 2
90250-08120

3KC..KE3#,50

L=18,OD=8,L=18,OD=8

 6
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3KC..KE3#,50

L=22,OD=10,L=22,OD=10

 2
90250-08120

3KC..KE3#,50

L=18,OD=8,L=18,OD=8

 6
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08054

3KC..KE3#,50

L=23,OD=8,L=23,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08054

3KC..KE3#,50

L=23,OD=8,L=23,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

3KC..KE3#,50

 1
12101 - PAN SUB-ASSY, OIL
12101-29045

3KC..KE3#,50

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

3KC..KE3#,50

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

3KC..KE3#,50

 1
12151 - GASKET, OIL PAN
12151-24020

3KC..KE3#,50

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-22011

3KC..KE3#,50

 1
Common parts
91651-60616
94110-40600
94511-00600
Linked diagrams
1301
1302
