KE30L-KRFA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

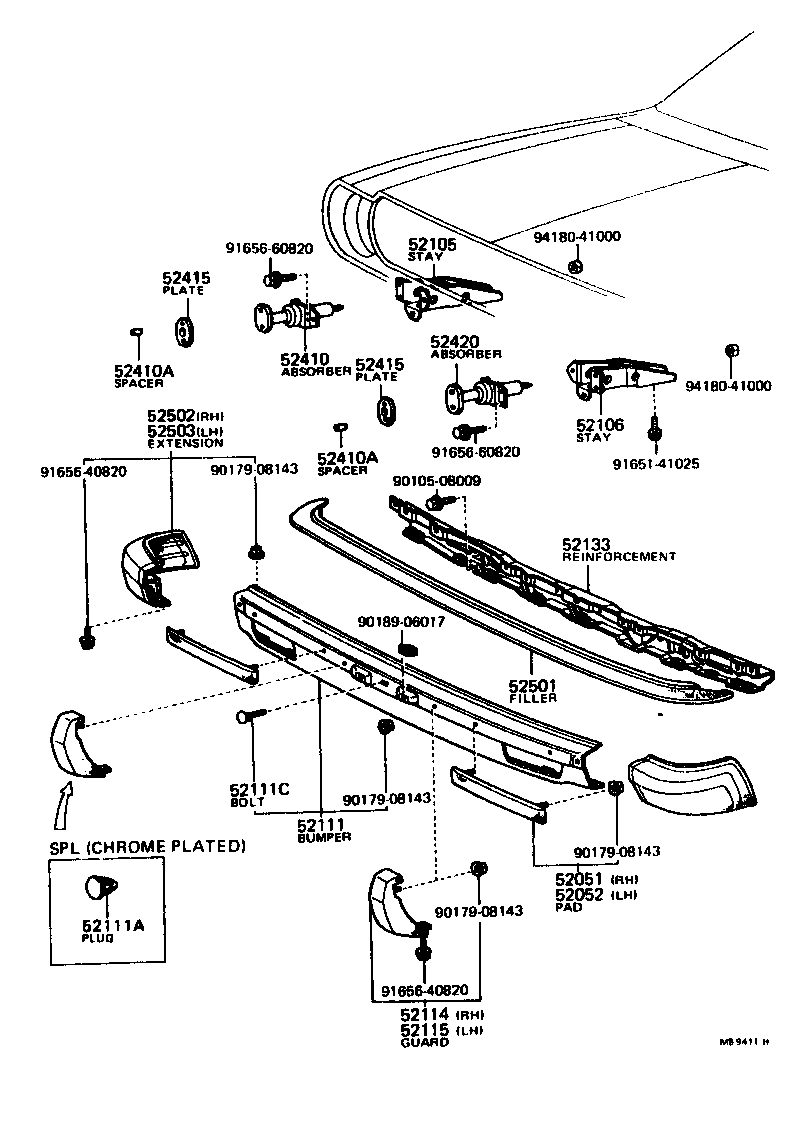

Click highlighted areas on diagram

diagram 52051 52052 52105 52106 52111 52111A 52111C 52114 52115 52133 52410 52410A 52410A 52415 52415 52420 52501 52502 52503 9010508009 9017908143 9017908143 9017908143 9017908143 9018906017 9165141025 9165640820 9165640820 9165660820 9165660820 9418041000 9418041000
Part # Description Qty Price
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-19015

KE3#,50,TE3#,51..DLX,SR5,STD

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-19015

KE3#,50,TE3#,51..DLX,SR5,STD

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-12030

KE3#,TE3#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-12030

KE3#,TE3#

 1
52111 - BUMPER ASSY, FRONT
52111-19225

KE3#,TE3#,51

CHROME PLATED

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08037

KE3#,TE3#,51

 1
90112-08002

KE3#,TE3#

 1
52114 - GUARD, BUMPER, FRONT RH
52401-19055

KE3#,50,TE3#,51

 1
52115 - GUARD, BUMPER, FRONT LH
52401-19055

KE3#,50,TE3#,51

 1
52133 - REINFORCEMENT, FRONT BUMPER
52021-12010

KE3#,50,TE3#,51

 1
52410 - ABSORBER, FRONT BUMPER, RH
52610-12010

KE3#,50,TE3#,51

 1
52410A - SPACER, FRONT BUMPER ABSORBER
90560-08421

KE3#,50,TE3#,51

 4
52410A - SPACER, FRONT BUMPER ABSORBER
90560-08421

KE3#,50,TE3#,51

 4
52415 - PLATE, ABSORBER MOUNTING
52625-12010

KE3#,50,TE3#,51

 2
52415 - PLATE, ABSORBER MOUNTING
52625-12010

KE3#,50,TE3#,51

 2
52420 - ABSORBER, FRONT BUMPER, LH
52610-12010

KE3#,50,TE3#,51

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-12010

KE3#,50,TE3#,51..DLX,SR5,STD

 1
52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52102-19115

KE3#,TE3#

 1
52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52103-19105

KE3#,TE3#

 1
Common parts
90105-08009
90179-08143
90189-06017
91651-41025
91656-40820
91656-60820
94180-41000
