KE30L-KRA (1974)
Toyota Corolla

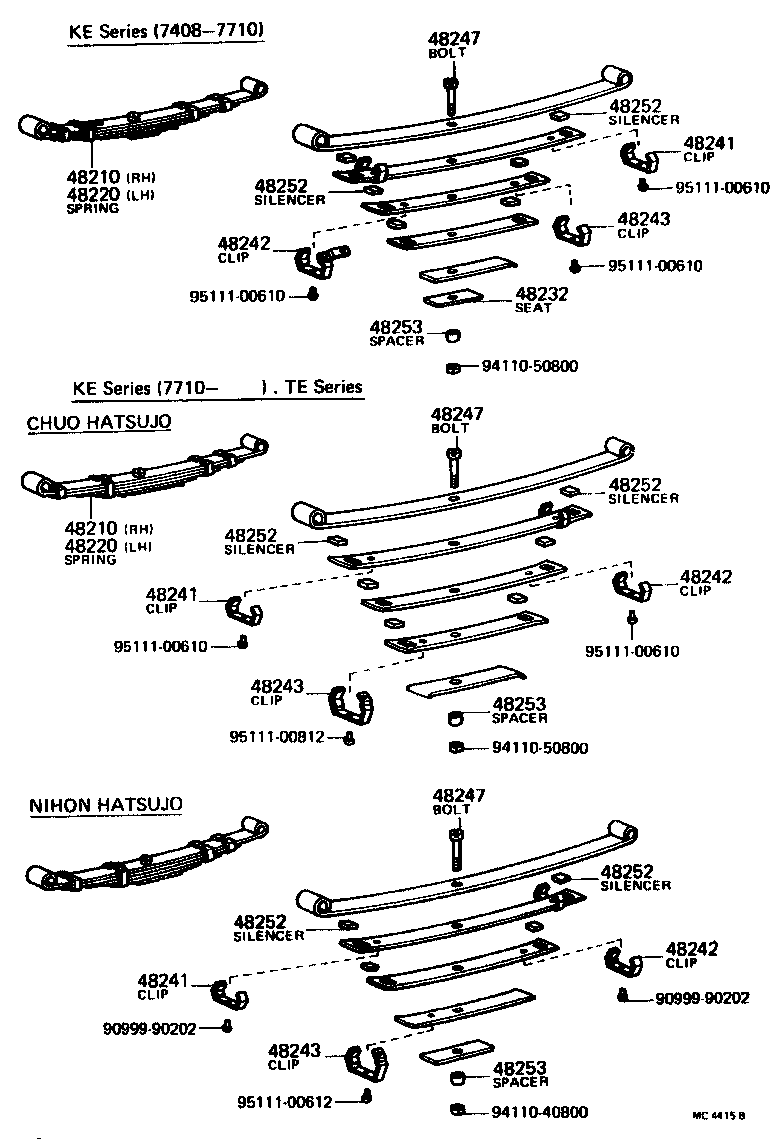

(7408-7608)KE3#,TE51 ; (7608-7801)KE3#,TE31,37,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12170 |
KE3# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12170 |
KE3# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12170 |
KE3# |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12170 |
KE3# |
1 | ||
| 48232 - SEAT, COIL SPRING, REAR | ||||
| 48251-12070 |
KE3# |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-12110 |
KE3# CHUO HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-12110 |
KE3# CHUO HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-12110 |
KE3# CHUO HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-22010 |
KE3#,TE31,37..DLX,STD CHUO HATSUJO |
2 | ||
| 48242-22010 |
KE3#,TE31,37 CHUO HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-22010 |
KE3#,TE31,37..DLX,STD CHUO HATSUJO |
2 | ||
| 48242-22010 |
KE3#,TE31,37 CHUO HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-22010 |
KE3#,TE31,37..DLX,STD CHUO HATSUJO |
2 | ||
| 48242-22010 |
KE3#,TE31,37 CHUO HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20130 |
KE3#,TE31,37..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE31,37 CHUO HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20130 |
KE3#,TE31,37..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE31,37 CHUO HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-20130 |
KE3#,TE31,37..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE31,37 CHUO HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 95111-00610 | ||||
| 95111-00612 | ||||
| 95111-00812 | ||||
(7408-7501) ; (7501-7908)KE3#,TE31,37,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-12010 |
KE3#,50,TE31,37,51..DLX,SPL,STD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10138 |
KE3#,TE31,37..DLX,STD |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-12010 |
KE3#,50,TE31,37,51..DLX,SPL,STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13065 |
KE3#,50,TE31,37,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13065 |
KE3#,50,TE31,37,51 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12020 |
KE3#,50,TE3#,51 |
2 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12020 |
KE3#,50,TE3#,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-12030 |
KE3#,50,TE31,37,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-12030 |
KE3#,50,TE31,37,51 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-19025 |
KE3#,50,TE31,37,51 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
KE3#,50 |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-13010 |
KE3#,TE31,37..DLX,STD |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,50,TE3#,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,50,TE3#,51 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19295 |
KE3# |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
KE3#,50,TE3#,51 LOWER |
2 | ||
| 90948-01003 |
KE3#,50,TE31,37,51 UPPER |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
KE3#,50,TE3#,51 LOWER |
2 | ||
| 90948-01003 |
KE3#,50,TE31,37,51 UPPER |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16060 |
KE3#,50,TE3#,51 LOWER |
2 | ||
| 90948-01003 |
KE3#,50,TE31,37,51 UPPER |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
KE3#,50,TE31,37,51 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE3#,50,TE31,37,51 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE3#,50,TE31,37,51 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
KE3#,50,TE31,37,51 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
KE3#,50,TE31,37,51 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19295 |
KE3# |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
