KE30L-KRA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7506)STD ; (7506-7701)KE3#,TE3#..DLX,SPL,STD

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136A 45146 45201P 45207 9331914008 9331915014 9351013008 9351013008
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-12130

KE30,TE31..STD

2-SPOKE

 1
45100-12131

KE3#,TE3#..DLX,SPL,STD

2-SPOKE

 1
45100-12130

KE3#,TE3#..DLX,STD

2-SPOKE

 1
45125 - MARK, STEERING WHEEL PAD
45125-12070

KE3#,TE3#,51..DLX,SPL,STD

 1
45125-12070

KE30,TE31,38

 1
45129 - BUTTON, HORN, NO.2
45131-12060

KE30,TE31..STD

FOR 2-SPOKE

 1
45131-12110

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45131-12060

KE3#,TE3#..DLX,STD

FOR 2-SPOKE

 1
45130 - BUTTON ASSY, HORN
45130-12120

KE30,TE31..STD

FOR 2-SPOKE

 1
45130-12120

KE3#,TE3#..DLX,STD

FOR 2-SPOKE

 1
45130-12121

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45131 - BUTTON, HORN, NO.1
45131-12060

KE30,TE31..STD

FOR 2-SPOKE

 1
45131-12110

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45131-12060

KE3#,TE3#..DLX,STD

FOR 2-SPOKE

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-12070

KE30,TE31,38

 3
45136A - CORD(FOR HORN CONTACT RING)
90945-02026

KE30,TE31..STD

FOR 2-SPOKE

 1
90945-02026

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-12020

KE30,TE31..STD

FOR 2-SPOKE

 2
45146-12020

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

KE3#,50,TE3#,51

 1
45207 - RING, HORN CONTACT
45176-20030

KE3#,50,TE3#,51..DLX,SPL,STD

 1
Common parts
93319-14008
93319-15014
93510-13008

(7701-7708)TE37..DLX ; (7701-7908)SPL,STD

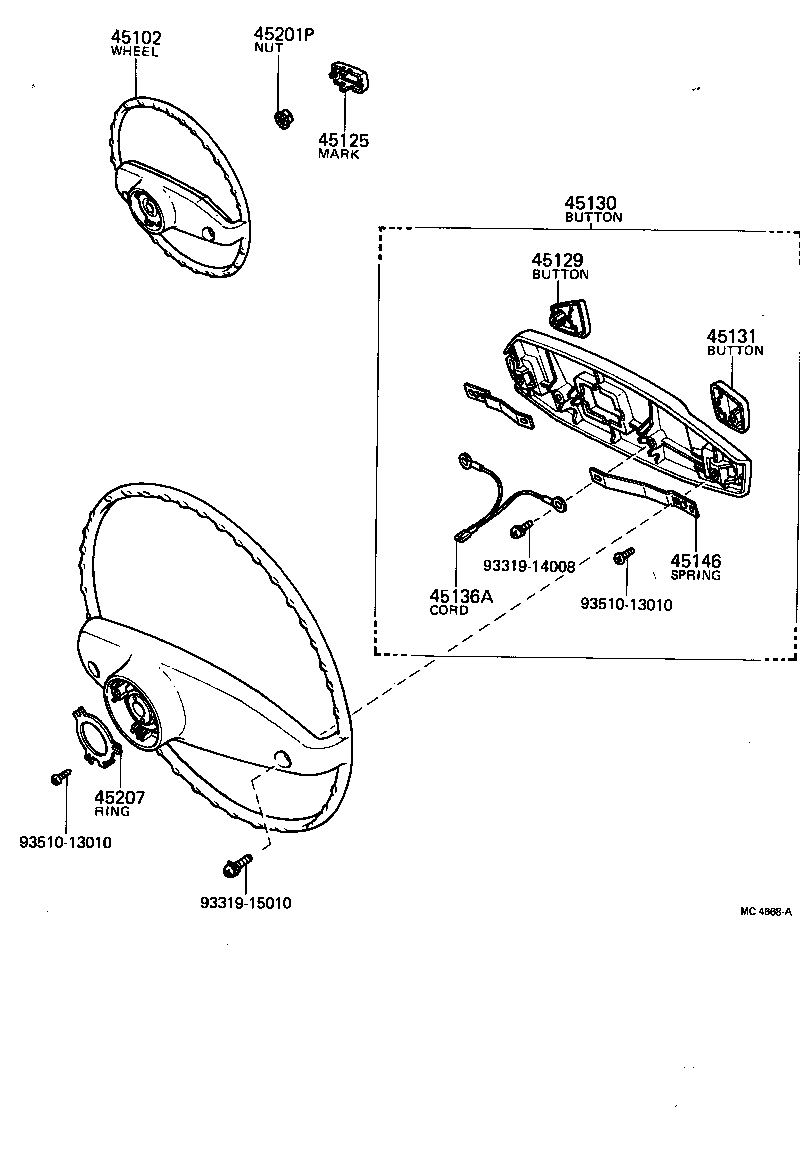

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136A 45146 45201P 45207 9331914008 9331915010 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-12130

KE30,TE31..STD

2-SPOKE

 1
45100-12131

KE3#,TE3#..DLX,SPL,STD

2-SPOKE

 1
45100-12130

KE3#,TE3#..DLX,STD

2-SPOKE

 1
45125 - MARK, STEERING WHEEL PAD
45125-12070

KE3#,TE3#,51..DLX,SPL,STD

 1
45125-12070

KE30,TE31,38

 1
45129 - BUTTON, HORN, NO.2
45131-12060

KE30,TE31..STD

FOR 2-SPOKE

 1
45131-12110

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45131-12060

KE3#,TE3#..DLX,STD

FOR 2-SPOKE

 1
45130 - BUTTON ASSY, HORN
45130-12120

KE30,TE31..STD

FOR 2-SPOKE

 1
45130-12120

KE3#,TE3#..DLX,STD

FOR 2-SPOKE

 1
45130-12121

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45131 - BUTTON, HORN, NO.1
45131-12060

KE30,TE31..STD

FOR 2-SPOKE

 1
45131-12110

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45131-12060

KE3#,TE3#..DLX,STD

FOR 2-SPOKE

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02026

KE30,TE31..STD

FOR 2-SPOKE

 1
90945-02026

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-12020

KE30,TE31..STD

FOR 2-SPOKE

 2
45146-12020

KE3#,TE3#..DLX,SPL,STD

FOR 2-SPOKE

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

KE3#,50,TE3#,51

 1
45207 - RING, HORN CONTACT
45176-20030

KE3#,50,TE3#,51..DLX,SPL,STD

 1
Common parts
93319-14008
93319-15010
93510-13010
