KE30L-KRA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)KE3#,50

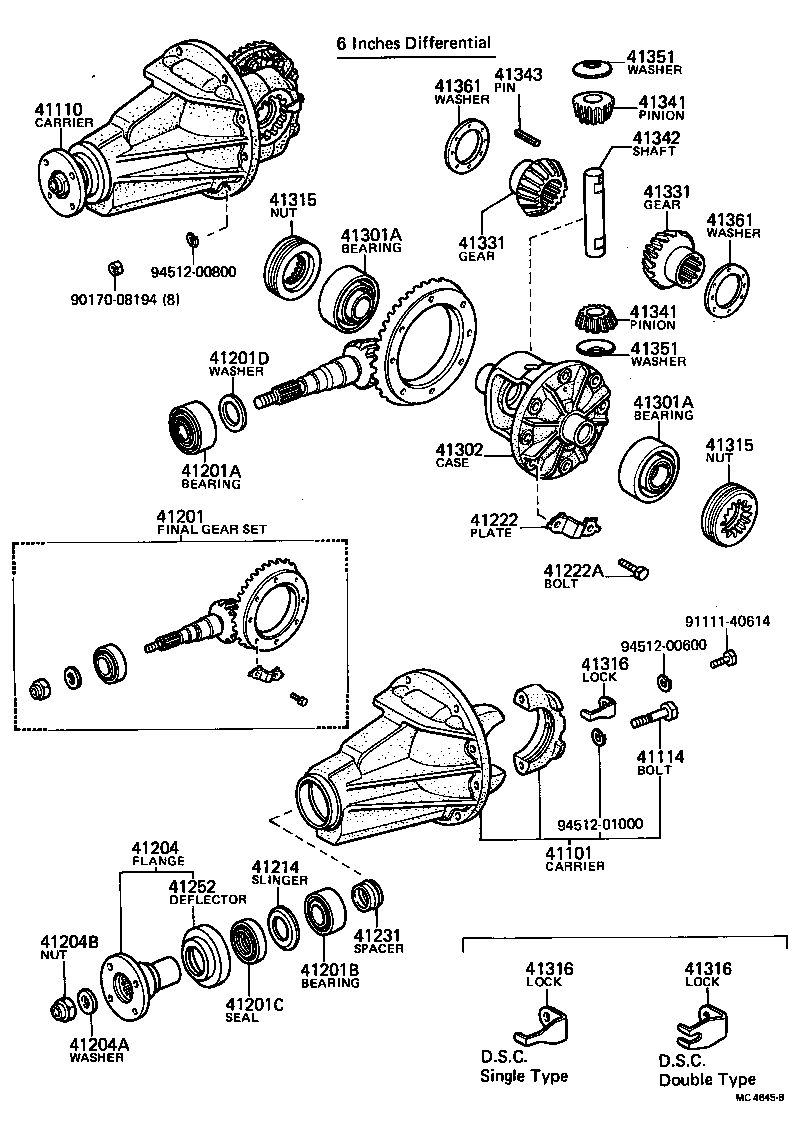

Click highlighted areas on diagram

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204A 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41315 41315 41316 41316 41316 41331 41331 41341 41341 41342 41343 41351 41351 41361 41361 9017008194 9111140614 9451200600 9451200800 9451201000
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-12020

KE3#,50

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-12050

KE3#,50..DLX,STD

R.=43:10,AX.C.=U282

 1
41110-10080

KE3#,50

R.=41:10,AX.C.=U292

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-10128

KE3#,50,TE3#,51..DLX,SPL,STD

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-19195

KE3#,50..DLX,STD

N=43:10

 1
41201-19225

KE3#,50

N=41:10

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90368-30069

KE3#,50

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-25047

KE3#,50

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-35131

KE3#,50

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90201-30235

KE3#,50

T=2.36

 1
90201-30236

KE3#,50

T=2.39

 1
90201-30238

KE3#,50

T=2.44-2.46,T=2.45

 1
90201-30239

KE3#,50

T=2.47-2.49,T=2.48

 1
90201-30241

KE3#,50

T=2.53-2.55,T=2.54

 1
90201-30540

KE3#,50

T=2.26-2.28,T=2.27

 1
90201-30240

KE3#,50

T=2.50-2.52,T=2.51

 1
90201-30234

KE3#,50

T=2.33

 1
90201-30539

KE3#,50

T=2.23-2.25,T=2.24

 1
90201-30237

KE3#,50

T=2.41-2.43,T=2.42

 1
90201-30541

KE3#,50

T=2.29-2.31,T=2.30

 1
90201-30544

KE3#,50

T=2.65-2.67,T=2.66

 1
90201-30242

KE3#,50

T=2.56-2.58,T=2.57

 1
90201-30543

KE3#,50

T=2.62-2.64,T=2.63

 1
90201-30542

KE3#,50

T=2.59-2.61,T=2.60

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-12020

KE3#,50

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-16244

KE3#,50

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-16052

KE3#,50

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-12020

KE3#,50

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-12020

KE3#,50

 4
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11365

KE3#,50

 8
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-12020

KE3#,50

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-12020

KE3#,50

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-34020

KE3#,50,TE3#,51..DLX,SPL,STD

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-34020

KE3#,50,TE3#,51..DLX,SPL,STD

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-12020

KE3#,50

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-12010

KE3#,50

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-12010

KE3#,50

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-12010

KE3#,50

SINGLE TYPE

 2
41317-12010

KE3#,50

DOUBLE TYPE

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-12010

KE3#,50

SINGLE TYPE

 2
41317-12010

KE3#,50

DOUBLE TYPE

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-12010

KE3#,50

SINGLE TYPE

 2
41317-12010

KE3#,50

DOUBLE TYPE

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-20010

KE3#,50

N=16

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-20010

KE3#,50

N=16

 2
41341 - PINION, REAR DIFFERENTIAL
41341-20010

KE3#,50

N=10

 2
41341 - PINION, REAR DIFFERENTIAL
41341-20010

KE3#,50

N=10

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-12010

KE3#,50

L=87,OD=15

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-04053

KE3#,50

 1
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12020

KE3#,50

T=1.55,T=1.55

 2
41361-12050

KE3#,50

T=1.70,T=1.70

 2
41361-12010

KE3#,50

T=1.50,T=1.50

 2
41361-12030

KE3#,50

T=1.60,T=1.60

 2
41361-12060

KE3#,50

T=1.75,T=1.75

 2
41361-12040

KE3#,50

T=1.65,T=1.65

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12020

KE3#,50

T=1.55,T=1.55

 2
41361-12050

KE3#,50

T=1.70,T=1.70

 2
41361-12010

KE3#,50

T=1.50,T=1.50

 2
41361-12030

KE3#,50

T=1.60,T=1.60

 2
41361-12060

KE3#,50

T=1.75,T=1.75

 2
41361-12040

KE3#,50

T=1.65,T=1.65

 2
Common parts
90170-08194
91111-40614
94512-00600
94512-00800
94512-01000

(7408-7908)

Click highlighted areas on diagram

diagram 41110A 41110A 42110 42110 42110A 42110A 42110B 42110B 42110C 42110C 42110D 42110D 42110E 42110E 42110K 42139 42139 42139 42139 42181 42181
Part # Description Qty Price
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90114-08003

KE3#,50

 8
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90114-08003

KE3#,50

 8
42110 - HOUSING ASSY, REAR AXLE
42101-12060

KE3#

 1
42110 - HOUSING ASSY, REAR AXLE
42101-12060

KE3#

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18049

KE3#,50,TE3#,51

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18049

KE3#,50,TE3#,51

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

KE3#,50,TE3#,51

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

KE3#,50,TE3#,51

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031

KE3#,50,TE3#,51

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031

KE3#,50,TE3#,51

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

KE3#,50,TE3#,51

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

KE3#,50,TE3#,51

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

KE3#,50,TE3#,51

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

KE3#,50,TE3#,51

 1
42110K - GASKET KIT, DIFFERENTIAL CARRIER
04412-10011

KE3#,50

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-12010

KE3#,50

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-12010

KE3#,50

 1
