KE30L-KRA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

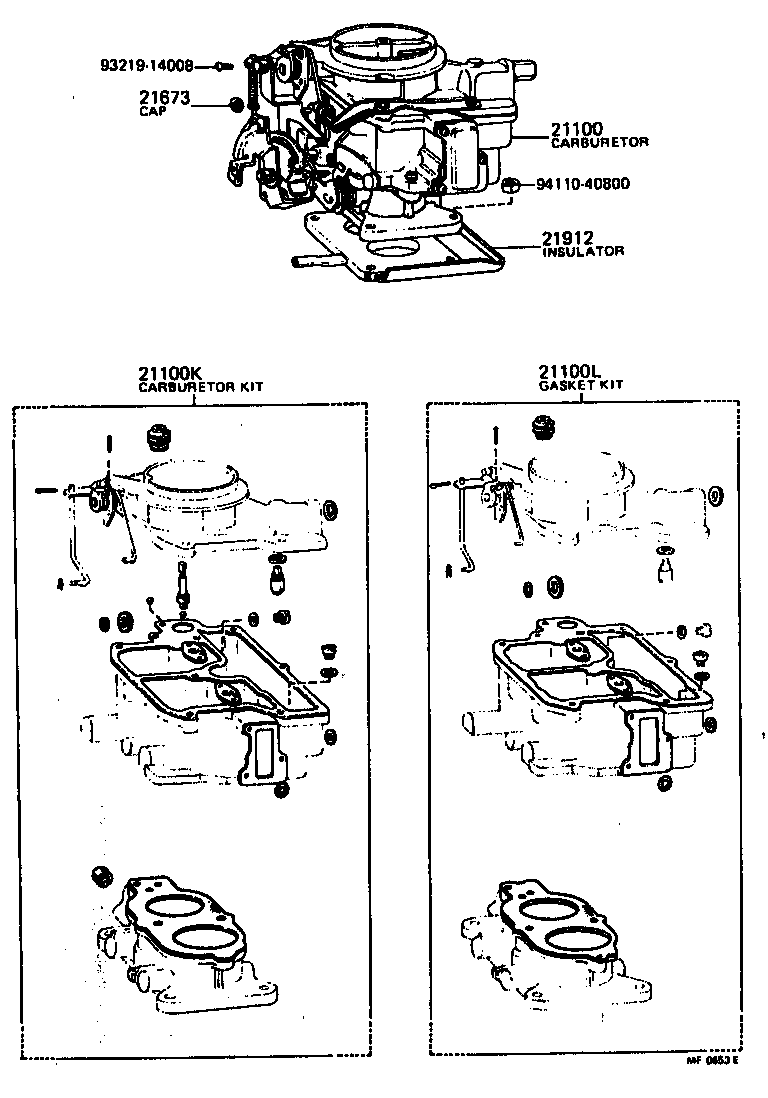

Click highlighted areas on diagram

diagram 21100 21100K 21100L 21673 21912 9321914008 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-24018

3KC..KE3#

 1
21100-24460

3KC..KE3#..DLX,STD

 1
21100-24019

3KC..KE3#

 1
21100-24461

3KC..KE3#,50..DLX,STD

 1
21100K - CARBURETOR KIT
04211-24080

3KC..KE3#

 1
04211-24081

3KC..KE3#,50..DLX,STD

 1
21100L - GASKET KIT, CARBURETOR
04212-24012

3KC..KE3#,50

 1
21673 - CAP, IDLE LIMIT
21673-38020

3KC..KE3#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-24016

3KC..KE3#..DLX,STD

 1
21912-24017

3KC..KE3#,50

CANADA SPEC.

 1
Common parts
93219-14008
94110-40800
