KE30L-KBK (1977)
Toyota Corolla
Production
Aug 1977
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)

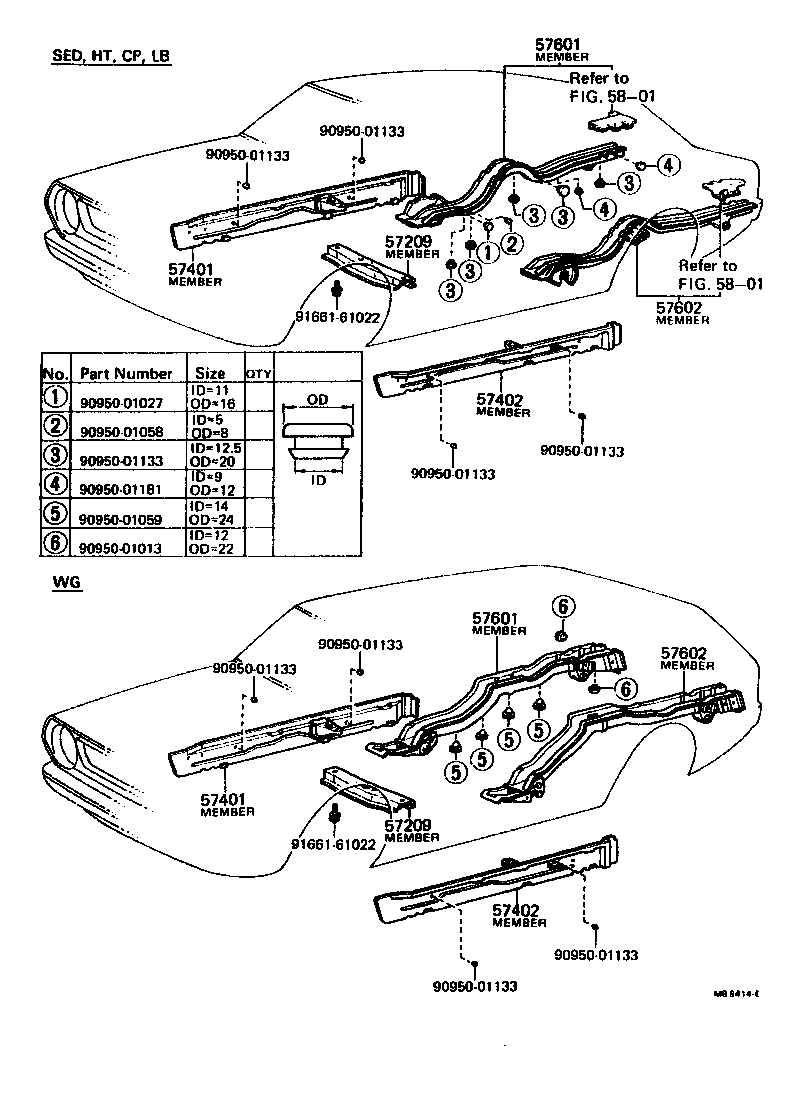

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57255-12060 |
KE3#,50 |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57255-12060 |
KE3#,50 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-12030 |
KE3#,TE3#,51 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-12030 |
KE3#,TE3#,51 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-12030 |
KE3#,TE3#,51 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-12030 |
KE3#,TE3#,51 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12010 |
KE3#,TE31,37 |
1 | ||
| 57601-12050 |
TE37;KE30,TE31..CND;KE30,TE31..4D..USA |
1 | ||
| 57601-12060 |
KE30,TE31..2D |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12010 |
KE3#,TE31,37 |
1 | ||
| 57601-12050 |
TE37;KE30,TE31..CND;KE30,TE31..4D..USA |
1 | ||
| 57601-12060 |
KE30,TE31..2D |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57601-12050 |
TE37;KE30,TE31..CND;KE30,TE31..4D..USA |
1 | ||
| 57602-12010 |
KE3#,TE31,37 |
1 | ||
| 57601-12060 |
KE30,TE31..2D |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57601-12050 |
TE37;KE30,TE31..CND;KE30,TE31..4D..USA |
1 | ||
| 57602-12010 |
KE3#,TE31,37 |
1 | ||
| 57601-12060 |
KE30,TE31..2D |
1 | ||
| Common parts | ||||
| 90950-01013 | ||||
| 90950-01027 | ||||
| 90950-01058 | ||||
| 90950-01059 | ||||
| 90950-01133 | ||||
| 90950-01181 | ||||
| 91661-61022 | ||||
| Linked diagrams | ||||
| 5801 | ||||
