KE30L-KBK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)KE3#,50,TE31,37,51

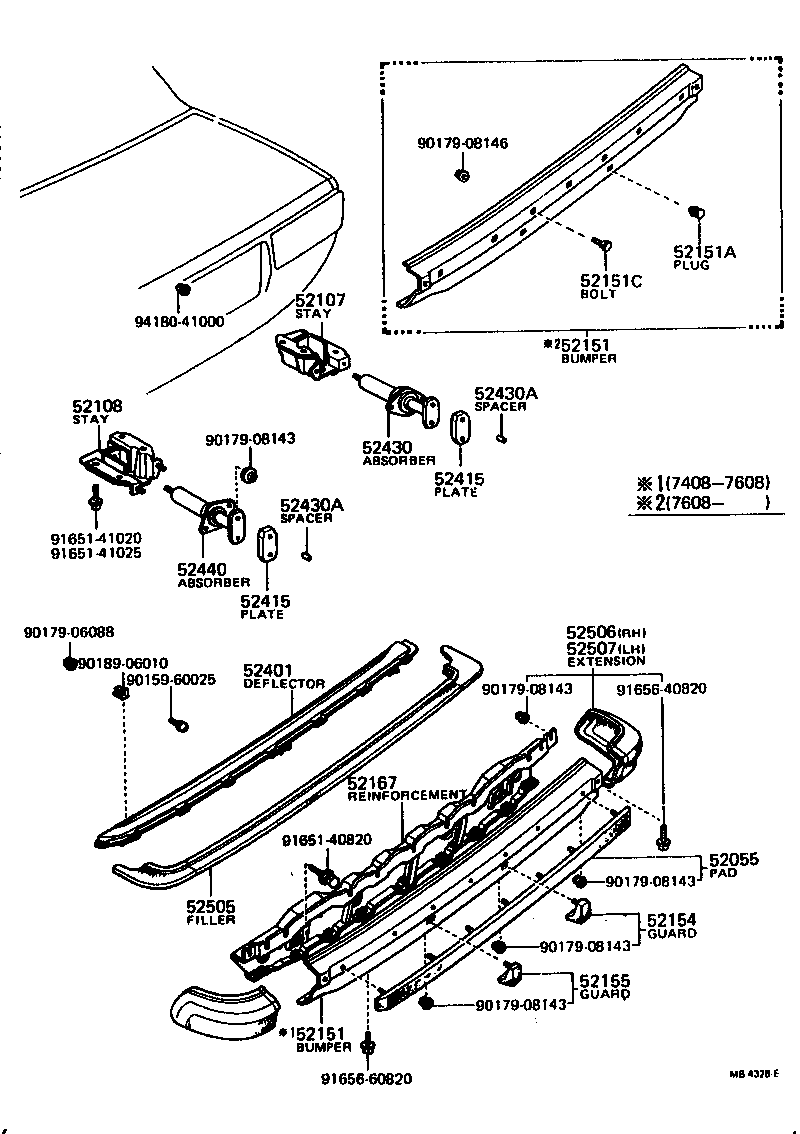

Click highlighted areas on diagram

diagram 52055 52107 52108 52151 52151 52151A 52151C 52154 52155 52167 52401 52415 52415 52430 52430A 52430A 52440 52505 52506 52507 9015960025 9017906088 9017908143 9017908143 9017908143 9017908143 9017908143 9017908146 9018906010 9165140820 9165141020 9165141025 9165640820 9165660820 9418041000
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-12020

KE3#,TE31,37,51..CP,HT,SED

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-12020

KE3#,TE31,37,51..CP,HT,SED

 1
52151 - BUMPER ASSY, REAR
52151-19326

KE30,TE31..SPL

BLACK

 1
52151-12130

KE3#,TE3#,51

CHROME PLATED

 1
52151 - BUMPER ASSY, REAR
52151-19326

KE30,TE31..SPL

BLACK

 1
52151-12130

KE3#,TE3#,51

CHROME PLATED

 1
52151A - PLUG, REAR BUMPER
90950-01253

KE30,TE31..SPL

BLACK

 2
90950-01237

KE30,TE31..SPL

DARK GRAY M.

 2
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08016

KE30,TE31..SPL

BLACK

 7
52167 - REINFORCEMENT, REAR BUMPER
52023-12010

KE3#,50,TE3#,51

 1
52401 - DEFLECTOR, REAR BUMPER STONE
58401-12010

KE3#,TE31,37

 1
52415 - PLATE, ABSORBER MOUNTING
52625-12010

KE3#,50,TE3#,51

 2
52415 - PLATE, ABSORBER MOUNTING
52625-12010

KE3#,50,TE3#,51

 2
52430 - ABSORBER, REAR BUMPER, RH
52650-12010

KE3#,TE31,37,51..CP,HT,SED

 1
52430A - SPACER, REAR BUMPER ABSORBER
90560-08421

KE3#,50,TE3#,51

 4
52430A - SPACER, REAR BUMPER ABSORBER
90560-08421

KE3#,50,TE3#,51

 4
52440 - ABSORBER, REAR BUMPER, LH
52660-12010

KE3#,TE31,37,51..CP,HT,SED

 1
52505 - FILLER SUB-ASSY, REAR BUMPER
52505-12010

KE3#,TE31,37

 1
52506 - EXTENSION SUB-ASSY, REAR BUMPER, RH
52106-19035

KE3#,TE3#

 1
52507 - EXTENSION SUB-ASSY, REAR BUMPER, LH
52107-19065

KE3#,TE3#

 1
Common parts
90159-60025
90179-06088
90179-08143
90179-08146
90189-06010
91651-40820
91651-41020
91651-41025
91656-40820
91656-60820
94180-41000
