KE30L-KBFA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7701)KE3#,TE3#

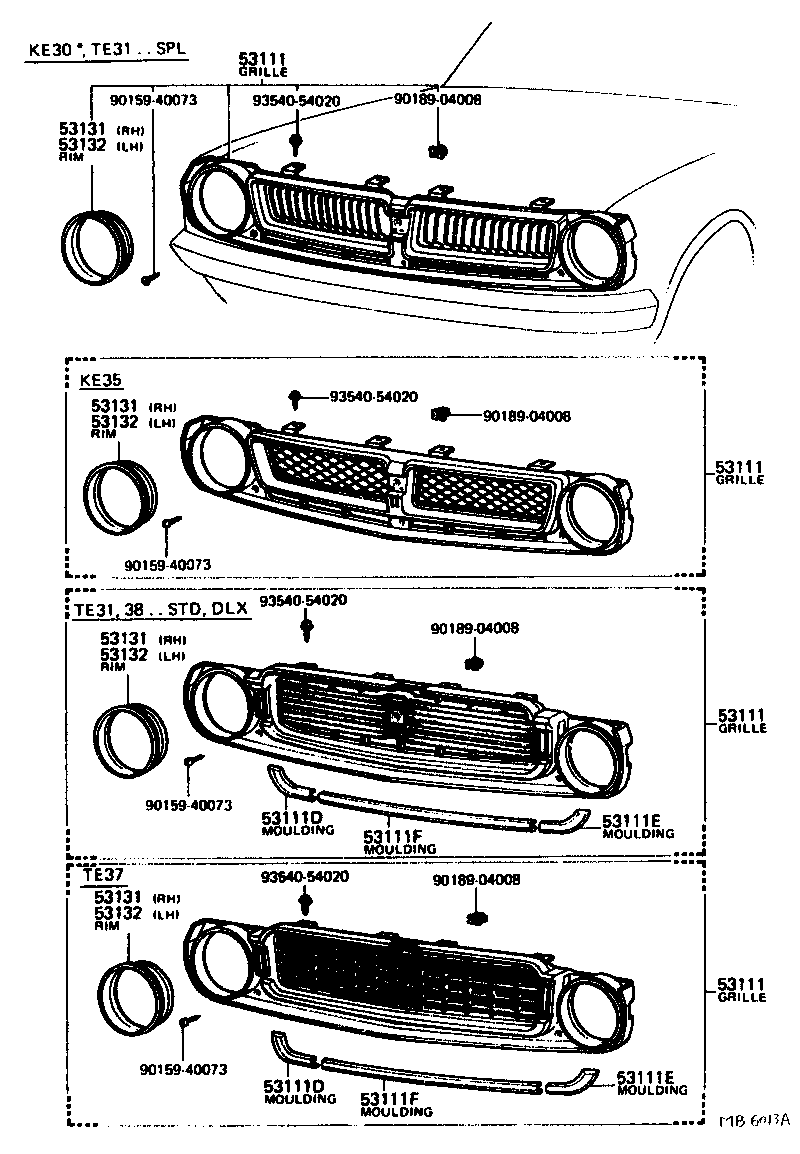

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| Common parts | ||||
| 90159-40073 | ||||
| 90189-04008 | ||||
| 93540-54020 | ||||
(7701-7908)KE3#,TE3#

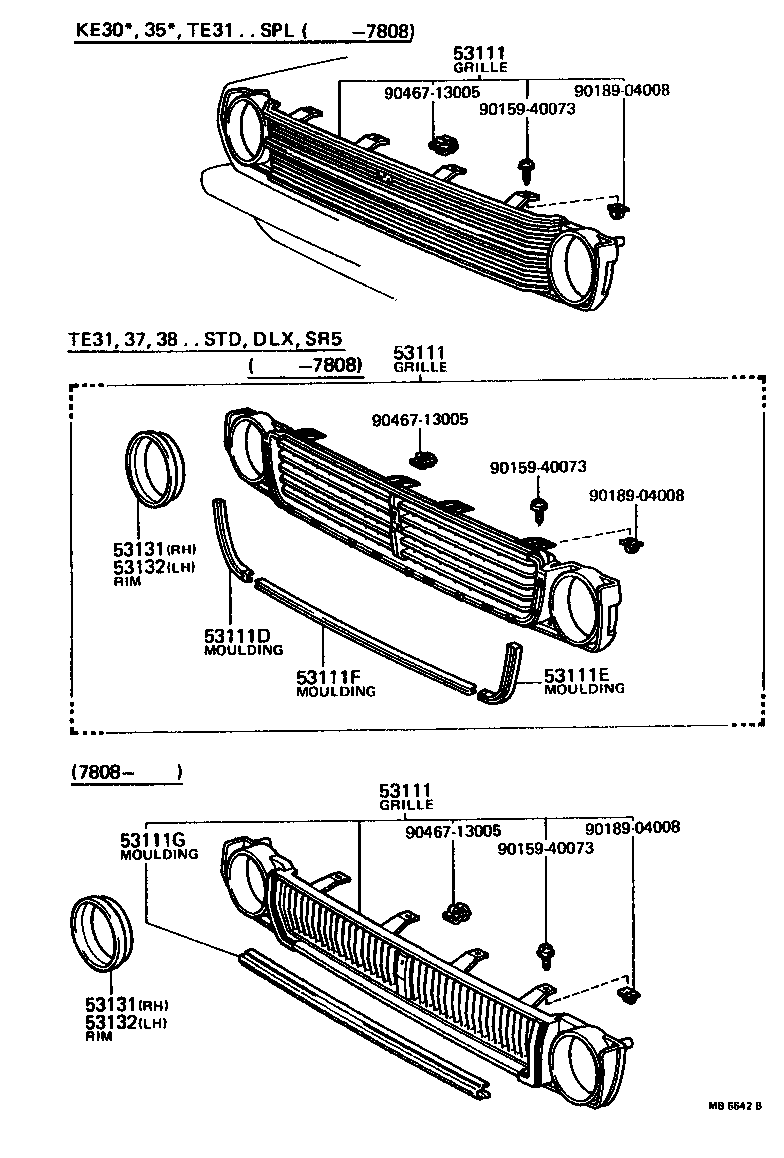

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19285 |
KE30 |
1 | ||
| 53101-19385 |
KE3#;TE31..SPL |
1 | ||
| 53100-12060 |
KE30,TE3# |
1 | ||
| 53111G - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 75512-12060 |
KE30,TE3# |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53131-12070 |
KE3#,TE3# |
1 | ||
| Common parts | ||||
| 90159-40073 | ||||
| 90189-04008 | ||||
| 90467-13005 | ||||
