KE30L-KBFA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)MTM

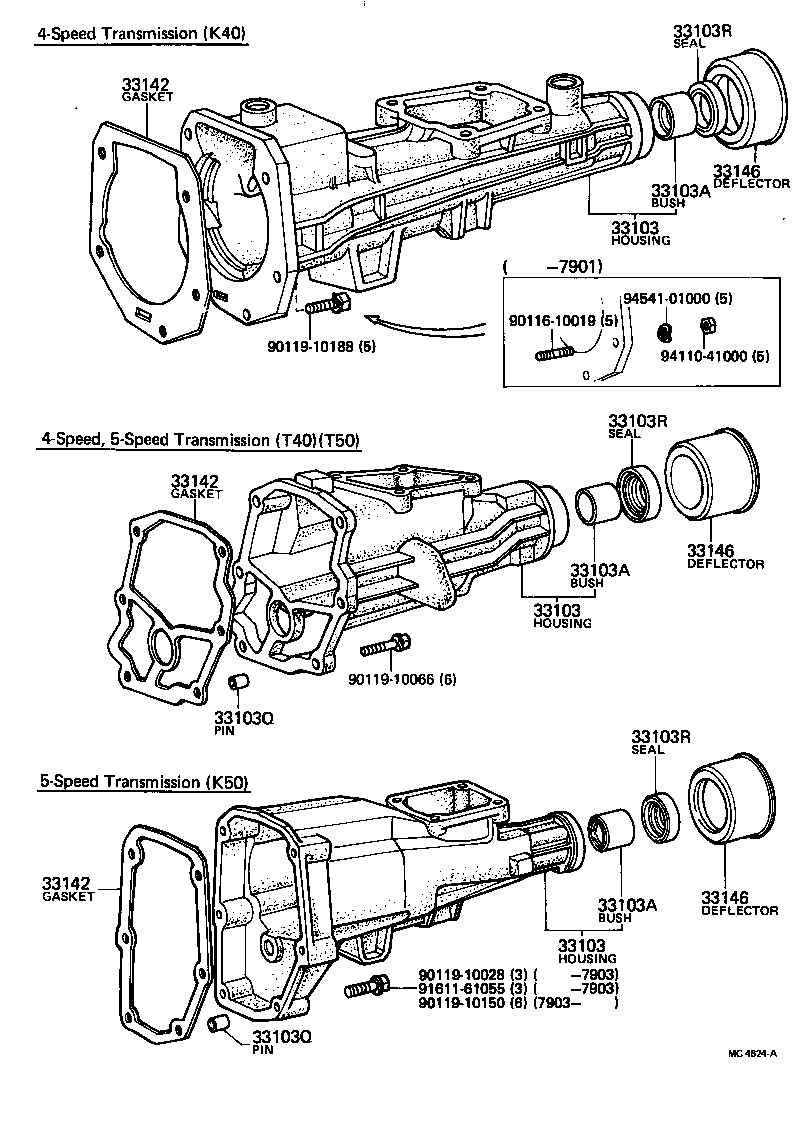

Click highlighted areas on diagram

diagram 33103 33103 33103 33103A 33103A 33103A 33103Q 33103Q 33103R 33103R 33103R 33142 33142 33142 33146 33146 33146 9011610019 9011910028 9011910066 9011910150 9011910188 9161161055 9411041000 9454101000
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-12050

KE3#,50..K40

 1
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-12050

KE3#,50..K40

 1
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-12050

KE3#,50..K40

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72022

KE3#,50..K40

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72022

KE3#,50..K40

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72022

KE3#,50..K40

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-32086

KE3#,50,TE3#,51..MTM

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-32086

KE3#,50,TE3#,51..MTM

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-32086

KE3#,50,TE3#,51..MTM

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-12020

KE3#,50..K40

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-12020

KE3#,50..K40

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-12020

KE3#,50..K40

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-12010

KE3#,50,TE3#,51..MTM

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-12010

KE3#,50,TE3#,51..MTM

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-12010

KE3#,50,TE3#,51..MTM

 1
Common parts
90116-10019
90119-10028
90119-10066
90119-10150
90119-10188
91611-61055
94110-41000
94541-01000
